HEATING TECHNIQUE

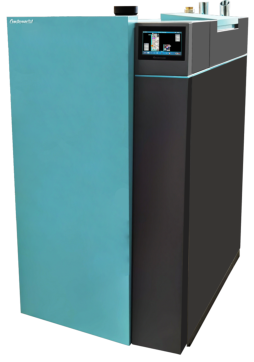

We present PelTec-Compact: a modern, compact, high-efficiency wood pellet boiler. A new boiler for a sustainable heating future. In a world where energy efficiency and environmental sustainability are increasingly im- portant, Centrometal, an innovative company in the field of heating, is proud to present its latest product PelTec-Compact, a high-efficiency compact wood pellet boiler. This pre- mium product sets a new standard in heating family homes by combining advanced tech- nology, superior performance and a commitment to reducing the carbon footprint.. PelTec-Compact, useful heat output 12, 18 and 24 kW is a compact boiler that uses wood pellets to provide exceptional heating efficiency for living house. This boiler is carefully en- gineered to offer not only high efficiency, but also to comply with environmentally con- scious practices.

SUITABLE FOR THE ENVIRONMENT

Low emission of harmful compounds in the flue gases.

EFFICIENT

High boiler efficiency and low maintenance requirements.

AUTOMATIC MAINTENANCE

Automatic cleaning of the burner grid and flue passages.

PRODUCT CHARACTERISTICS:

EXTENSIONS

Additional equipment for specific tasks (CM2K, room corrector etc..)

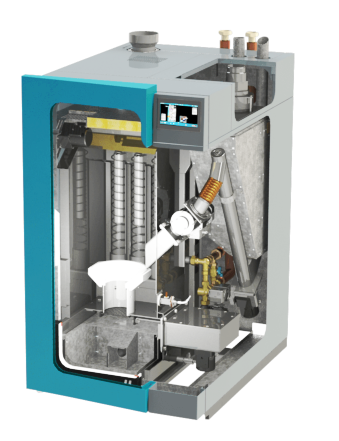

• High efficiency: PelTec-Compact has a high degree of efficiency, ensuring that the maximum amount of energy is extracted from each wood pellet. • Sustainable heating: by using wood pellets as a fuel source, PelTec-Compact pro- motes sustainability by relying on renewable sources. • Space-saving design: The compact design of PelTec-Compact makes it an ideal choice for homes with limited space. • Integration of modern technology: Equipped with modern digital controller, PelTec- Compact in the basic equipment ensures precise management of one heating circuit guided by the outdoor temperature and the sanitary water tank. These features can be easily extended by adding different modules. • Simple maintenance: The boiler is equipped with automatic cleaning of the grid and flue passages and ash removal into the ash tray, which only needs to be emptied as needed. • Reduced emissions: PelTec-Compact’s advanced combustion technology reduces flue gas emissions, making it a cleaner and more environmentally friendly heating solution compared to other traditional systems. • User-friendly interface: PelTec-Compact’s user interface is designed for effortless op- eration. With a user-friendly display and intuitive controls, homeowners can easily man- age the heating system either via the 7” color touch screen or via a web portal i.e. mobile phone, tablet, PC.

BASIC DIMENSIONS:

INTERNET SUPERVISION AND PelTec-Compact MANAGEMENT:

TECHNICAL INSTRUCTIONS / BROCHURES:

Technical instructions -

Boiler 12-24kW (PDF)

Pellet boiler PelTec-Compact 12-24kW

Centrometal BOILER CLASS

Remote access

Access with your smartphone, tablet, or computer. Read the value through an intuitive graphical interface.

Supervision

Displays the amount of pellets in the tank. Temperature monitoring, boiler online ignition and parameter change.

Connectivity options

Connecting to a home WiFi internet network.

Analytical data

History of temperature, graphs, error messages, warnings.

Detailed statistics

Detailed statistics on the operation of individual boiler elements.

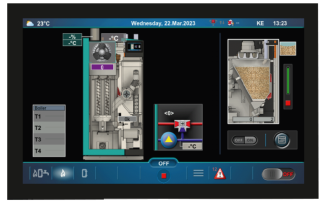

OUCH SENSITIVE SCREEN:

• Enables direct interaction with the content shown on the screen. • Easy operation of the boiler. • It can handle a one mixing heating circuit and the circuit of sanitary water.

Technical instructions -

Regulation (PDF)

PelTec-Compact 12-

24kW - FLYER (PDF)

*The internal diameter and height of the chimney must be strictly in line with the boiler's nominal capacity. It must comply with all national regulatory documents and manufacturer's recommendations.
Contact phone: +371 28818088, +371 29149923 E-mail: info@centrometal.lv Homepage: www.centrometal.lv

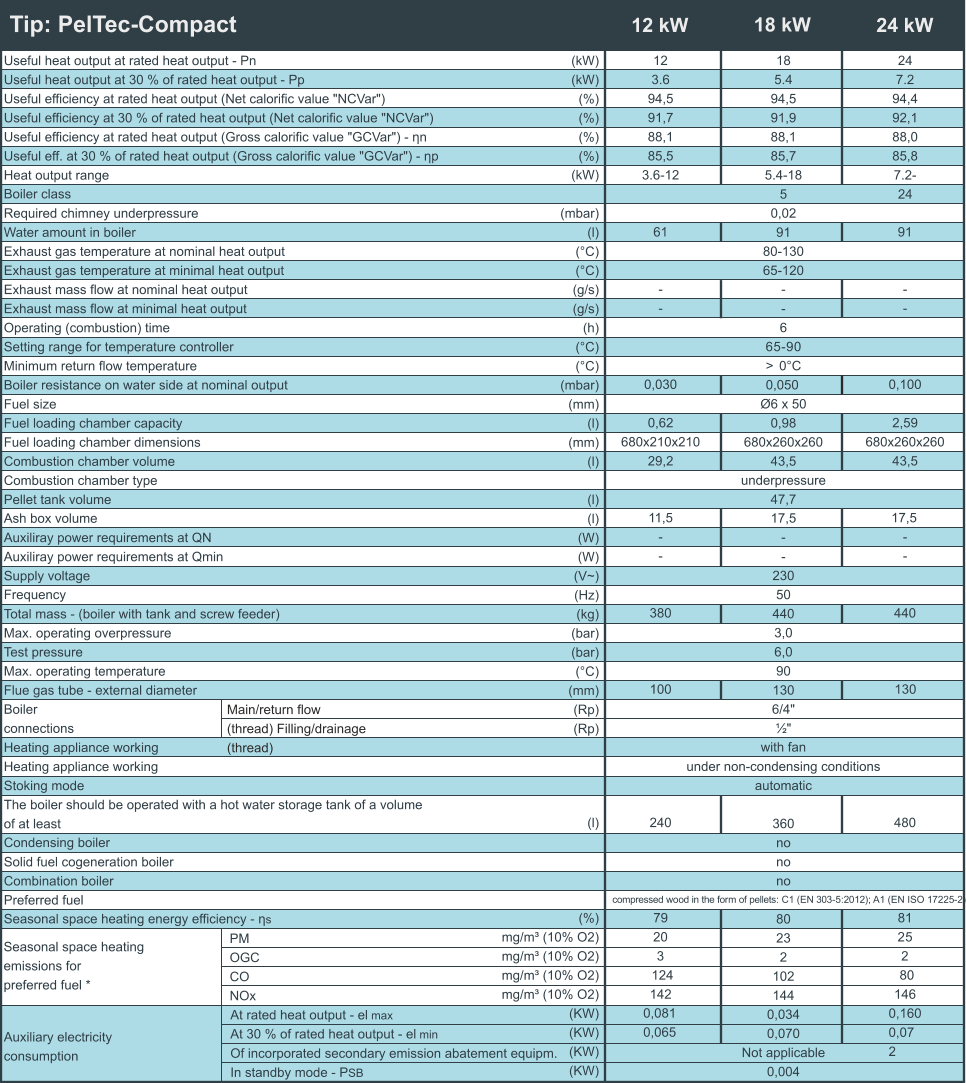

Tip: PelTec-Compact 12 kW18 kW24 kW Useful heat output at rated heat output - Pn Useful heat output at 30 % of rated heat output - Pp Useful efficiency at rated heat output (Net calorific value "NCVar") Useful efficiency at 30 % of rated heat output (Net calorific value "NCVar") Useful efficiency at rated heat output (Gross calorific value "GCVar") - ηn Useful eff. at 30 % of rated heat output (Gross calorific value "GCVar") - ηp Heat output range Boiler class Required chimney underpressure Water amount in boiler Exhaust gas temperature at nominal heat output Exhaust gas temperature at minimal heat output Exhaust mass flow at nominal heat output Exhaust mass flow at minimal heat output Operating (combustion) time Setting range for temperature controller Minimum return flow temperature Boiler resistance on water side at nominal output Fuel size Fuel loading chamber capacity Fuel loading chamber dimensions Combustion chamber volume Combustion chamber type Pellet tank volume Ash box volume Auxiliray power requirements at QN Auxiliray power requirements at Qmin Supply voltage Frequency Total mass - (boiler with tank and screw feeder) Max. operating overpressure Test pressure Max. operating temperature Flue gas tube - external diameter Boiler connections Heating appliance working Heating appliance working Stoking mode The boiler should be operated with a hot water storage tank of a volume of at least Condensing boiler Solid fuel cogeneration boiler Combination boiler Preferred fuel Seasonal space heating energy efficiency - ηs Auxiliary electricity consumption (kW) (kW) (%) (%) (%) (%) (kW) (mbar) (l) (°C) (°C) (g/s) (g/s) (h) (°C) (°C) (mbar) (mm) (l) (mm) (l) (l) (l) (W) (W) (V~) (Hz) (kg) (bar) (bar) (°C) (mm) (Rp) (Rp) (l) (%) mg/m³ (10% O2) mg/m³ (10% O2) mg/m³ (10% O2) mg/m³ (10% O2) (KW) (KW) (KW) (KW) Main/return flow (thread) Filling/drainage (thread) PM OGC CO NOx At rated heat output - el max At 30 % of rated heat output - el min Of incorporated secondary emission abatement equipm. In standby mode - PSB 18 5.4 94,5 91,9 88,1 85,7 5.4-18 5 0,02 91 80-130 65-120 - - 6 65-90 > 0°C 0,050 Ø6 x 50 0,98 680x260x260 43,5 underpressure 47,7 17,5 - - 230 50 440 3,0 6,0 90 130 6/4" ½" with fan under non-condensing conditions automatic 360 no no no 80 23 2 102 144 0,034 0,070 Not applicable 0,004 1224 3.67.2 94,4 92,1 88,0 85,8 7.2-24 6191 - - 0,100 2,59 680x260x260 43,5 117,5 - - 380440 100130 240480 7981 2025 32 12480 142146 0,160 0,072 compressed wood in the form of pellets: C1 (EN 303-5:2012); A1 (EN ISO 17225-2) 94,5 91,7 88,1 85,5 3.6-12 - - 0,030 0,62 680x210x210 29,2 1,5 - - 0,081 0,065 Seasonal space heating emissions for preferred fuel *
Contact phone: +371 28818088, +371 29149923 E-mail: info@centrometal.lv
HEATING TECHNIQUE
We present PelTec-Compact: a modern, compact, high-efficiency wood pellet boiler. A new boiler for a sustainable heating future. In a world where energy efficiency and environmental sustainabil- ity are increasingly important, Centrometal, an innovative com- pany in the field of heating, is proud to present its latest product PelTec-Compact, a high-efficiency compact wood pellet boiler. This premium product sets a new standard in heating family homes by combining advanced technology, superior performance and a commitment to reducing the carbon footprint.. PelTec-Compact, useful heat output 12, 18 and 24 kW is a com- pact boiler that uses wood pellets to provide exceptional heating efficiency for living house. This boiler is carefully engineered to offer not only high efficiency, but also to comply with environmen- tally conscious practices.
PRODUCT CHARACTERISTICS
BASIC DIMENSIONS:
TECHNICAL INSTRUCTIONS / BROCHURES:
INTERNET SUPERVISION AND PelTec-Compact MANAGEMENT:
Pellet boiler PelTec-Compact 12-24kW
Centrometal BOILER CLASS Centrometal eco design
Contact phone: +371 28818088, +371 29149923 E-mail: info@centrometal.lv Homepage: www.centrometal.lv
*The internal diameter and height of the chimney must be strictly in line with the boiler's nominal capacity. It must comply with all national regulatory documents and manufacturer's recommendations.

SUITABLE FOR THE ENVIRONMENT

Low emission of harmful compounds in the flue gases.

EFFICIENT

High boiler efficiency and low maintenance requirements.

AUTOMATIC MAINTENANCE

Automatic cleaning of the burner grid and flue passages.

EXTENSIONS

Additional equipment for specific tasks (CM2K, room corrector etc..)
• High efficiency: PelTec-Compact has a high degree of effi- ciency, ensuring that the maximum amount of energy is ex- tracted from each wood pellet. • Sustainable heating: by using wood pellets as a fuel source, PelTec-Compact promotes sustainability by relying on renew- able sources. • Space-saving design: The compact design of PelTec- Compact makes it an ideal choice for homes with limited space. • Integration of modern technology: Equipped with modern digital controller, PelTec-Compact in the basic equipment en- sures precise management of one heating circuit guided by the outdoor temperature and the sanitary water tank. These features can be easily extended by adding different modules. • Simple maintenance: The boiler is equipped with automatic cleaning of the grid and flue passages and ash removal into the ash tray, which only needs to be emptied as needed. • Reduced emissions: PelTec-Compact’s advanced combus- tion technology reduces flue gas emissions, making it a cleaner and more environmentally friendly heating solution compared to other traditional systems. • User-friendly interface: PelTec-Compact’s user interface is designed for effortless operation. With a user-friendly display and intuitive controls, homeowners can easily manage the heating system either via the 7” color touch screen or via a web portal i.e. mobile phone, tablet, PC.

Remote access

Access with your smartphone, tablet, or computer. Read the value through an intuitive graphical interface.

Supervision

Displays the amount of pellets in the tank. Temperature monitoring, boiler online ignition and parameter change.

Connectivity options

Connecting to a home WiFi internet network.

Analytical data

History of temperature, graphs, error messages, warnings.

Detailed statistics

Detailed statistics on the operation of individual boiler elements.
• Enables direct interaction with the content shown on the screen. • Easy operation of the boiler. • It can handle a one mixing heating circuit and the circuit of sani- tary water.
OUCH SENSITIVE SCREEN:

Technical instructions -

Boiler 12-24kW (PDF)

Technical instructions -

Regulation (PDF)

PelTec-Compact 12-

24kW - FLYER (PDF)

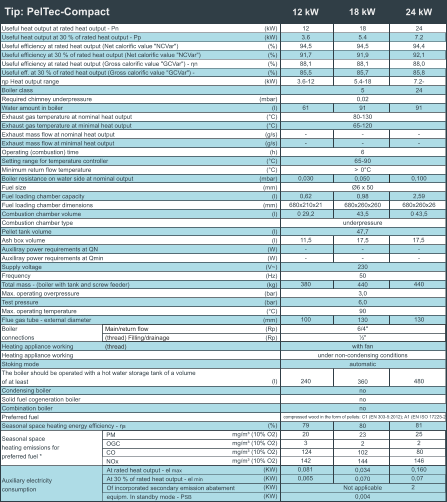

Tip: PelTec-Compact 12 kW18 kW24 kW Useful heat output at rated heat output - Pn Useful heat output at 30 % of rated heat output - Pp Useful efficiency at rated heat output (Net calorific value "NCVar") Useful efficiency at 30 % of rated heat output (Net calorific value "NCVar") Useful efficiency at rated heat output (Gross calorific value "GCVar") - ηn Useful eff. at 30 % of rated heat output (Gross calorific value "GCVar") - ηp Heat output range Boiler class Required chimney underpressure Water amount in boiler Exhaust gas temperature at nominal heat output Exhaust gas temperature at minimal heat output Exhaust mass flow at nominal heat output Exhaust mass flow at minimal heat output Operating (combustion) time Setting range for temperature controller Minimum return flow temperature Boiler resistance on water side at nominal output Fuel size Fuel loading chamber capacity Fuel loading chamber dimensions Combustion chamber volume Combustion chamber type Pellet tank volume Ash box volume Auxiliray power requirements at QN Auxiliray power requirements at Qmin Supply voltage Frequency Total mass - (boiler with tank and screw feeder) Max. operating overpressure Test pressure Max. operating temperature Flue gas tube - external diameter Boiler connections Heating appliance working Heating appliance working Stoking mode The boiler should be operated with a hot water storage tank of a volume of at least Condensing boiler Solid fuel cogeneration boiler Combination boiler Preferred fuel Seasonal space heating energy efficiency - ηs Auxiliary electricity consumption (kW) (kW) (%) (%) (%) (%) (kW) (mbar) (l) (°C) (°C) (g/s) (g/s) (h) (°C) (°C) (mbar) (mm) (l) (mm) (l) (l) (l) (W) (W) (V~) (Hz) (kg) (bar) (bar) (°C) (mm) (Rp) (Rp) (l) (%) mg/m³ (10% O2) mg/m³ (10% O2) mg/m³ (10% O2) mg/m³ (10% O2) (KW) (KW) (KW) (KW) Main/return flow (thread) Filling/drainage (thread) PM OGC CO NOx At rated heat output - el max At 30 % of rated heat output - el min Of incorporated secondary emission abatement equipm. In standby mode - PSB 18 5.4 94,5 91,9 88,1 85,7 5.4-18 5 0,02 91 80-130 65-120 - - 6 65-90 > 0°C 0,050 Ø6 x 50 0,98 680x260x260 43,5 underpressure 47,7 17,5 - - 230 50 440 3,0 6,0 90 130 6/4" ½" with fan under non-condensing conditions automatic 360 no no no 80 23 2 102 144 0,034 0,070 Not applicable 0,004 1224 3.67.2 94,4 92,1 88,0 85,8 7.2-24 6191 - - 0,100 2,59 680x260x260 43,5 117,5 - - 380440 100130 240480 7981 2025 32 12480 142146 0,160 0,072 compressed wood in the form of pellets: C1 (EN 303-5:2012); A1 (EN ISO 17225-2) 94,5 91,7 88,1 85,5 3.6-12 - - 0,030 0,62 680x210x210 29,2 1,5 - - 0,081 0,065 Seasonal space heating emissions for preferred fuel *
