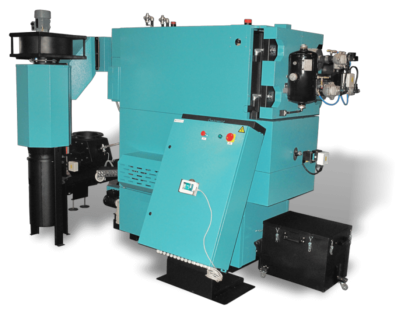

Steel
hot
water
boilers
EKO-CKS
Multi
Plus
with
170
–
580
kW
heat
output
designed
to
be
fired
by
wood
chips
and
wood
pellets.
They
can
be
installed
in
both
closed
and
open
central
heating
systems
in
medium
and
large
facilities.
•
Automatic
operation
of
these
systems
provides
the
user
with
enviable
comfort
and
makes
the
system
suitable
for
wide
application.
Boilers
are
equipped
with
a
moving
grate
for
fuel
burning,
a
lambda
probe,
an
automatic
fuel
feeding
system,
automatic
ignition,
thermal
protection,
automatic
ash
removal
from
the
combustion
chamber
and
cyclone
to
extricate
particles
from
flue gasses.
•
They
are
distinguished
by
a
successful
combination
of
modern
technologies
and
quality
construction
materials
s
well
as
simplicity
of
installation
and
use.
Proven technical solutions make these boilers safe and reliable in operation.
PRODUCT CHARACTERISTIC:
Boiler class 5.
•
They are designed to be powered by P16A/P16B – P45A, M35 (G30-G50, W35) class wood chips and E
ENplus A1 and A2 class wood pellets.
•
They can be installed in both closed and open central heating systems.
•
After
a
change
in
type,
size
or
moist
content
of
the
fuel
it
is
necessary
to
adjust
the
settings
of
the
system.
There
is
an
option
of
pre-
adjusting the parameters for some fuel types.
•
Required power supplies: 380/400 V.
The boilers are equipped with:
•
Digital
boiler
control
with
a
touch
screen
display
which
controls
the
operations
of
the
boiler,
fuel
supply
transporter
and
has
an
option to control up to two additional fuel transporters and a mixer in fuel storage.
•
Moving grate for fuel combustion.
•
Lambda probe.
•
Automatic fuel supply to burner by means of screw transporter, automatic ignition and automatic ash removal from the boiler.
•
Flue gas extraction fan and cyclone for flue gas particles extrication.
•
Flue
gas
tube
turbulators,
thermal
protection
against
overheating,
protection
against
backfire
into
the
fuel
storage
(backfilling
sensor,
flap)
SUITABLE FOR THE ENVIRONMENT

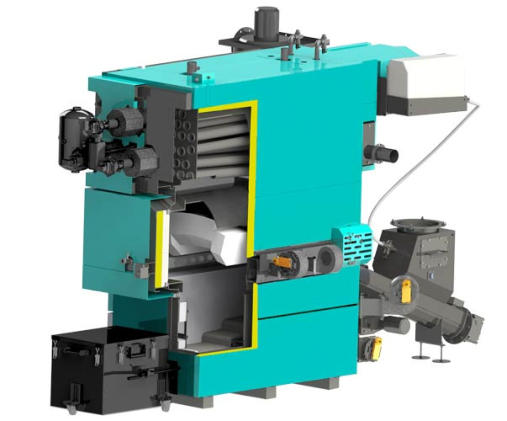

Serialized built-in cyclone for separating particles from flue gases.ECOLOGICAL ENERGY SOURCE
Designed for wood chips and wooden pellets.AUTOMATION
The automatic operation of these systems provides the user with enviable comfort and makes these systems suitable for wide application.ACCESSORIES
Various accessories for specific applications: CM2K, CMNET (cascade manager), CAL, CM-GSM (alarm alert and boiler ignition / boiler via SMS) etc.

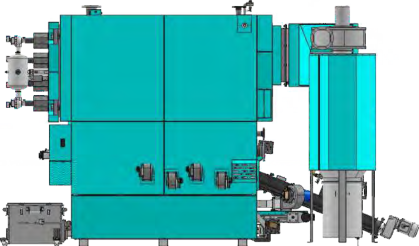

BASIC DIMENSIONS:
Body of the boiler with burner with moving grate and thermal insulation
Supply screw transporter of fuel to boiler with a port for connecting supply transporter 2, protection against backfire and overfilling sensor
Ports for thermal protection of the boiler
Cyclone with ash box (can be installed on left or right side)
Cyclone fan
Automatic ash extraction system with ash boxes (screw conveyor)
Electric box with digital boiler controller
Control unit
System for automatic cleaning of flue gas pipes (pneumatic) (additional equipment)
B A
1
6
9
4
2
7
5
3
EKO-CKS Multi Plus
170
250
340
450
580
Nominal heat output
Heat output range
Inlet/Outlet
Max. working temperature
Max. working pressure
Total depth A
Total width B
Total height C
kW
kW
R/DN
°C
bar
mm
mm
mm
170
51-170
2”
95
4
3885
2010
2270
250
75-250
80
95
4
3885
2170
2520
340
102-340
80
95
4
4235
2260
2520
450
135-450
100
95
4
4720
2555
2595
580
174-580
100
95
4
4720
2655
2775
8

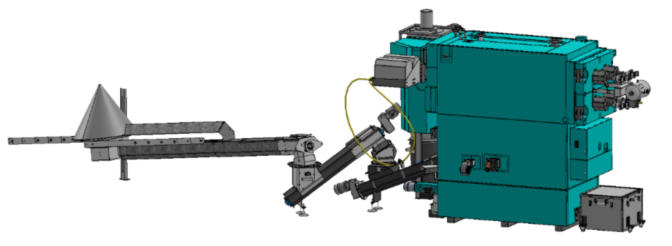

Wood chip feeding systems from a storage – room (enclosed space):
These systems are designed for wood chip and pellet transfer (max. moisture content up to 35 %) from a storage room to the firing equipment
EKO-CKS Multi, EKO-CKS Multi Plus. They are equipped with a rotating plate with springs for wood chip mixing (Ø 1,2 - 5m) connected to a
screw transporter (2,5-8m) which is driven by an electric motor with gearbox. The system is operated by the digital control of the boiler in its
standard configuration.
•
Body of the boiler with burner and retort
•
Supply fuel screw transporter into the boiler with a connection for
an external supply fuel transporter, return flame protection and
backfilling sensor
•
Steel casing with thermal insulation
•
Cyclone with an ash box
•
Cyclone fan
•
Automatic ash removal system with ash box (screw conveyor)
•
Electrical distribution panel with digital boiler controller
•
Control unit
DELIVERY AND ADDITIONAL EQUIPMENT:
Basic delivery
Additional equipment
•
System for automatic cleaning of the flue gas
pipes (pneumatic)
•
CM2K (module for steering 2 heating circuits
using outdoor temperature, max. 4 x CM2K),
CMNET (cascade manager), CAL (light and
sound alarm), CM-GSM (alarm message and
boiler start/stop by SMS).
•
Wifi module
•
Connecting screw transporter between the tank
transporter and boiler transporter

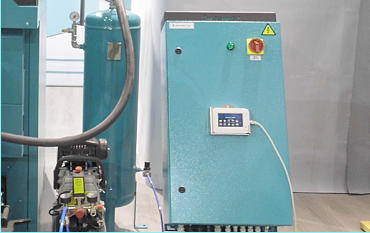

Electrical panel disconnected from the boiler to
facilitate the organization of space in the boiler
room.

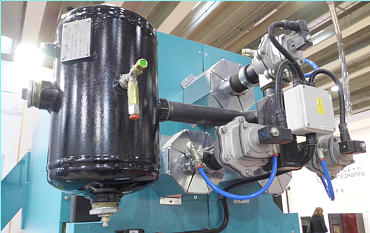

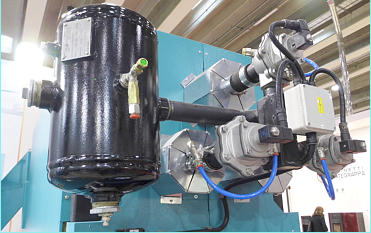

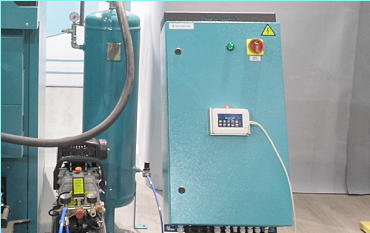

Compressed air tank for automatic cleaning.
Automatic cleaning of the heat exchanger
through the compactor to reduce end-user
cleaning.

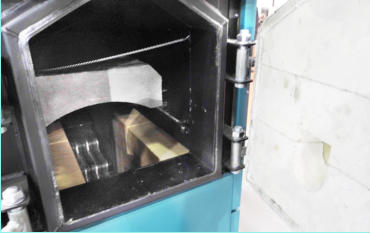

Combustion chamber covered with refractory
material and equipped with a moving grate that
allows the perfect combustion.

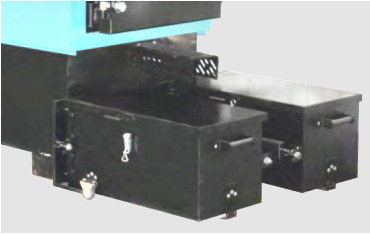

Ash drawer.

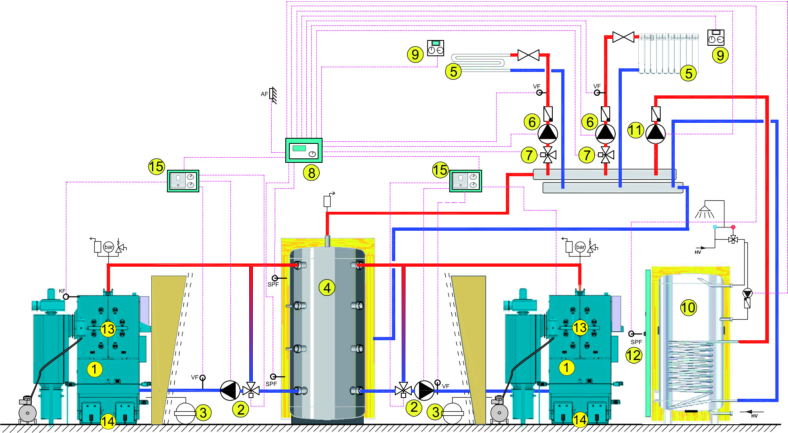

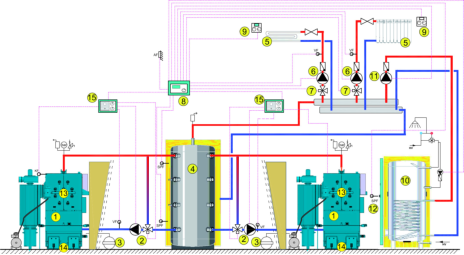

STANDART HYDRAULIC SCHEMA:
Cascade connection of 2xEKO-CKS Multi
1. Multi fuel boiler EKO-CKS Multi (160-580kW)
2. 3-way mixing valve with motor + pump
3. Expansion vessel
4. Accumulation tank CAS (min 15 l/kW)
5. Heating circuit
6. Circulation pump
7. 3-way mixing valve with actuator
8. Cascade manager
9. Corrector
10. Sanitary water heater
11. DHW pump
12. DHW sensor
13. Automatic pneumatic boiler heat exchanger cleaning
14. Automatic ash removing system
15. Boiler regulation

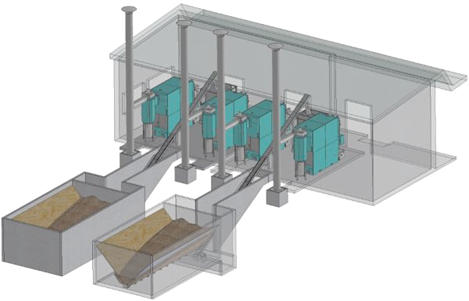

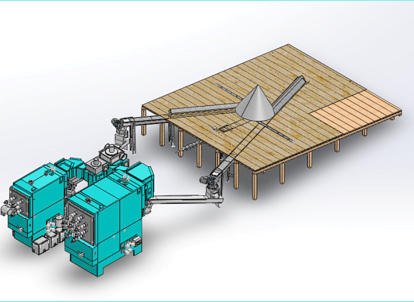

Different combination and control system flexibility allows to use they in medium and large facilities
Contact phone: +371 28818088, +371 29149923
E-mail: info@centrometal.lv
Homepage: www.centrometal.lv

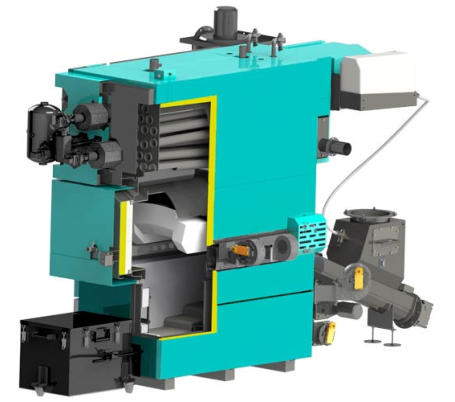

Wood chips boilers EKO-CKS Multi Plus 170-580kW
•
Steel
hot
water
boilers
EKO-CKS
Multi
Plus
with
170
–
580
kW
heat
output
designed
to
be
fired
by
wood
chips
and
wood
pellets.
They
can
be
installed
in
both
closed
and
open
central
heating systems in medium and large facilities.
•
Automatic
operation
of
these
systems
provides
the
user
with
enviable
comfort
and
makes
the
system
suitable
for
wide
application.
Boilers
are
equipped
with
a
moving
grate
for
fuel
burning,
a
lambda
probe,
an
automatic
fuel
feeding
system,
automatic
ignition,
thermal
protection,
automatic
ash
removal
from
the
combustion
chamber
and
cyclone
to
extricate
particles
from flue gasses.
•
They
are
distinguished
by
a
successful
combination
of
modern
technologies
and
quality
construction
materials
s
well
as
simplicity
of
installation
and
use.
Proven
technical
solutions
make these boilers safe and reliable in operation.
PRODUCT CHARACTERISTIC:
Boiler class 5.
•
They
are
designed
to
be
powered
by
P16A/P16B
–
P45A,
M35 (G30-G50, W35) class wood chips and E
ENplus A1 and A2 class wood pellets.
•
They
can
be
installed
in
both
closed
and
open
central
heating systems.
•
After
a
change
in
type,
size
or
moist
content
of
the
fuel
it
is
necessary
to
adjust
the
settings
of
the
system.
There
is
an
option of pre-adjusting the parameters for some fuel types.
•
Required power supplies: 380/400 V.
The boilers are equipped with:
•
Digital
boiler
control
with
a
touch
screen
display
which
controls
the
operations
of
the
boiler,
fuel
supply
transporter
and
has
an
option
to
control
up
to
two
additional fuel transporters and a mixer in fuel storage.
•
Moving grate for fuel combustion.
•
Lambda probe.
•
Automatic
fuel
supply
to
burner
by
means
of
screw
transporter,
automatic
ignition
and
automatic
ash
removal
from the boiler.
•
Flue
gas
extraction
fan
and
cyclone
for
flue
gas
particles
extrication.
•
Flue
gas
tube
turbulators,
thermal
protection
against
overheating,
protection
against
backfire
into
the
fuel
storage (backfilling sensor, flap)
SUITABLE FOR THE ENVIRONMENT
Serialized built-in cyclone for separating particles
from flue gases.
ECOLOGICAL ENERGY SOURCE
Designed for wood chips and wooden pellets.
AUTOMATION
The automatic operation of these systems provides
the user with enviable comfort and makes these
systems suitable for wide application.
ACCESSORIES
Various accessories for specific applications:
CM2K, CMNET (cascade manager), CAL, CM-
GSM (alarm alert and boiler ignition / boiler via
SMS) etc.

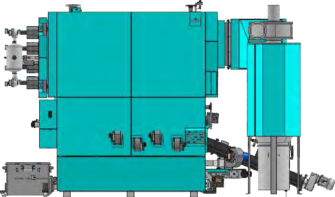

BASIC DIMENSIONS:
Body of the boiler with burner with moving grate and thermal
insulation
Supply screw transporter of fuel to boiler with a port for
connecting supply transporter 2, protection against backfire
and overfilling sensor
Ports for thermal protection of the boiler
Cyclone with ash box (can be installed on left or right side)
Cyclone fan
Automatic ash extraction system with ash boxes (screw
conveyor)
Electric box with digital boiler controller
Control unit
System for automatic cleaning of flue gas pipes (pneumatic)
(additional equipment)
B
1
6
9
4
2
7
5
3
EKO-CKS Multi Plus
170
250
340
450
580
Nominal heat output
Heat output range
Inlet/Outlet
Max. working temperature
Max. working pressure
Total depth A
Total width B
Total height C
kW
kW
R/DN
°C
bar
mm
mm
mm
170
51-170
2”
95
4
3885
2010
2270
250
75-250
80
95
4
3885
2170
2520
340
102-340
80
95
4
4235
2260
2520
450
135-450
100
95
4
4720
2555
2595
580
174-580
100
95
4
4720
2655
2775
8
Wood chip feeding systems from a storage – room
(enclosed space):
These systems are designed for wood chip and pellet transfer
(max. moisture content up to 35 %) from a storage room to the
firing equipment EKO-CKS Multi, EKO-CKS Multi Plus. They are
equipped with a rotating plate with springs for wood chip mixing (Ø
1,2 - 5m) connected to a screw transporter (2,5-8m) which is
driven by an electric motor with gearbox. The system is operated
by the digital control of the boiler in its standard configuration.
•
Body of the boiler with burner and retort
•
Supply fuel screw transporter into the boiler with a
connection for an external supply fuel transporter,
return flame protection and backfilling sensor
•
Steel casing with thermal insulation
•
Cyclone with an ash box
•
Cyclone fan
•
Automatic ash removal system with ash box (screw
conveyor)
•
Electrical distribution panel with digital boiler controller
•
Control unit
DELIVERY AND ADDITIONAL EQUIPMENT:
•
System for automatic cleaning of the flue gas pipes
(pneumatic)
•
CM2K (module for steering 2 heating circuits using
outdoor temperature, max. 4 x CM2K), CMNET
(cascade manager), CAL (light and sound alarm), CM-
GSM (alarm message and boiler start/stop by SMS).
•
Wifi module
•
Connecting screw transporter between the tank
transporter and boiler transporter
Electrical panel disconnected from the boiler to
facilitate the organization of space in the boiler
room.
Compressed air tank for automatic cleaning.
Automatic cleaning of the heat exchanger
through the compactor to reduce end-user
cleaning.
Combustion chamber covered with refractory
material and equipped with a moving grate that
allows the perfect combustion.
Ash drawer.
STANDART HYDRAULIC SCHEMA:
Cascade connection of 2xEKO-CKS Multi
1. Multi fuel boiler EKO-CKS Multi (160-580kW)
2. 3-way mixing valve with motor + pump
3. Expansion vessel
4. Accumulation tank CAS (min 15 l/kW)
5. Heating circuit
6. Circulation pump
7. 3-way mixing valve with actuator
8. Cascade manager
9. Corrector
10. Sanitary water heater
11. DHW pump
12. DHW sensor
13. Automatic pneumatic boiler heat exchanger cleaning
14. Automatic ash removing system
15. Boiler regulation
Different combination and control system flexibility al-
lows to use they in medium and large facilities
Contact phone: +371 28818088, +371 29149923
E-mail: info@centrometal.lv
HEATING TECHNIQUE
Wood chips boilers EKO-
CKS Multi Plus 170-580kW
A
Basic delivery
Additional equipment
Contact phone: +371 28818088, +371 29149923
E-mail: info@centrometal.lv
Homepage: www.centrometal.lv
*The internal diameter and height of the chimney must be strictly in
line with the boiler's nominal capacity. It must comply with all
national regulatory documents and manufacturer's
recommendations.
