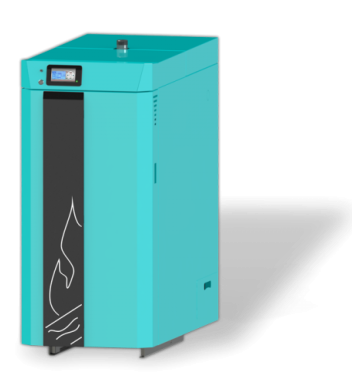

Wood heating boilers BioTec-C (25/35/45 kW)
BioTec-C steel hot water boilers (with nominal heat output of 25 to 45 kW) are designed
for wood log fuel firing for the heating of small and middle sized premises. The wood
gasification principle enables a complete fuel burning. Logs up to 550 mm long can be
inserted into the large combustion chamber. The burning period for a single fill of logs is
at least 4 hours at the rated output and can be extended to a whole day if the need for
heating is less.
The boiler can keep the glow even 8 hours, which means that in this period it is not
necessary to fire up the boiler in order to keep the heating process. Boiler operation is
managed with inbuilt boiler control unit using the boiler temperature sensor and
changing the rpm’s of underpressure fan on flue gases outlet from boiler. Boiler is
connected to the central heating system through a 3-way thermostat valve accumulation
(buffer) tank (like CAS, CAS B, CAS S, CAS BS).
The boiler is tested and certified according to the European standard EN 303-5:2012
and meets class 5. It is manufactured in compliance with ISO 9001/2008 and ISO
14001/2004 standard and meet the requirements for ECO design (commission (EU)
2015/1189)
HEATING TECHNIQUE
Economical
Pyrolytic combustion makes it possible to use more than 85%, which saves considerably compared to classic wood boilers.PRODUCT CHARACTERISTICS:
WiFi READY
Digital boiler control supports Internet monitoring and control of boiler operation via the internet portal.One charge per day
The duration of a single charge is at least 4 hours full power with the possibility of prolonging the entire day if the need for heating is reduced.Large size wood
Large firebox allows wood to burn up to half a meter long.
Nominal heat output
Ø(mm)
R
R
Filling/Draining
lue gases temperature
Max. operating temperature
R
25
Max. operating pressure
Boiler dimensions (A*C*B)
34
°C
°C
bar
mm
150/775
6/4"
6/4"
3/4"
130
90
2,5
1400*1330*585
160/800
6/4"
6/4"
3/4"
130
90
2,5
1370*1370*700
kW
45
180/1270
6/4"
6/4"
3/4"
130
90
2,5
1385*1565*700
*Chimney diameter/height
Boiler water inlet
Boiler water outlet
45
34
25
Boiler regulation;
Boiler water inlet;
Fan with electric motor;
Flue gas exhaust;
Boiler water outlet;
Lever for cleaning flue gas tubes;
Place for mounting the thermal valve;
Side opening for cleaning the smoke
chamber.
Max. wood piece length
Wood storage
mm
lit.
450-550
90
450-550
144
450-550
Boiler water content
lit.
115
Boiler mass
kg
519
606
677
130
176
150
Total boiler depth (H)
mm
775
800
1270
BioTec-C 25-45kW
•
It is delivered pre-wired with the built-in boiler control unit to control the boiler.
•
The built-in boiler control with the colour touch screen manages the boiler operation using the lambda probe, temperature sensor in the boiler
combustion chamber, boiler sensor, motor for the management of primary and secondary air intake and changing the rpms of underpressure
fan on the flue gases outlet from the boiler.
•
Possible upgrade of the GSM alarm and the module for steering up to max.8 heating circuits via mixing valves to the outside or room
temperature (additional equipment).
•
In addition to the operation of the boiler, the boiler pump and the return flow (through the 3-way mixing valve and the return sensor), the
control unit can manage the filling of the accumulation tank and heating of the domestic hot water tank (DHW sensor) (sensor + pump).
•
Easy transportation and leveling by 4 adjustable legs of the boiler.
•
The boiler is tested and certified according to EN 303-5: 2012 and meets Class 5. It is manufactured in accordance with ISO 9001 and ISO
14001 standard.

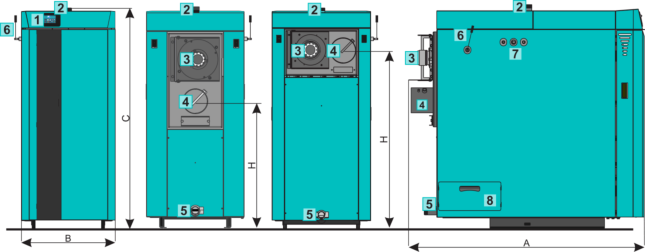

BASIC DIMENSIONS:
Obligatory additional equipment:
– accumulation tank for heating system (CAS (minimum 30 lit/kw boiler
power)), 3-way thermostat valve, like ESBE LTC 141; (closed heating
system) – thermal safety valve, safety-airvent group (2,5 bar) and
expansion vessel; (open heating system )
– open expansion vessel.
•
Boiler Class 5.
•
Meet the requirements for ECO design (COMMISSION (EU)
2015/1189).
•
Hot water boiler for central heating systems is engineered for wood log
firing of the moisture content under 25% (min 1 year long air dried
wood).
•
The wood gasification principle enables total burning of the fuel,
reducing the cleaning of the boiler to minimum (depends on wood
quality and nominal boiler load).
•
The design and construction, including the wood gasification principle
of complete burning assures high efficiency and makes the boiler
extremely economical.
•
It is environmentally friendly because of extremely low concentration of
harmful components in flue gases.
•
Three doors and the combustion chamber enable loading with large
logs as well as very simple cleaning and maintenance.
•
It is engineered for installation in open or closed central heating
systems only through accumulation tanks (CAS), volume min. 50l/kW
and a 3-way thermal valve at 60°C.

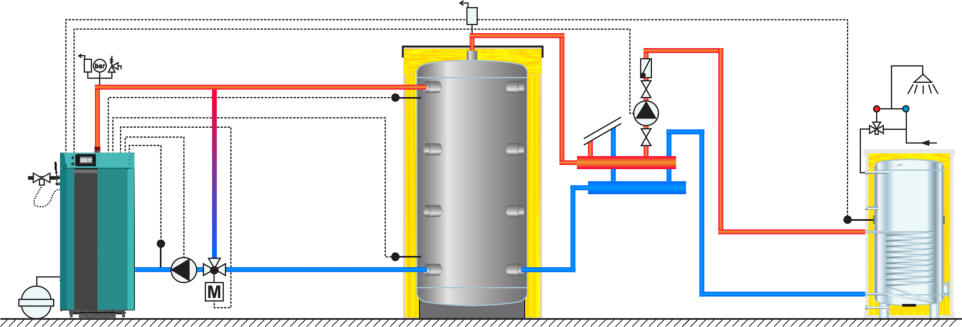

NSTALLATION EXAMPLE:
*The internal diameter and height of the chimney must be strictly in line with the
boiler's nominal capacity. It must comply with all national regulatory documents
and manufacturer's recommendations.
Contact phone: +371 28818088, +371 29149923
E-mail: info@centrometal.lv
Homepage: www.centrometal.lv
BioTec-C 25-34
BioTec-C 45
Wood heating boilers BioTec-
C (25/35/45 kW)
Contact phone: +371 28818088, +371 29149923
E-mail: info@centrometal.lv
HEATING TECHNIQUE
BioTec-C steel hot water boilers (with nominal heat output of 25
to 45 kW) are designed for wood log fuel firing for the heating of
small and middle sized premises. The wood gasification principle
enables a complete fuel burning. Logs up to 550 mm long can be
inserted into the large combustion chamber. The burning period
for a single fill of logs is at least 4 hours at the rated output and
can be extended to a whole day if the need for heating is less.
The boiler can keep the glow even 8 hours, which means that in
this period it is not necessary to fire up the boiler in order to keep
the heating process. Boiler operation is managed with inbuilt boiler
control unit using the boiler temperature sensor and changing the
rpm’s of underpressure fan on flue gases outlet from boiler. Boiler
is connected to the central heating system through a 3-way
thermostat valve accumulation (buffer) tank (like CAS, CAS B,
CAS S, CAS BS).
The boiler is tested and certified according to the European
standard EN 303-5:2012 and meets class 5. It is manufactured in
compliance with ISO 9001/2008 and ISO 14001/2004 standard
and meet the requirements for ECO design (commission (EU)
2015/1189)
Economical
Pyrolytic combustion makes it possible to use more than 85%, which saves considerably compared to classic wood boilers.PRODUCT CHARACTERISTICS:
WiFi READY
Digital boiler control supports Internet monitoring and control of boiler operation via the internet portal.One charge per day
The duration of a single charge is at least 4 hours full power with the possibility of prolonging the entire day if the need for heating is reduced.Large size wood
Large firebox allows wood to burn up to half a meter long.
•
Boiler Class 5.
•
Meet
the
requirements
for
ECO
design
(COMMISSION
(EU)
2015/1189).
•
Hot
water
boiler
for
central
heating
systems
is
engineered
for
wood
log
firing
of
the
moisture
content
under
25%
(min
1
year
long air dried wood).
•
The
wood
gasification
principle
enables
total
burning
of
the
fuel,
reducing
the
cleaning
of
the
boiler
to
minimum
(depends
on wood quality and nominal boiler load).
•
The
design
and
construction,
including
the
wood
gasification
principle
of
complete
burning
assures
high
efficiency
and
makes the boiler extremely economical.
•
It
is
environmentally
friendly
because
of
extremely
low
concentration of harmful components in flue gases.
•
Three
doors
and
the
combustion
chamber
enable
loading
with
large logs as well as very simple cleaning and maintenance.
•
It
is
engineered
for
installation
in
open
or
closed
central
heating
systems
only
through
accumulation
tanks
(CAS),
volume
min.
50l/kW
and
a
3-way
thermal
valve
at
60°C.It
is
delivered
pre-wired
with
the
built-in
boiler
control
unit
to
control the boiler.
•
The
built-in
boiler
control
with
the
colour
touch
screen
manages
the
boiler
operation
using
the
lambda
probe,
temperature
sensor
in
the
boiler
combustion
chamber,
boiler
sensor,
motor
for
the
management
of
primary
and
secondary
air
intake
and
changing
the
rpms
of
underpressure
fan
on
the
flue gases outlet from the boiler.
•
Possible
upgrade
of
the
GSM
alarm
and
the
module
for
steering
up
to
max.8
heating
circuits
via
mixing
valves
to
the
outside or room temperature (additional equipment).
•
In
addition
to
the
operation
of
the
boiler,
the
boiler
pump
and
the
return
flow
(through
the
3-way
mixing
valve
and
the
return
sensor),
the
control
unit
can
manage
the
filling
of
the
accumulation
tank
and
heating
of
the
domestic
hot
water
tank
(DHW sensor) (sensor + pump).
•
Easy
transportation
and
leveling
by
4
adjustable
legs
of
the
boiler.
•
The
boiler
is
tested
and
certified
according
to
EN
303-5:
2012
and
meets
Class
5.
It
is
manufactured
in
accordance
with
ISO
9001 and ISO 14001 standard.
Boiler regulation;
Boiler water inlet;
Fan with electric motor;
Flue gas exhaust;
Boiler water outlet;
Lever for cleaning flue gas tubes;
Place for mounting the thermal valve;
Side opening for cleaning the smoke chamber.
BASIC DIMENSIONS:
BioTec-C 25-34
BioTec-C 45
Nominal heat output
Ø(mm)
R
R
Filling/Draining
lue gases temperature
Max. operating temperature
R
25
Max. operating pressure
Boiler dimensions (A*C*B)
34
°C
°C
bar
mm
150/775
6/4"
6/4"
3/4"
130
90
2,5
1400*1330*585
160/800
6/4"
6/4"
3/4"
130
90
2,5
1370*1370*700
kW
45
180/1270
6/4"
6/4"
3/4"
130
90
2,5
1385*1565*700
*Chimney diameter/height
Boiler water inlet
Boiler water outlet
45
34
25
Max. wood piece length
Wood storage
mm
lit.
450-550
90
450-550
144
450-550
Boiler water content
lit.
115
Boiler mass
kg
519
606
677
130
176
150
Total boiler depth (H)
mm
775
800
1270
BioTec-C 25-45kW

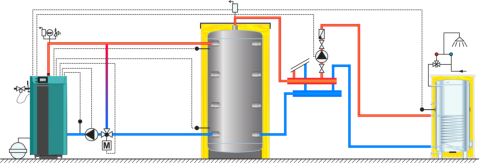

NSTALLATION EXAMPLE:
Obligatory additional equipment:
– accumulation tank for heating system (CAS (minimum 30 lit/kw
boiler power)), 3-way thermostat valve, like ESBE LTC 141;
(closed heating system) – thermal safety valve, safety-airvent
group (2,5 bar) and expansion vessel; (open heating system )
– open expansion vessel.
Contact phone: +371 28818088, +371 29149923
E-mail: info@centrometal.lv
Homepage: www.centrometal.lv
*The internal diameter and height of the chimney must be strictly in
line with the boiler's nominal capacity. It must comply with all
national regulatory documents and manufacturer's
recommendations.
