Compact hot water boilers ZVB II are intended for burning with wood pellets. They
are intended for hot water heating (radiator, floor, fan coil…) from the smallest to
medium-sized buildings. They are of steel construction, modern design and high ef-
ficiency. The boilers are equipped with a burner for burning wood pellets with an
automatic ignition function and turbulators with manual cleaning.
The digital boiler regulation with a 7″ touch-sensitive screen controls the operation
of the boiler via the flue gas fan controlled by the smoke and boiler water tempera-
tures. The boiler regulation, in addition to the boiler, can control one mixing or direct
heating circuit and one sanitary water circuit with recirculation, i.e. a maximum of 3
pumps and one mixing valve. It is possible to order a fuel level sensor, an addi-
tional larger tank with a conveyor belt that automatically replenishes the tank in the
boiler, a module for additional heating circuits and room correctors or thermostats.
PRODUCT CHARACTERISTICS
Pellet boiler ZVB II
DELIVERY OF PELLETS
It supplies pellets independently using a screw
conveyor and ignites them using an electric
heater.
EQUIPPED
Factory installed pressure switch, flue gas tem-
perature sensor, safety thermostat, electrical
safety, safety valve, reduction motor and auto-
matic vent valve.
SAFETY DEVICES
•
Pressure switch: It controls the pressure in the smoke duct. It blocks the pellet transporter in case the drain is blocked or
there are significant counter pressions.
•
Flue gas temperature sensor: This sensor is located on the upper part of the fan and if the flue gas temperature is too high,
it will stop the operation of the boiler.
•
Safety thermostat: Safety thermostat with manual reset for the water temperature.
•
Electrical safety: The Boiler is protected against violent surges of current (ex. lightnings) by the main fuse which is located
on the control panel at the rear of the boiler.
•
Safety valve: This valve acts to prevent over pressurization of the hydraulic system.
•
Reduction motor: If the motor stops, the boiler continues to function until the flame goes out for lack of fuel, and until It
has cooled down to the minimum level.
•
Automatic vent valve: This valve eliminates the air inside the boiler and of the heating system.

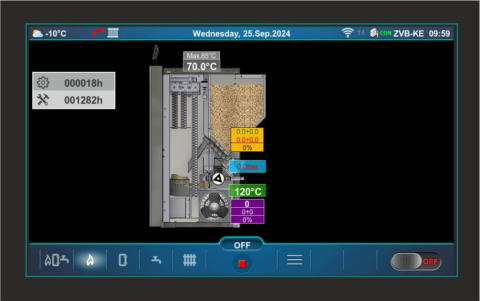

TOUCH SENSITIVE SCREEN:
Technical instructions
Boiler
Contact phone: +371 28818088, +371 29149923
E-mail: info@centrometal.lv
Homepage: www.centrometal.lv
SUITABLE FOR THE ENVIRONMENT
Low emissions of harmful compounds in
flue gases.
EFFECTIVE
High efficiency of the boiler guarantees
good efficiency.

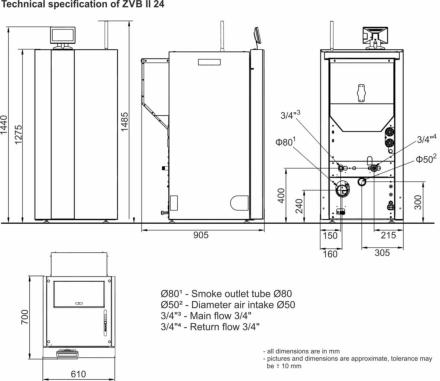

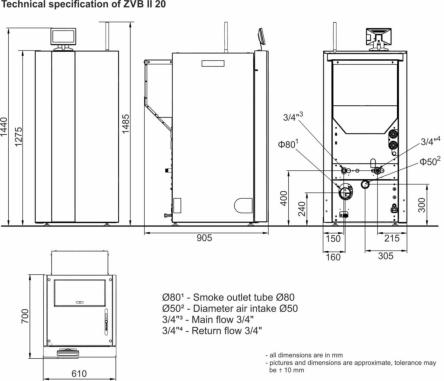

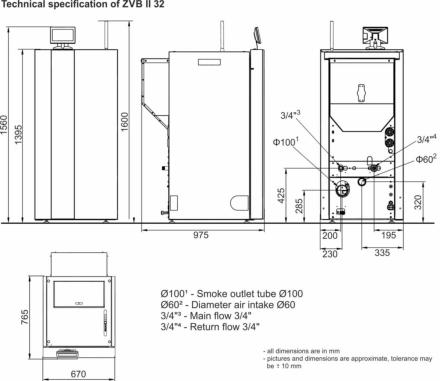

BASIC DIMENSIONS:
HEATING TECHNIQUE
•
It enables direct interaction with the content displayed
on the screen.
•
Simple management of boiler operation
Technical instructions
Regulation
Prospect - ZVB II
Contact phone: +371 28818088, +371 29149923
E-mail: info@centrometal.lv
HEATING TECHNIQUE

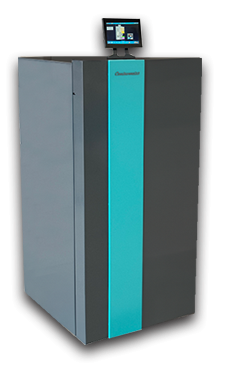

Granulu apkures katls ZVB II
Contact phone: +371 28818088, +371 29149923
E-mail: info@centrometal.lv
Homepage: www.centrometal.lv
Compact hot water boilers ZVB II are intended for burning
with wood pellets. They are intended for hot water heating
(radiator, floor, fan coil…) from the smallest to medium-
sized buildings. They are of steel construction, modern de-
sign and high efficiency. The boilers are equipped with a
burner for burning wood pellets with an automatic ignition
function and turbulators with manual cleaning.
The digital boiler regulation with a 7″ touch-sensitive screen
controls the operation of the boiler via the flue gas fan con-
trolled by the smoke and boiler water temperatures. The
boiler regulation, in addition to the boiler, can control one
mixing or direct heating circuit and one sanitary water circuit
with recirculation, i.e. a maximum of 3 pumps and one mix-
ing valve. It is possible to order a fuel level sensor, an addi-
tional larger tank with a conveyor belt that automatically
replenishes the tank in the boiler, a module for additional
heating circuits and room correctors or thermostats.
PRODUCT CHARACTERISTICS
SAFETY DEVICES
•
Pressure switch: It controls the pressure in the smoke
duct. It blocks the pellet transporter in case the drain
is blocked or there are significant counter pressions.
•
Flue gas temperature sensor: This sensor is located on
the upper part of the fan and if the flue gas
temperature is too high, it will stop the operation of
the boiler.
•
Safety thermostat: Safety thermostat with manual
reset for the water temperature.
•
Electrical safety: The Boiler is protected against violent
surges of current (ex. lightnings) by the main fuse
which is located on the control panel at the rear of the
boiler.
•
Safety valve: This valve acts to prevent over
pressurization of the hydraulic system.
•
Reduction motor: If the motor stops, the boiler
continues to function until the flame goes out for lack
of fuel, and until It has cooled down to the minimum
level.
•
Automatic vent valve: This valve eliminates the air
inside the boiler and of the heating system.
Technical instructions:
DELIVERY OF PELLETS
It supplies pellets independently using a screw
conveyor and ignites them using an electric
heater.
EQUIPPED
Factory installed pressure switch, flue gas tem-
perature sensor, safety thermostat, electrical
safety, safety valve, reduction motor and auto-
matic vent valve.
TOUCH SENSITIVE SCREEN:
Technical instructions - Boiler
SUITABLE FOR THE ENVIRONMENT
Low emissions of harmful compounds in
flue gases.
EFFECTIVE
High efficiency of the boiler guarantees
good efficiency.
BASIC DIMENSIONS:
•
It enables direct interaction with the content displayed
on the screen.
•
Simple management of boiler operation
Technical instructions - Regulation
Prospect - ZVB II
Prospect:
