Heat output
kg/h
%
Ø mm
Pellet consume
Efficiency
Flue gas tube connection
Tank capacity
Autonomy
CentroPelet Z6-16
lit/kg
2,84-6,97
Power consume at nominal power
Dimensions (Width * Depth * Height)
Dimensions for boiler planning
Net weight
2,84-10,0
h
w
mm
kg
0,58-1,42
92,06-92,70
80
20/13
9-22
100-300
495*490*910
0,975
82
0,58-2,06
89,53-92,70
80
20/13
6,5-22
100-300
495*490*1000
0,975
91
Z16
Z12
Z8
kW
3,8-16,30
0,8-3,30
93,5-98,0
80
30
9-37
150-340
495*580*1075
1,073
140
0,57-1,34
90,00-96,34
80
17/11
8-19
100-300
430*430*765
0,855
45
Z6
2,7-6,15
m
2
PRODUCT CHARACTERISTICS:
SMART FUNCTIONS
The pellets are automatically supplied by sling conveyor and burned automatically with electric heater.EFFICIENT
The economical function enables automatic power down when the room temperature approaches the default values.REMOTE CONTROL
Control the stove functions from the comfort of the armchair with the intuitive remote control..MODERN DESIGN
These stoves with their modern lines fit perfectly into your home.
Pellet firing stoves CentroPelet Z are hot air wood pellet firing
stoves that heat the room with hot air using a fan built in the stove.
They are made of steel with modern design and high efficiency.
CentroPelet Z12 and ZR12 are supplied with a remote control.
The delivery standardly includes a digital control that can be used
for controlling the operation of the stove. The main advantage is
easy operation, maintenance and installation (no need for radia-
tors, pipes …))
•
Pellet firing stove for hot air heating by blowing hot air into the space.
•
It is available in three colours: white, gray, red
•
The stove is supplied with wood pellets using a screw conveyor, and the pellets are fired by an electric heater.
•
The stove can be turned on/off automatically.
•
The function of economical operation allows automatic output reduction when the temperature room is getting closer to default.
•
The possibility of adjusting the switching time (only using the remote control, standardly delivered with models Z12 and ZR12.
•
Additionally you can order a Wi-Fi module which enables monitoring the temperature and controlling the stove operation by a mo-
bile application.
•
Built-in pellet tank.

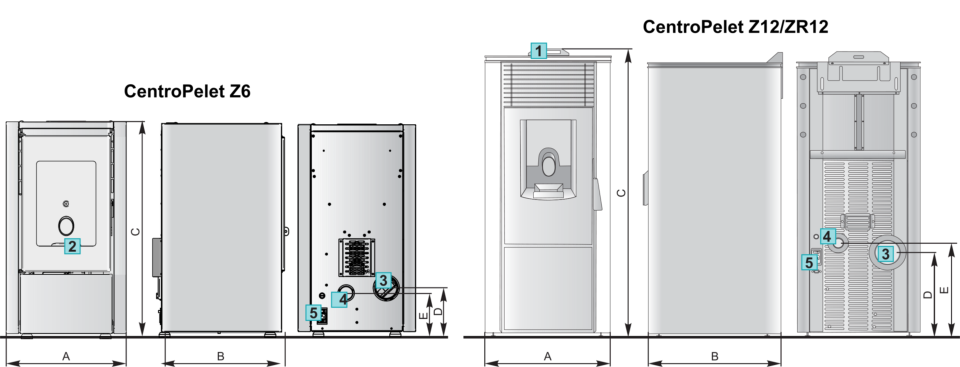

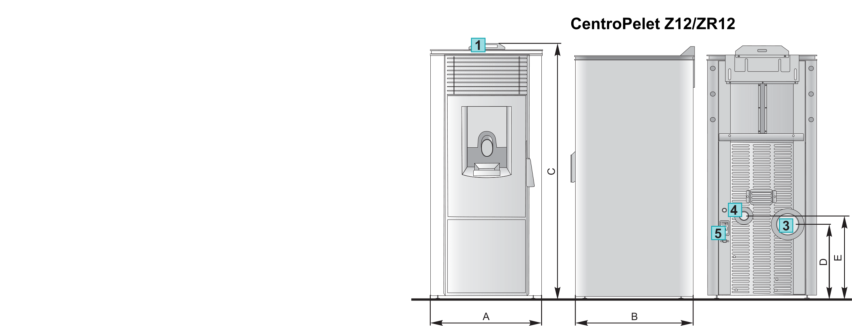

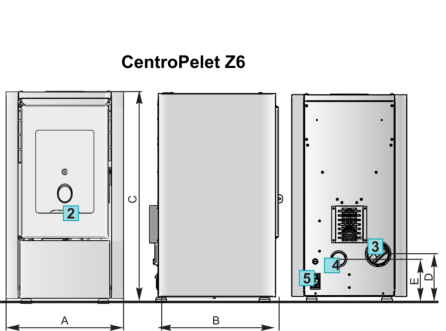

BASIC DIMENSIONS:

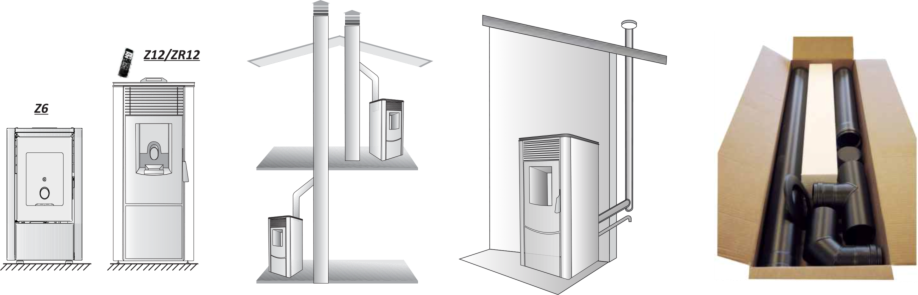

DELIVERY AND OBLIGATORY ADDITIONAL EQUIPMENT:
Regulation
Firebox grate
Connection for flue gas exhaust
Connection for fresh air intake
Main switch
Delivery:
Stove with the regulation control.
Remote control (only for Z12 and
ZR12)
Flue gas exhaust:
One stove per one chimney
Flue gas exhaust:
External flue pipes that should
be connected in accordance
with the local regulations
Additional equipment:
set of flue pipes for CentroPelet Z
"for the facade connection" (1m
flue pipe, 0.5m flue pipe, T- piece
cover, Tpiece, silicon rosette, 90°
bend)
HEATING TECHNIQUE
Contact phone: +371 28818088, +371 29149923
E-mail: info@centrometal.lv
Homepage: www.centrometal.lv

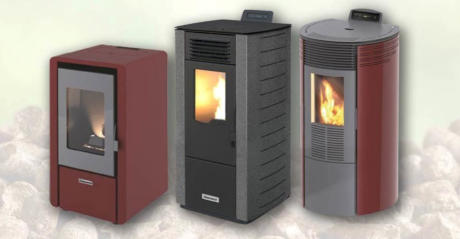

Pellet fireplaces Centropelet Z6, Z12 end ZR12
PRODUCT CHARACTERISTICS
SMART FUNCTIONS
The pellets are automatically supplied by sling
conveyor and burned automatically with electric
heater.
EFFICIENT
The economical function enables automatic
power down when the room temperature ap-
proaches the default values.
REMOTE CONTROL
Control the stove functions from the comfort of
the armchair with the intuitive remote control..
MODERN DESIGN
These stoves with their modern lines fit per-
fectly into your home.
Pellet firing stoves CentroPelet Z are hot air wood pellet fir-
ing stoves that heat the room with hot air using a fan built in
the stove. They are made of steel with modern design and
high efficiency. CentroPelet Z12 and ZR12 are supplied with
a remote control.
The delivery standardly includes a digital control that can be
used for controlling the operation of the stove. The main ad-
vantage is easy operation, maintenance and installation (no
need for radiators, pipes …))
•
Pellet firing stove for hot air heating by blowing hot air
into the space.
•
It is available in three colours: white, gray, red
•
The stove is supplied with wood pellets using a screw
conveyor, and the pellets are fired by an electric heater.
•
The stove can be turned on/off automatically.
•
The function of economical operation allows automatic
output reduction when the temperature room is getting
closer to default.
•
The possibility of adjusting the switching time (only using
the remote control, standardly delivered with models Z12
and ZR12.
•
Additionally you can order a Wi-Fi module which enables
monitoring the temperature and controlling the stove op-
eration by a mobile application.
•
Built-in pellet tank.
BASIC DIMENSIONS:
DELIVERY AND OBLIGATORY
ADDITIONAL EQUIPMENT:
Regulation
Firebox grate
Connection for flue gas exhaust
Connection for fresh air intake
Main switch
Delivery:
Stove with the regulation
control.
Remote control (only for Z12
and ZR12)
Flue gas exhaust:
One stove per one chimney
Flue gas exhaust:
External flue pipes that should
be connected in accordance
with the local regulations
Additional equipment:
set of flue pipes for CentroPelet Z
"for the facade connection" (1m
flue pipe, 0.5m flue pipe, T- piece
cover, Tpiece, silicon rosette, 90°
bend)
Contact phone: +371 28818088, +371 29149923
E-mail: info@centrometal.lv
HEATING TECHNIQUE
Pellet fireplaces Centropelet
Z6, Z12 end ZR12
Contact phone: +371 28818088, +371 29149923
E-mail: info@centrometal.lv
Homepage: www.centrometal.lv
*The internal diameter and height of the chimney must be strictly in
line with the boiler's nominal capacity. It must comply with all
national regulatory documents and manufacturer's
recommendations.
