Tower-M/210 are intended for installation with Centrometal monobloc heat pumps with working medium R32 or R290. The Tower-M/210 unit consists of a stainless steel DHW tank, storage tank, direct heating circuit pump, regulation for Centrometal heat pumps and expansion tank for DHW. All components are located in a compact housing with floor plan dimensions of 600×600 mm, the same space as the washing machine next to which it is usually installed in apartments, which takes up minimal space. In combination with a monobloc heat pump, this unit can replace any type of boiler or work in combination with it, in an integrated hybrid system. Tower-M/210 is a very practical and efficient solution for apartments and houses, providing optimal comfort while saving space.

PRODUCT CHARACTERISTICS

Indoor unit of heat pump Tower-M/210

HEATING TECHNIQUE

• Accumulation tank

• One direct heating circuit (standard delivery)

• One mixing heating circuit (additional option)

• DHW tank – 210 l

• Expansion vessel – 11 liters

• Safety valve

• Electric heater – 2 kW (additional option)

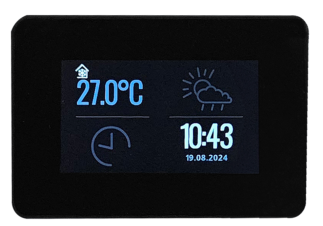

Controller with a color touch screen

COMPREHENSIVE SOLUTION FOR HEATING AND COOLING • Control with a color touch screen controls the heat pump, up to two mixed heating/cooling circuits, one direct heating/cooling circuit and DHW heating (with recirculation) • It can be connected to underfloor heating/cooling, fan coils and/or low-temperature radiator heating • Possible subsequent connection to the web portal

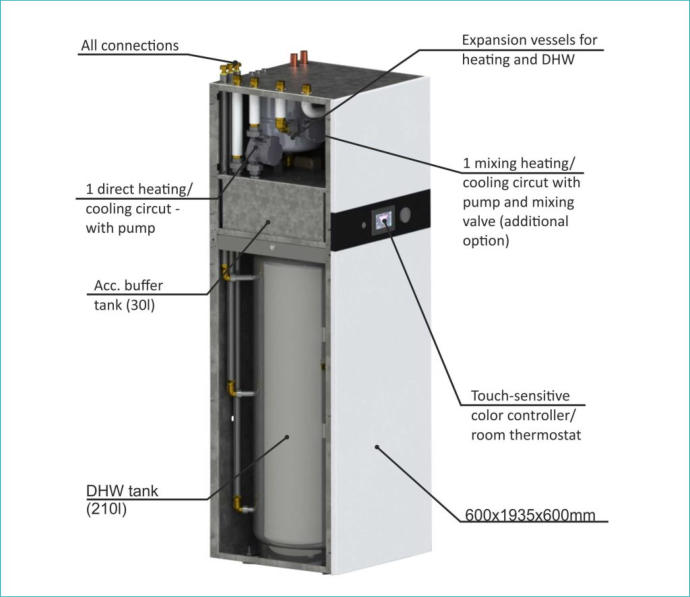

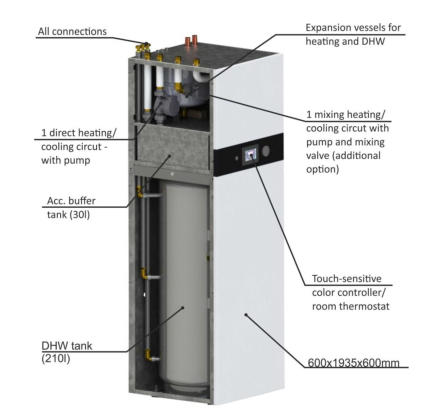

CROSS-SECTION:

TECHNICAL INSTRUCTIONS / PROSPECT:

Technical instructions -

Tower-M/200

Contact phone: +371 28818088, +371 29149923 E-mail: info@centrometal.lv Homepage: www.centrometal.lv

• For monobloc heat pumps with medium

R32 and R290

• Working medium R32 and R290

• Expansion vessel 8 liters

• Electric heater 3/9 kW

• Controller with touchscreenn

TECHNICAL DATA:

Pow er supply

Piping co nnecon s Safety v alve Buﬀer tank volu me Drainage DHW tank volu me Expansion vessel Con necons Safety v alve Electronic hea ter

Sound power lev el Dimensions (WxHxD ) Net/ gross mass Water circuit

DHW

Tower-M/210

210

185

600x1935x6 00

PROSPECT (PDF)

Contact phone: +371 28818088, +371 29149923 E-mail: info@centrometal.lv

HEATING TECHNIQUE

Indoor unit of heat pump Tower-M/210

Contact phone: +371 28818088, +371 29149923 E-mail: info@centrometal.lv Homepage: www.centrometal.lv

Tower-M/210 are intended for installation with Centrometal monobloc heat pumps with working medium R32 or R290. The Tower-M/210 unit consists of a stainless steel DHW tank, storage tank, direct heating circuit pump, regulation for Centrometal heat pumps and expansion tank for DHW. All components are located in a compact housing with floor plan dimensions of 600×600 mm, the same space as the washing machine next to which it is usually installed in apartments, which takes up minimal space. In combination with a monobloc heat pump, this unit can replace any type of boiler or work in combination with it, in an integrated hy- brid system. Tower-M/210 is a very practical and efficient solution for apartments and houses, providing optimal com- fort while saving space.

PRODUCT CHARACTERISTICS

• Accumulation tank • One direct heating circuit (standard delivery) • One mixing heating circuit (additional option)
