HEATING TECHNIQUE
•

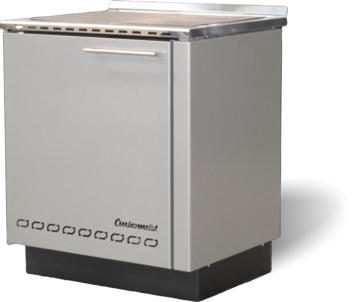

BIO-CET B steel hot water boilers for solid fuel firing are engineered for
central heating and for cooking. Heat output transferred to heating water is
12, 19 and 25 kW, and 5-6 kW is transferred to the surrounding space
through the upper heating plate. The name “floor” does not exclude heat-
ing of more than one floor if the heating requirement is matched to output.
They can be connected to closed and open central heating systems, with
and without the accumulation tank.
•
The boiler is easily adapted to requirements for space heating by chang-
ing the position of the firebox grate. Modern design and dimensions in line
with usual furniture standards enable good integration into a kitchen
space, as well as into any other room inside the house, that has a direct
connection to the chimney. Boilers are manufactured to the EN 12815
standards and in accordance with ISO 9001 and ISO 14001.
PRODUCT CHARACTERISTICS
EFFICIENT
The appropriate dimensioned firebox and multiple heat exchange passages ensure a high degree of boiler utilization.MODERN DESIGN
It makes installing these boilers acceptable in the kitchen, but also in some other part of the house or apartment where there is a chimney connection.MAINTENANCE
The large door and boiler provide fuel for solid fuel (length 33cm) and easy cleaning and maintenance.ADJUSTABLE
Changing the position of the lattice grid simply adjusts to the needs for space heating.
Total thermal output
Rated thermal output (water)
kW
kW
°C
bar
Rated thermal output to the surrounding area
Max. operating temperature
Max. operating pressure
Boiler flue gas exhaust diameter
Boiler water content
Dimensions (Width*Depth*Height)
Centrometal BIO-PEK B
Ø mm
24
Oven size (Width*Depth*Height)
Upper boiler door opening
Lower boiler door opening
Boiler mass
30
lit
mm
mm
mm
mm
kg
19
5
90
2,5
150
30
1100*635*885
260*400*415
150*240
275*205
234
25
5
90
2,5
150
38
1150*635*885
260*400*415
150*240
275*205
258
BIO-PEK B 29 B
BIO-PEK B 23 B
kW
12
6
90
2,5
150
23
1000*635*885
260*400*415
150*240
275*205
205
BIO-PEK B 17 B
18
•
Hot water boilers for central heating systems and cooking produced for solid fuel firing.
•
Part of the heat output is transferred to the surrounding area through the upper heating plate.
•

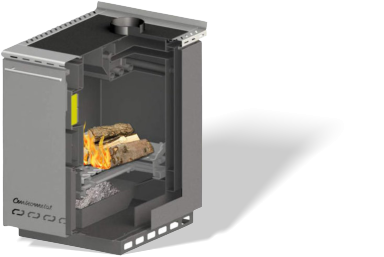

A carefully sized combustion chamber and a number of flue gas passes enable high performance temperature exchange and
cooking on the upper plate.
•
The option of changing the position of the firebox grate by an integrated mechanism enables cooking all year round.
•
Standard form includes the heat exchanger and connection to the thermal safety valve which enables the installation to a
closed central heating systems.
•
The big door enables firing with big pieces of wood (33cm long), as well as easy cleaning and maintenance.
•
Economically and ecologically highly acceptable.
•
Standard delivery also includes the draught regulator and thermomanometer.
•
The central heating circulation pump is controlled by a built-in thermostat.
•
Integrated accumulation tank CAS/-B/-S/-BS enables easy cooking all year round.
Boiler BIO-CET B 23 i 29
Produced in two versions: • BIO-CET B – D made in right version • BIO-CET B – L made in left version Boilers can be connected to the chimney at the rear, lateral or top right side of the boiler – the right design or the rear, lateral or top left side of the boiler – left design.Boiler BIO-CET B 17
Boilers are connected to the chimney from the upper side to the flue gas connector
Delivery:
Boiler with casing, a built-in
thermal pressure gauge,
draft regulator, pump ther-
mostat, the cleaning kit and
a handle for lifting the grate
on a wooden pallet
Directly to the heating system manual 4-
way mixing valve;
Closed heating system
thermal safety valve, safety-air vent group
(2.5 bar) and expansion vessel;
Open heating system
open expansion vessel
With CAS accumulation tank
accum. tank CAS/-B/-S/-BS, 3-way thermostatic mixing
valve LTC, VTC ..(60°C)
Closed heating system
thermal safety valve, safety-air vent group (2.5 bar) and
expansion vessel;
Open heating system
open expansion vessel
3
2
1

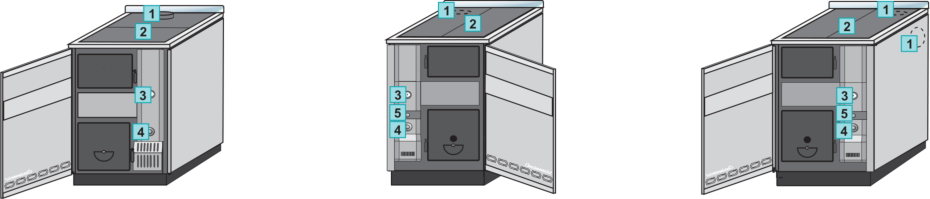

Flue gas exhaust opening
Upper plate
hermomanometer
5
4
BIO-CET B 17
BIO-CET B 23/29 (made
in right version)
OSNOVNE DIMENZIJE
BIO-CET B 23/29
(made in lef version)
BIO-CET B 17
BIO-CET B 23/29 (made
in right version)
8
7
6
9

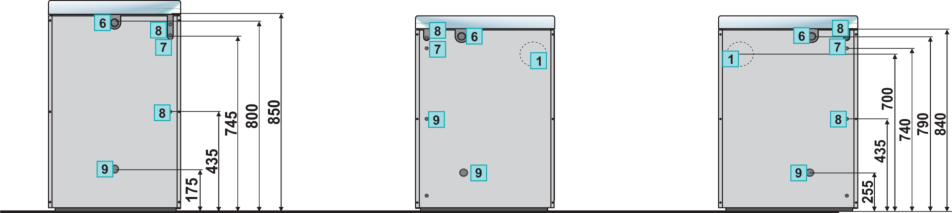

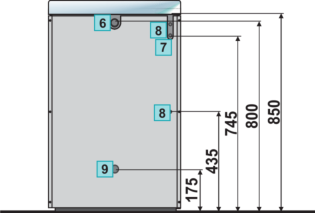

Boiler outlet
Draught regulator
Opening for cleaning
Boiler water inlet
Connection for the installation of the
thermal valve temperature sensor
Heat exchanger connection
BIO-CET B 23/29 (made
in left version)
BASIC DIMENSIONS:
DELIVERY AND ADDITIONAL EQUIPMENT:
**(Width * Depth * Height)
*The internal diameter and height of the chimney must be strictly in line with
the boiler's nominal capacity. It must comply with all national regulatory docu-
ments and manufacturer's recommendations.
Contact phone: +371 28818088, +371 29149923
E-mail: info@centrometal.lv
Homepage: www.centrometal.lv
Heating stove BIO-CET B 18/24/30kW
BIO-CET B steel hot water boilers for solid fuel firing are en-
gineered for central heating and for cooking. Heat output
transferred to heating water is 12, 19 and 25 kW, and 5-6 kW
is transferred to the surrounding space through the upper
heating plate. The name “floor” does not exclude heating of
more than one floor if the heating requirement is matched to
output. They can be connected to closed and open central
heating systems, with and without the accumulation tank.
The boiler is easily adapted to requirements for space heat-
ing by changing the position of the firebox grate. Modern de-
sign and dimensions in line with usual furniture standards
enable good integration into a kitchen space, as well as into
any other room inside the house, that has a direct connection
to the chimney. Boilers are manufactured to the EN 12815
standards and in accordance with ISO 9001 and ISO 14001.
PRODUCT CHARACTERISTICS
EFFICIENT
The appropriate dimensioned firebox and multi-
ple heat exchange passages ensure a high de-
gree of boiler utilization.
MODERN DESIGN
It makes installing these boilers acceptable in
the kitchen, but also in some other part of the
house or apartment where there is a chimney
connection.
MAINTENANCE
The large door and boiler provide fuel for solid
fuel (length 33cm) and easy cleaning and
maintenance.
ADJUSTABLE
Changing the position of the lattice grid simply
adjusts to the needs for space heating.
•
Hot water boilers for central heating systems and cook-
ing produced for solid fuel firing.
•
Part of the heat output is transferred to the surrounding
area through the upper heating plate.
•
A carefully sized combustion chamber and a number of
flue gas passes enable high performance temperature
exchange and cooking on the upper plate.
•
The option of changing the position of the firebox grate
by an integrated mechanism enables cooking all year
round.
•
Standard form includes the heat exchanger and connec-
tion to the thermal safety valve which enables the instal-
lation to a closed central heating systems.
•
The big door enables firing with big pieces of wood
(33cm long), as well as easy cleaning and maintenance.
•
Economically and ecologically highly acceptable.
•
Standard delivery also includes the draught regulator
and thermomanometer.
•
The central heating circulation pump is controlled by a
built-in thermostat.
•
Integrated accumulation tank CAS/-B/-S/-BS enables
easy cooking all year round.
Boiler BIO-CET B 23 i 29
Produced in two versions:
•
BIO-CET B – D made in right version
•
BIO-CET B – L made in left version
Boilers can be connected to the chimney at the rear, lateral
or top right side of the boiler – the right design or the rear,
lateral or top left side of the boiler – left design.
Boiler BIO-CET B 17
Boilers are connected to the chimney from the upper side to
the flue gas connector
Delivery:
Boiler with casing, a built-in ther-
mal pressure gauge, draft regu-
lator, pump thermostat, the
cleaning kit and a handle for lift-
ing the grate on a wooden pallet
Directly to the heating
system manual 4-way
mixing valve;
Closed heating system
thermal safety valve,
safety-air vent group (2.5
bar) and expansion
vessel;
Open heating system
open expansion vessel
With CAS accumulation
tank
accum. tank CAS/-B/-S/-
BS, 3-way thermostatic
mixing valve LTC, VTC
..(60°C)
Closed heating system
thermal safety valve,
safety-air vent group (2.5
bar) and expansion
vessel;
Open heating system
open expansion vessel
3
2
1
Flue gas exhaust opening
Upper plate
hermomanometer
5
4
BIO-CET B 17
BIO-CET B 23/29 (made
in right version)
OSNOVNE DIMENZIJE
BIO-CET B 23/29
(made in lef version)
BIO-CET B 17
BIO-CET B 23/29 (made
in right version)
8
7
6
9
Boiler outlet
Draught regulator
Opening for cleaning
Boiler water inlet
Connection for the installation of the thermal valve tem-
perature sensor
Heat exchanger connection
BIO-CET B 23/29 (made
in left version)
BASIC DIMENSIONS:
DELIVERY AND ADDITIONAL EQUIPMENT:
Contact phone: +371 28818088, +371 29149923
E-mail: info@centrometal.lv
HEATING TECHNIQUE
Heating stove BIO-CET B
18/24/30kW
Contact phone: +371 28818088, +371 29149923
E-mail: info@centrometal.lv
Homepage: www.centrometal.lv
*The internal diameter and height of the chimney must be strictly in
line with the boiler's nominal capacity. It must comply with all
national regulatory documents and manufacturer's
recommendations.
