How air source heat pump works

A heat pump is an energy efficient system that absorbs heat from the ambient air for heating and hot water. By using the ambient air and transferring this heat into the house through a hydronic system, such as floor heating, fan coil units and radiators
Compressor Expansion Valve
Condenser
Heat Distribution
Heat Source
Evaporator

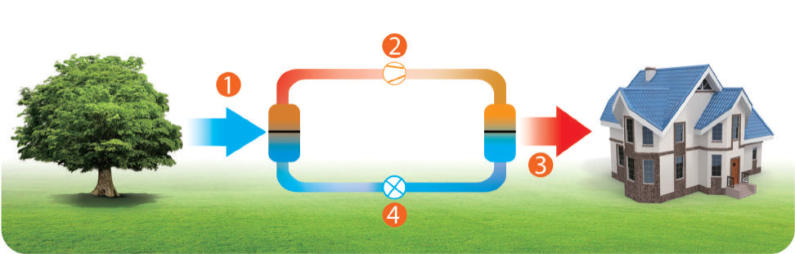

Stage One

The heat transfer medium (the refrigerant) is colder than the heat source (the outside air). As the outside air passes across the fi rst heat exchanger (the evaporator) the liquid refrigerant absorbs the heat and evaporates .
1

Stage Two

The vapor passes to the compressor and is compressed. When compressed the pressure is increased and the temperature of the vapor rises, effectively concentrating the heat.
2

Stage Three

The hot vapor passes to the second heat exchanger (the condenser) where the heat is released to the water and the vapor condenses back into a liquid. The water heated in by the Thermal system is circuit to the indoors for central heating and domestic hot water heating.
3

Stage Four

The liquid refrigerant passes through an expansion valve, reducing its pressure and temperature, ready to start the next circuit.
4

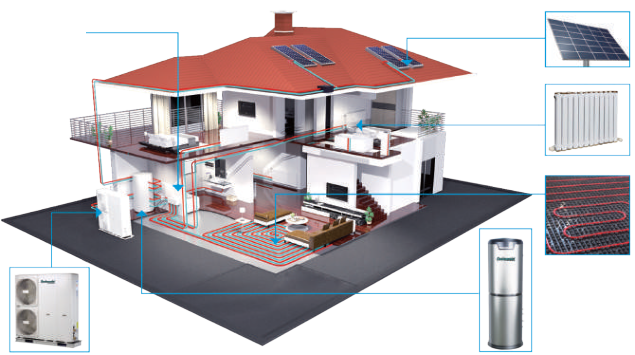

Thermal Mono System
Application Heating + Cooling + Domestic hot water Heat pump type Outdoor unit only (Compressor part and hydronic box are integrated) Refrigerant piping Inside outdoor unit Water piping Between outdoor unit and indoor heating appliances Installation Only need to install water piping
Combinational parts (field supply)
Floor heating coils Fan coil units Low temperature radiators Domestic hot water tank Auxiliary heat sources (such as solar collector,boiler and gas furnace)
User interface
Solar panel Low temperature radiator
Mono Outdoor unit Domestic water tank
Floor heating
Mono outdoor unit Mono outdoor unit absorbs heat from the outside air and transfers it to the water in the hydronic modular, through water to supply heat to indoor side. Domestic water tank (field supplied) Domestic water tank is used to supply sanitary hot water. The hot water from the Mono unit release heat to water in the tank through the inner coil, and cold water in the tank is heated. Usually there is an addition electric heater in the domestic water tank. User interface Control unit with colorful touchscreen panel controls the heat pump operation, and it can control system with up to two mixing heating/cooling circuits, one direct heating/cooling circuit and DHW preparation (with DHW recirculation pump operation control as well) (mandatory additional equipment). It can be connected to a web portal and mobile application afterwards.

Mono system

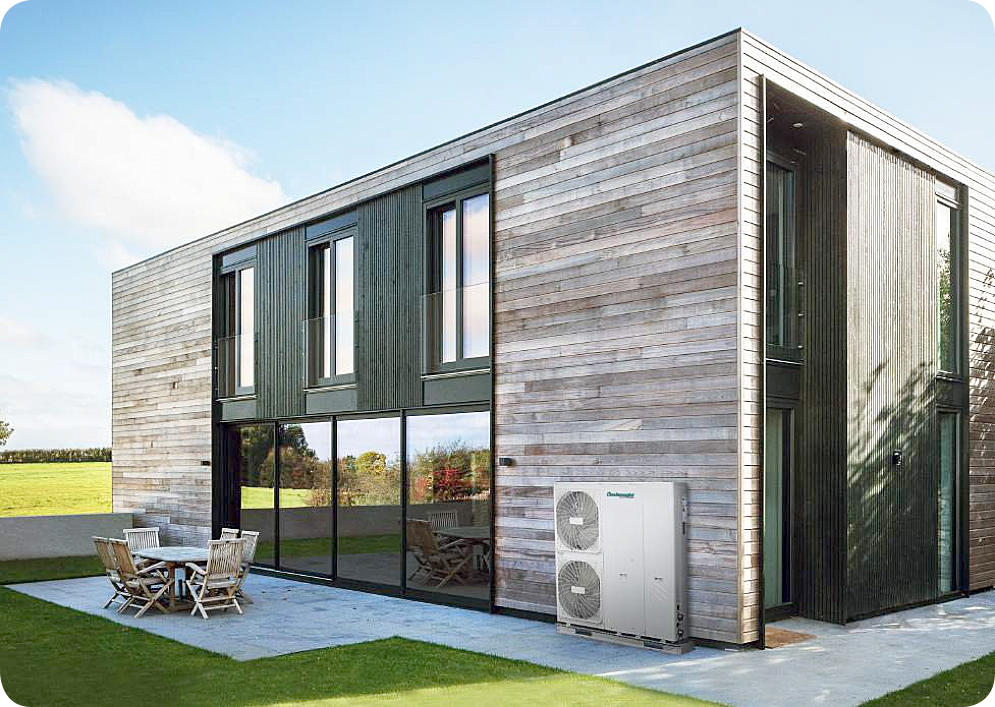

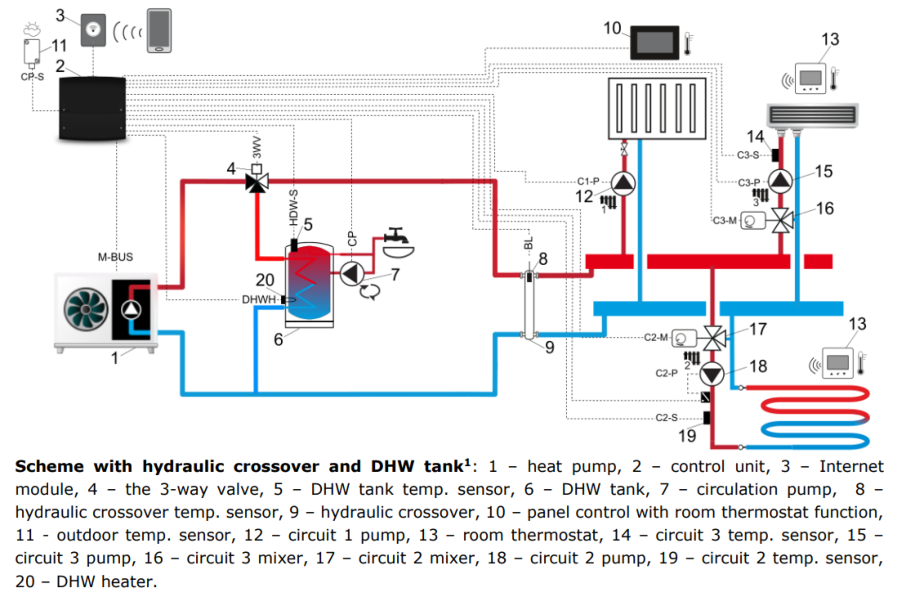

Typical Applications
Example: Application 2: Thermal Mono for space heating and domestic hot water Room thermostat is not connected to the Mono unit but to motorized valve. Each room’s temperature is regulated by the motorized valve on every water circuit. Sanitary hot water is delivered by the domestic hot water tank connected to the Mono unit. In this situation, bypass valve is necessary.
•

Split system

Thermal Split System
Application Heating + Cooling + Domestic hot water Heat pump type Outdoor unit (Compressor part) + Indoor unit ( Hydronic box) Refrigerant piping Between outdoor unit and indoor unit Water piping Between indoor unit and indoor heating appliances Installation Refrigerant piping and water piping
Combinational parts (field supply)
Floor heating coils Fan coil units Low temperature radiators Domestic hot water tank Auxiliary heat sources (such as solarcollector,boiler and gas furnace)
User interface
Solar panel Low temperature radiator
Split Domestic water tank Outdoor unit
Hydronic box
Floor heating
Split type outdoor unit The outdoor unit absorbs heat from the outside air and transfers it inside through refrigerant piping. Hydronic box The hydronic box heats the water by refrigerant from outdoor unit. The heated water circulates through heating device such as floor heating, radiators, fan coil units as well as inner coil of domestic hot water tank. Domestic water tank (field supplied) Domestic water tank is used to supply sanitary hot water. The hot water from the hydronic box release heat to water in the tank through the inner coil, and cold water in the tank is heated. Usually there is an addition electric heater in the domestic water tank. User interface Control unit with colorful touchscreen panel controls the heat pump operation, and it can control system with up to two mixing heating/cooling circuits, one direct heating/cooling circuit and DHW preparation (with DHW recirculation pump operation control as well) (mandatory additional equipment). It can be connected to a web portal and mobile application afterwards.

Specifications

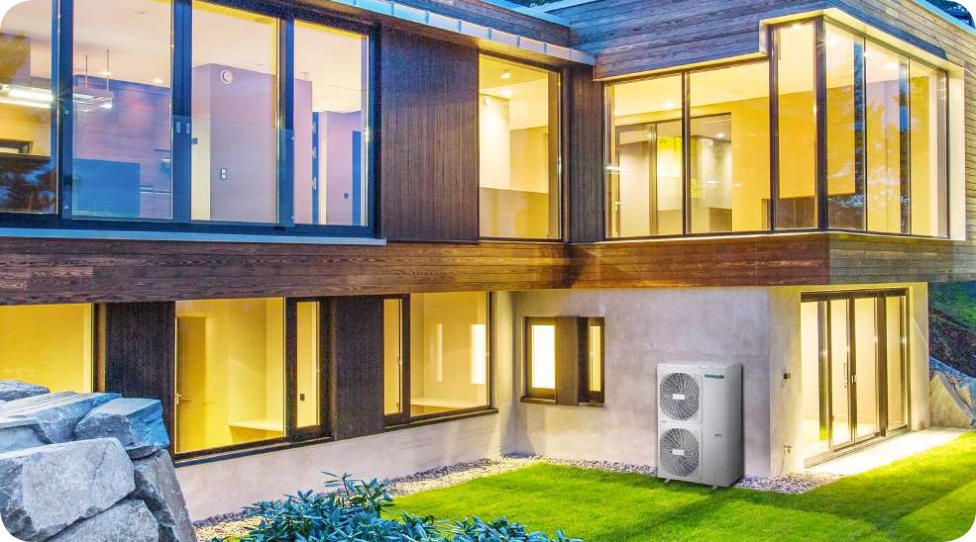

Flexible installation and easy maintenance
Flexible installation and easy maintenance Compact structure, independent hydronic box, flexible installation. Refrigerant pipes run indoors from the outdoor unit, no need extra insulation of water piping to protect from freezing up. No need extra refrigerant within 10m refrigerant pipe length.
• • •

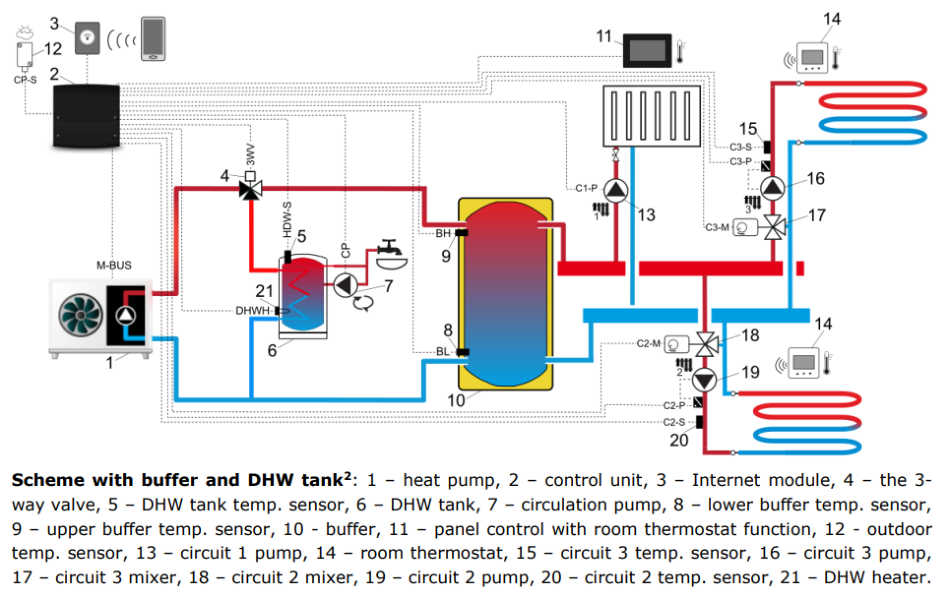

Example: Application 2: Thermal Split type unit for space heating and domestic hot water Room thermostat is not connected to the indoor hydronic box but to motorized valve. Each room’s temperature is regulated by the motorized valve on every water circuit. Sanitary hot water is delivered by the domestic hot water tank connected to the split indoor unit. In this situation, bypass valve is necessary.
•
HEATING TECHNIQUE
Contact phone: +371 28818088, +371 29149923 E-mail: info@centrometal.lv Homepage: www.centrometal.lv

Total heat solution - Heating, cooling, domestic hot water in one system

Heat pumps is an integrated system that heats and cools space, as well as produces domestic hot water. It offers total heat solution all year round. This system can complete instead of the tradition gas or other fuel boilers, it also can work together with them.

Heat pumps air-water

Heat pumps air-water Heat pumps air-water
• Renewable energy source • R32 low CO2 emission, environmentally friendly • DC inverter technology, high energy efficiency • Sufficient heating capacity at low ambient • temperature (even at-20°C) • Provide space heating, cooling and domestic hot • water, total heat solution • Compatible with other heat source such as solar • energy and boiler
Thermal Mono outdoor Unit
Solar Panel
User Interface
Radiator
Floor Heating
Domestic Water Tank
Color touch screen
NEW!
Color touch screen management interface

How an air source heat pump works

A heat pump is an energy-efficient system that absorbs heat from the ambient air for heating and hot water. By using outside air and transferring this heat to the house through a water heating system such as underfloor heating, ventilation heat exchangers and / or radiators.

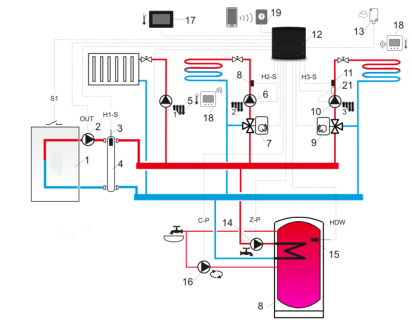

Typical Applications

SPLIT 6-16kW (with hydronic box)

6kW
Specifications - SPLIT:
10kW
16kW P3
Power supply
V/ph/Hz
220-240/1/50
380-415/3/50
Capacity
Rated input
COP
Capacity
Rated input
COP
Capacity
Rated input
EER
Capacity
Rated input
EER
Seasonal space heating
SCOP⁶
ηs
SEER⁶
Energy efficiency class⁶
seasonal space heating efficiency
Maximum overcurrent protection (MOP)
Minimum circuit ampacity (MCA)
Sound power level⁷
Compressor
Outdoor fan
Net dimension (WxHxD)
Packed dimension (WxHxD)
Net/Gross weight
Operating temperature range
Refrigerant
Piping connections
Installation height difference
Heating² A7/W35
Heating³ A7/W55
Cooling⁴ A35/W18
Cooling⁵ A35/W7
Main flow 35°C
Main flow 55°C
Main flow 35°C
Main flow 55°C
Main flow 35°C
Main flow 55°C
Main flow 7°C
Type
Air flow
Cooling
Heating
DHW
Type
Factory charge
Type
Liquid phase
Gas phase
Min. pipe lenght
Max. pipe lenght
Outdoor unit above
Outdoor unit below
kW
kW
kW
kW
kW
kW
kW
kW
A
A
dB(A)
m³/h
mm
mm
kg
°C
°C
°C
kg
mm
mm
m
m
m
m
6.20
1.24
5.00
6.00
2.00
3.00
6.55
1.34
4.90
7.00
2.33
3.00
A+++
A++
4.95
3.52
195.0
137.9
5.34
18
14
58
Twin rotary DC inverter
2770
1008x712x426
1065x800x485
58/64
-5 to 43
-25 to 35
-25 to 43
R32
1.50
Ø 6.35
30
20
20
10.00
2.00
5.00
9.50
3.06
3.10
10.00
2.08
4.80
8.20
2.48
3.30
A+++
A++
5.20
3.47
204.8
135.7
5.98
189
17
60
4030
1118x865x523
1180x890x560
77/88
-5 to 43
-25 to 35
-25 dto 43
R32
1.65
Ø 9.52
30
20
20
Flare
2
Ø 15.9
16.00
3.56
4.50
16.00
5.52
2.90
14.90
4.38
3.40
14.00
5.71
2.45
A+++
A++
4.62
3.41
181.6
133.2
4.67
14
12
68
4650
1118x865x523
1180x890x560
112/125
-
-25 to 35
-25 to 43
R32
1.84
Ø 9.52
30
20
20
6kW
10kW
16kW
Hydronic box :
Compatible outdoor unit model
Sound power level )
Sound power leve)
Dimensions (WxHxD)
Net/Gross weight
Water circuit
Water flow range
Refrigerant circuit
Backup electric heater
Main flow temperature range
Room temperature range
Piping connections
Safety valve
Internal water volume
Drainage
Expansion vessel
Water side heat exchanger
Type
Water pump head
Liquid phase
Gas phase
Standard mounted
Optional
Capacity steps
Cooling
Heating
DHW
V/Ph/Hz
dB(A)
mm
kg
R
bar
L
mm
L
m
m³/h
mm
mm
kW
kW
°C
°C
°C
°C
6
220-240/1/50
38
420x790x270
37/43
1"
3.0
5.0
ø25
8.00
Plate
9.0
0.4-1.25
ø 6.35
ø 15.9
3
2/4
1
10
220-240/1/50
42
400x850x427
37/43
1"
3.0
5.0
ø25
8.00
Plate
9.0
0.4-2.10
ø 9.52
ø 15.9
3
2/4
1
5 to 25
25 to 65
30 to 60
5 to 35
16
220-240/1/50
43
420x790x270
39/45
1"
3.0
5.0
ø25
8.00
Plate
9.0
0.7-3.00
ø 9.52
ø 15.9
9
2/4
1

Specifications Mono 5-30kW

5kW
9kW
16kW P3
22kW P3
30kW P3
Power supply
Capacity
Rated input
COP
Capacity
Rated input
COP
Capacity
Rated input
EER
Capacity
Rated input
EER
Seasonal space heating
Energy efficiency class⁶
SCOP⁶
ηs
SEER⁶
Sound power level⁷
Sound pressure level⁷
Compressor
Outdoor fan
Water side heat exchanger type
Water pump
Expansion vesse
Net dimensions (WxHxD)
Packed dimensions (WxHxD)
Net/Gross weight
Piping connections (water)
Safety valve set pressure (water)
Operating temperature range
Main flow temperature range
Reftigerant
Backup electric heatere
Heating² A7/W35
Heating³ A7/W55
Cooling⁴ A35/W18
Cooling⁵ A35/W7
Main flow 35°C
Main flow 55°C
Main flow 35°C
Main flow 55°C
Main flow 35°C
Main flow 55°C
Main flow 7°C
Main flow 18°C
Type
Air flow
Pump head
Volume
Cooling
Heating
DHW
Cooling
Heating
DHW
Type/GWP
Factory charge
Standard mounted
Optional
Capacity steps
V/ph/Hz
kW
kW
kW
kW
kW
kW
kW
kW
m
L
mm
mm
kg
R
bar
°C
°C
°C
°C
°C
°C
220-240/1/50
6.50
1.23
5.30
6.30
1.97
3.20
6.50
1.28
5.10
5.50
1.69
3.25
A++
A+++
5.12
3.59
201.8
140.7
5.09
7.81
60
48
3900
9.0
970x1190x560
865x1040x410
5.0
87/103
87/103
1"
-25 to 35
-5 to 43
5 to 25
-25 to 43
20 to 60
25 to 65
1.25
-
2/4
1
kg
kW
kW
1.25
-
2/4
1
10.00
2.13
4.70
9.40
3.03
3.10
10.00
2.33
4.30
9.00
3.10
2.90
5.12
3.71
201.9
145.5
5.08
8.31
65
53
4500
120/136
1.8
-
2/4
1
16.00
3.56
4.50
16.00
5.61
2.85
15.40
3.67
4.20
14.00
4.83
2.90
4.84
3.59
190.5
140.7
5.14
7.54
75
59
5200
380-415/3/50
A+++
A++
Twin rotary DC inverter
9.0
5.0
865x1040x410
970x1190x560
Plate
5/4"
3
-5 to 43
-25 to 35
-25 to 43
5 to 25
25 to 65
20 to 60
R32 / 675
177/206
5.0
-
2/4
1
22.00
5.00
4.40
22.00
8.30
2.65
23.00
5.00
4.60
21.00
7.12
2.90
4.53
3.23
178
126
4.70
5.67
73
59.8
10650
380-415/3/50
A+++
A++
12.0
8.0
1129x1558x440
1220x1735x565
5/4"
-5 to 46
-25 to 35
-25 to 43
5 to 25
25 to 65
30 to 60
177/206
5.0
-
2/4
1
30.10
7.70
3.91
30.00
13.04
2.30
31.00
7.75
4.00
29.50
11.57
2.55
4.20
3.15
165
123
4.49
5.71
77
63.5
11200
380-415/3/50
A++
A+
12.0
8.0
1129x1558x440
1220x1735x565
5/4"
-5 to 46
-25 to 35
-25 to 43
5 to 25
25 to 65
30 to 60
1. EU standards: EN14511: 2016; EN14825: 2016; EN50564: 2011; EN12102: 2017; (EU) N° 811/2013; (EU) N° 813/2013; OJ 2014/C 207/02; OJ 2017/C 229/01. 2. Outdoor air temperature 7°C, 85% R.H.; water temperature main flow/return 35/30°C.
3. Outdoor air temperature 7°C, 85% R.H.; water temperature main flow/return 55/47°C. 4. Outdoor air temperature 35°C; water temperature main flow/return 18/23°C. 5. Outdoor air temperature 35°C; water temperature main flow/return 7/12°C. 6. Seasonal space heating energy efficiency class tested in average climate conditions
• Renewable energy source • R410A, low CO2 emission, environmentally friendly • DC inverter technology, high energy efficiency • Sufficient heating capacity at low ambient • temperature (even at-20°C) • Provide space heating, cooling and domestic hot • water, total heat solution • Compatible with other heat source such as solar • energy and boiler Thermal Mono outdoor Unit Solar Panel User Interface Radiator Floor Heating Domestic Water Tank
Compressor Expansion Valve
Condenser
Heat Distribution
Heat Source
Evaporator
Total heat solution - Heating, cooling, domestic hot water in one system Thermal is an integrated system that heats and cools space, as well as produces domestic hot water. It offers total heat solution all year round. This system can complete instead of the tradition gas or other fuel boilers, it also can work together with them.
NEW!
Color touch screen management interface
How an air source heat pump works A heat pump is an energy-efficient system that absorbs heat from the ambient air for heating and hot water. By using outside air and transferring this heat to the house through a water heating system such as underfloor heating, ventilation heat exchangers and / or radiators.
Contact phone: +371 28818088, +371 29149923 E-mail: info@centrometal.lv
HEATING TECHNIQUE
Heat pumps air-water
Stage One The heat transfer medium (the refrigerant) is colder than the heat source (the outside air). As the outside air passes across the fi rst heat exchanger (the evaporator) the liquid refrigerant absorbs the heat and evaporates .
1
Stage Two The vapor passes to the compressor and is compressed. When compressed the pressure is increased and the temperature of the vapor rises, effectively concentrating the heat.
2
Stage Three The hot vapor passes to the second heat exchanger (the condenser) where the heat is released to the water and the vapor condenses back into a liquid. The water heated in by the Thermal system is circuit to the indoors for central heating and domestic hot water heating.
3
Stage Four The liquid refrigerant passes through an expansion valve, reducing its pressure and temperature, ready to start the next circuit.
4
Contact phone: +371 28818088, +371 29149923 E-mail: info@centrometal.lv Homepage: www.centrometal.lv
Thermal Mono System Application Heating + Cooling + Domestic hot water Heat pump type Outdoor unit only (Compressor part and hydronic box are integrated) Refrigerant piping Inside outdoor unit Water piping Between outdoor unit and indoor heating appliances Installation Only need to install water piping Combinational parts (field supply) Floor heating coils Fan coil units Low temperature radiators Domestic hot water tank Auxiliary heat sources (such as solar collector,boiler and gas furnace) User interface Solar panel Low temperature radiator Mono Outdoor unit Domestic water tank Floor heating
Mono outdoor unit Mono outdoor unit absorbs heat from the outside air and transfers it to the water in the hydronic modular, through water to supply heat to indoor side. Domestic water tank (field supplied) Domestic water tank is used to supply sanitary hot water. The hot water from the Mono unit release heat to water in the tank through the inner coil, and cold water in the tank is heated. Usually there is an addition electric heater in the domestic water tank. User interface User interface is connecting to the Mono unit through signal wire; it mainly uses for ON/OFF the unit, mode setting, temperature adjusting and timer setting.
Mono system
Example: Application 2: Thermal Mono for space heating and domestic hot water Room thermostat is not connected to the Mono unit but to motorized valve. Each room’s temperature is regulated by the motorized valve on every water circuit. Sanitary hot water is delivered by the domestic hot water tank connected to the Mono unit. In this situation, bypass valve is necessary.
•
Typical Applications
Specifications Mono 5-30kW
Split system
Thermal Split System Application Heating + Cooling + Domestic hot water Heat pump type Outdoor unit (Compressor part) + Indoor unit ( Hydronic box) Refrigerant piping Between outdoor unit and indoor unit Water piping Between indoor unit and indoor heating appliances Installation Refrigerant piping and water piping Combinational parts (field supply) Floor heating coils Fan coil units Low temperature radiators Domestic hot water tank Auxiliary heat sources (such as solarcollector,boiler and gas furnace) User interface Solar panel Low temperature radiator Split Domestic water tank Outdoor unit Hydronic box Floor heating
Split type outdoor unit The outdoor unit absorbs heat from the outside air and transfers it inside through refrigerant piping. Hydronic box The hydronic box heats the water by refrigerant from outdoor unit. The heated water circulates through heating device such as floor heating, radiators, fan coil units as well as inner coil of domestic hot water tank. Domestic water tank (field supplied) Domestic water tank is used to supply sanitary hot water. The hot water from the hydronic box release heat to water in the tank through the inner coil, and cold water in the tank is heated. Usually there is an addition electric heater in the domestic water tank. User interface User interface is connecting to the hydronic box through signal wire; it mainly uses for ON/OFF the unit, mode setting, temperature adjusting and timer setting.
Specifications
Flexible installation and easy maintenance • Compact structure, independent hydronic box, flexible installation. • Refrigerant pipes run indoors from the outdoor unit, no need extra insulation of water piping to protect from freezing up. • No need extra refrigerant within 10m refrigerant pipe length.
Example: Application 2: Thermal Split type unit for space heating and domestic hot water Room thermostat is not connected to the indoor hydronic box but to motorized valve. Each room’s temperature is regulated by the motorized valve on every water circuit. Sanitary hot water is delivered by the domestic hot water tank connected to the split indoor unit. In this situation, bypass valve is necessary.
•

SPLIT 6-16kW

(with hydronic box)

6kW
Specifications - SPLIT:
10kW
16kW P3
Power supply
V/ph/Hz
220-240/1/50
380-415/3/50
Capacity
Rated input
COP
Capacity
Rated input
COP
Capacity
Rated input
EER
Capacity
Rated input
EER
Seasonal space heating
SCOP⁶
ηs
SEER⁶
Energy efficiency class⁶
seasonal space heating efficiency
Maximum overcurrent protection (MOP)
Minimum circuit ampacity (MCA)
Sound power level⁷
Compressor
Outdoor fan
Net dimension (WxHxD)
Packed dimension (WxHxD)
Net/Gross weight
Operating temperature range
Refrigerant
Piping connections
Installation height difference
Heating² A7/W35
Heating³ A7/W55
Cooling⁴ A35/W18
Cooling⁵ A35/W7
Main flow 35°C
Main flow 55°C
Main flow 35°C
Main flow 55°C
Main flow 35°C
Main flow 55°C
Main flow 7°C
Type
Air flow
Cooling
Heating
DHW
Type
Factory charge
Type
Liquid phase
Gas phase
Min. pipe lenght
Max. pipe lenght
Outdoor unit above
Outdoor unit below
kW
kW
kW
kW
kW
kW
kW
kW
A
A
dB(A)
m³/h
mm
mm
kg
°C
°C
°C
kg
mm
mm
m
m
m
m
6.20
1.24
5.00
6.00
2.00
3.00
6.55
1.34
4.90
7.00
2.33
3.00
A+++
A++
4.95
3.52
195.0
137.9
5.34
18
14
58
Twin rotary DC inverter
2770
1008x712x426
1065x800x485
58/64
-5 to 43
-25 to 35
-25 to 43
R32
1.50
Ø 6.35
30
20
20
10.00
2.00
5.00
9.50
3.06
3.10
10.00
2.08
4.80
8.20
2.48
3.30
A+++
A++
5.20
3.47
204.8
135.7
5.98
189
17
60
4030
1118x865x523
1180x890x560
77/88
-5 to 43
-25 to 35
-25 dto 43
R32
1.65
Ø 9.52
30
20
20
Flare
2
Ø 15.9
16.00
3.56
4.50
16.00
5.52
2.90
14.90
4.38
3.40
14.00
5.71
2.45
A+++
A++
4.62
3.41
181.6
133.2
4.67
14
12
68
4650
1118x865x523
1180x890x560
112/125
-
-25 to 35
-25 to 43
R32
1.84
Ø 9.52
30
20
20
6kW
10kW
16kW
Hydronic box :
Compatible outdoor unit model
Sound power level )
Sound power leve)
Dimensions (WxHxD)
Net/Gross weight
Water circuit
Water flow range
Refrigerant circuit
Backup electric heater
Main flow temperature range
Room temperature range
Piping connections
Safety valve
Internal water volume
Drainage
Expansion vessel
Water side heat exchanger
Type
Water pump head
Liquid phase
Gas phase
Standard mounted
Optional
Capacity steps
Cooling
Heating
DHW
V/Ph/Hz
dB(A)
mm
kg
R
bar
L
mm
L
m
m³/h
mm
mm
kW
kW
°C
°C
°C
°C
6
220-240/1/50
38
420x790x270
37/43
1"
3.0
5.0
ø25
8.00
Plate
9.0
0.4-1.25
ø 6.35
ø 15.9
3
2/4
1
10
220-240/1/50
42
400x850x427
37/43
1"
3.0
5.0
ø25
8.00
Plate
9.0
0.4-2.10
ø 9.52
ø 15.9
3
2/4
1
5 to 25
25 to 65
30 to 60
5 to 35
16
220-240/1/50
43
420x790x270
39/45
1"
3.0
5.0
ø25
8.00
Plate
9.0
0.7-3.00
ø 9.52
ø 15.9
9
2/4
1
5kW
9kW
16kW P3
22kW P3
30kW P3
Power supply
Capacity
Rated input
COP
Capacity
Rated input
COP
Capacity
Rated input
EER
Capacity
Rated input
EER
Seasonal space heating
Energy efficiency class⁶
SCOP⁶
ηs
SEER⁶
Sound power level⁷
Sound pressure level⁷
Compressor
Outdoor fan
Water side heat exchanger type
Water pump
Expansion vesse
Net dimensions (WxHxD)
Packed dimensions (WxHxD)
Net/Gross weight
Piping connections (water)
Safety valve set pressure (water)
Operating temperature range
Main flow temperature range
Reftigerant
Backup electric heatere
Heating² A7/W35
Heating³ A7/W55
Cooling⁴ A35/W18
Cooling⁵ A35/W7
Main flow 35°C
Main flow 55°C
Main flow 35°C
Main flow 55°C
Main flow 35°C
Main flow 55°C
Main flow 7°C
Main flow 18°C
Type
Air flow
Pump head
Volume
Cooling
Heating
DHW
Cooling
Heating
DHW
Type/GWP
Factory charge
Standard mounted
Optional
Capacity steps
V/ph/Hz
kW
kW
kW
kW
kW
kW
kW
kW
m
L
mm
mm
kg
R
bar
°C
°C
°C
°C
°C
°C
220-240/1/50
6.50
1.23
5.30
6.30
1.97
3.20
6.50
1.28
5.10
5.50
1.69
3.25
A++
A+++
5.12
3.59
201.8
140.7
5.09
7.81
60
48
3900
9.0
970x1190x560
865x1040x410
5.0
87/103
87/103
1"
-25 to 35
-5 to 43
5 to 25
-25 to 43
20 to 60
25 to 65
1.25
-
2/4
1
kg
kW
kW
1.25
-
2/4
1
10.00
2.13
4.70
9.40
3.03
3.10
10.00
2.33
4.30
9.00
3.10
2.90
5.12
3.71
201.9
145.5
5.08
8.31
65
53
4500
120/136
1.8
-
2/4
1
16.00
3.56
4.50
16.00
5.61
2.85
15.40
3.67
4.20
14.00
4.83
2.90
4.84
3.59
190.5
140.7
5.14
7.54
75
59
5200
380-415/3/50
A+++
A++
Twin rotary DC inverter
9.0
5.0
865x1040x410
970x1190x560
Plate
5/4"
3
-5 to 43
-25 to 35
-25 to 43
5 to 25
25 to 65
20 to 60
R32 / 675
177/206
5.0
-
2/4
1
22.00
5.00
4.40
22.00
8.30
2.65
23.00
5.00
4.60
21.00
7.12
2.90
4.53
3.23
178
126
4.70
5.67
73
59.8
10650
380-415/3/50
A+++
A++
12.0
8.0
1129x1558x440
1220x1735x565
5/4"
-5 to 46
-25 to 35
-25 to 43
5 to 25
25 to 65
30 to 60
177/206
5.0
-
2/4
1
30.10
7.70
3.91
30.00
13.04
2.30
31.00
7.75
4.00
29.50
11.57
2.55
4.20
3.15
165
123
4.49
5.71
77
63.5
11200
380-415/3/50
A++
A+
12.0
8.0
1129x1558x440
1220x1735x565
5/4"
-5 to 46
-25 to 35
-25 to 43
5 to 25
25 to 65
30 to 60
1. EU standards: EN14511: 2016; EN14825: 2016; EN50564: 2011; EN12102: 2017; (EU) N° 811/2013; (EU) N° 813/2013; OJ 2014/C 207/02; OJ 2017/C 229/01. 2. Outdoor air temperature 7°C, 85% R.H.; water temperature main flow/return 35/30°C.
3. Outdoor air temperature 7°C, 85% R.H.; water temperature main flow/return 55/47°C. 4. Outdoor air temperature 35°C; water temperature main flow/return 18/23°C. 5. Outdoor air temperature 35°C; water temperature main flow/return 7/12°C. 6. Seasonal space heating energy efficiency class tested in average climate conditions
