Hot water stoves CentroPelet ZV are wood pellet firing
stoves intended for heating the room with air by means of a
built-in fan and water through the radiator central heating.
They are made of steel with modern design and high
efficiency.
They have a built-in circulation pump, safety valve, pressure
switch, expansion vessel and automatic vent valve. They are
standardly supplied with a remote control and digital control
that can be used to manage the work of the stove and select
the weekly programme.
HEATING TECHNIQUE
MODERN DESIGN
These stoves with their modern lines fit perfectly into your home.WARM AIR DISTRIBUTIO
The possibility of channel distribution of warm air to other rooms.SMART FUNCTIONS
The pellets are automatically supplied by sling conveyor and burned automatically with electric heater.PRODUCT CHARACTERISTICS:
REMOTE CONTROL
Control the stove functions from the comfort of the armchair with the intuitive remote control.
•
Pellet firing stove for hot air heating by blowing hot air into the
space.
•
Possibility of line distribution of hot air to other rooms. Two lines on
the rear side of the stove can be connected to other rooms by tubes.
The total maximum length of the line is 4m.
•
It is possible to manually control how much air is distributed into the
room, and how much by lines.
•

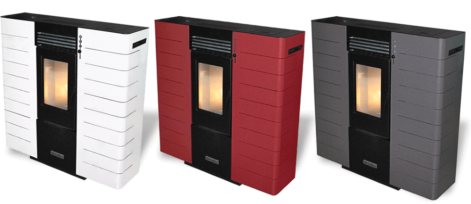

It is available in three colours: white, gray, red.
•
The stove is supplied with wood pellets using a screw conveyor, and
the pellets are fired by an electric heater.
•
The stove can be turned on/off automatically.
•
The function of economical operation allows automatic output
reduction when the temperature room is getting closer to default.
•
The possibility of adjusting the switching time using the remote
control.
•
Additionally you can order a Wi-Fi module (ECO V9) which enables
monitoring the temperature and controlling the stove operation by a
mobile application.
•
Built-in pellet tank.

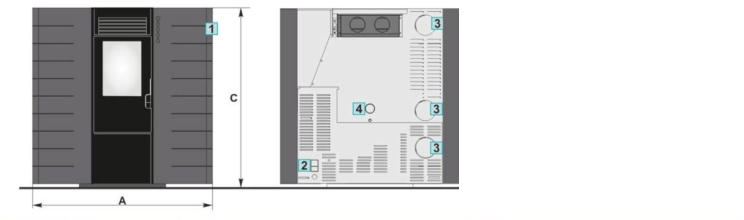

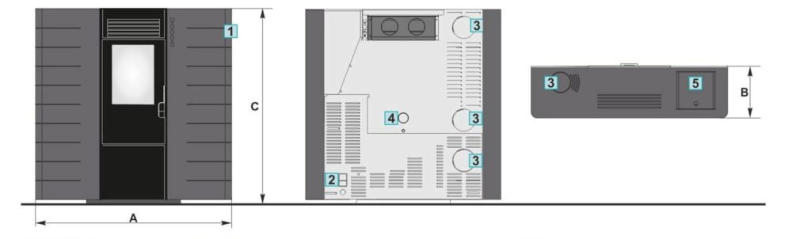

BASIC DIMENSIONS:
Heat output
kg/h
%
Ø mm
Pellet consume
Efficiency
Flue gas tube connection
Tank capacity
Autonomy
CentroPelet ZS 10
kg
Power consume at nominal power
Dimensions (w/d/h)
Dimensions for boiler planning
Net weight
h
W
mm
кг
kW
0,62-1,98
92,66-95,93
80
17
11-24
100
935*280*935
0,785
100
ZS 10
2,92-9,01
m
2
Delivery:
Stove with the regulation
control in cardboard
packaging

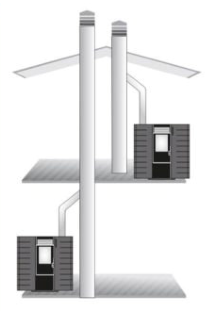

Flue gas exhaust:
One stove per one chimney

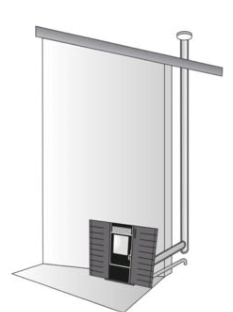

Flue gas exhaust:
External flue pipes that should be
connected in accordance with the
local regulation.

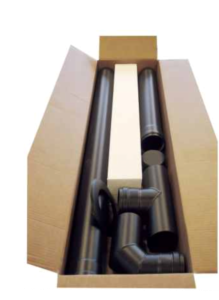

Additional equipment:
set of flue pipes for CentroPelet ZS
for the façade connection (1m flue
pipe, 0.5m flue pipe, T- piece
cover, T-piece, silicon rosette, 90°
bend, 0.25m flue pipe, 45° bend)
Regulation
Main switch
Connection for flue gas exhaust
Connection for fresh air intake
Pellet tank

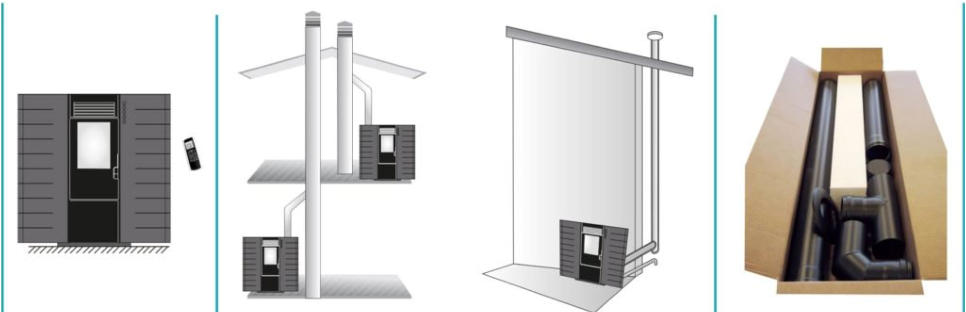

DELIVERY AND OBLIGATORY ADDITIONAL EQUIPMENT:
*The internal diameter and height of the chimney must be strictly in line with
the boiler's nominal capacity. It must comply with all national regulatory docu-
ments and manufacturer's recommendations.
Contact phone: +371 28818088, +371 29149923
E-mail: info@centrometal.lv
Homepage: www.centrometal.lv
Wood pellet stoves CentroPelet ZS 10
Hot water stoves CentroPelet ZV are wood pellet firing
stoves intended for heating the room with air by means of a
built-in fan and water through the radiator central heating.
They are made of steel with modern design and high
efficiency.
They have a built-in circulation pump, safety valve, pressure
switch, expansion vessel and automatic vent valve. They are
standardly supplied with a remote control and digital control
that can be used to manage the work of the stove and select
the weekly programme.
MODERN DESIGN
These stoves with their modern lines fit perfectly into your home.WARM AIR DISTRIBUTIO
The possibility of channel distribution of warm air to other rooms.SMART FUNCTIONS
The pellets are automatically supplied by sling conveyor and burned automatically with electric heater.PRODUCT CHARACTERISTICS
REMOTE CONTROL
Control the stove functions from the comfort of the armchair with the intuitive remote control.
•
Pellet firing stove for hot air heating by blowing hot air into the
space.
•
Possibility of line distribution of hot air to other rooms. Two
lines on the rear side of the stove can be connected to other
rooms by tubes. The total maximum length of the line is 4m.
•
It is possible to manually control how much air is distributed
into the room, and how much by lines.
•
It is available in three colours: white, gray, red.
•
The stove is supplied with wood pellets using a screw
conveyor, and the pellets are fired by an electric heater.
•
The stove can be turned on/off automatically.
•
The function of economical operation allows automatic output
reduction when the temperature room is getting closer to
default.
•
The possibility of adjusting the switching time using the remote
control.
•
Additionally you can order a Wi-Fi module (ECO V9) which
enables monitoring the temperature and controlling the stove
operation by a mobile application.
•
Built-in pellet tank.
BASIC DIMENSIONS:
Heat output
kg/h
%
Ø mm
Pellet consume
Efficiency
Flue gas tube connection
Tank capacity
Autonomy
CentroPelet ZS 10
kg
Power consume at nominal power
Dimensions (w/d/h)
Dimensions for boiler planning
Net weight
h
W
mm
кг
kW
0,62-1,98
92,66-95,93
80
17
11-24
100
935*280*935
0,785
100
ZS 10
2,92-9,01
m
2
Delivery:
Stove with the regulation
control in cardboard packaging
Flue gas exhaust:
One stove per one chimney
Flue gas exhaust:
External flue pipes that should
be connected in accordance
with the local regulation.
Additional equipment:
set of flue pipes for CentroPelet
ZS for the façade connection
(1m flue pipe, 0.5m flue pipe, T-
piece cover, T-piece, silicon
rosette, 90° bend, 0.25m flue
pipe, 45° bend)
Regulation
Main switch
Connection for flue gas exhaust
Connection for fresh air intake
Pellet tank
DELIVERY AND OBLIGATORY ADDITIONAL
EQUIPMENT:
Contact phone: +371 28818088, +371 29149923
E-mail: info@centrometal.lv
HEATING TECHNIQUE
Wood pellet stoves
CentroPelet ZS 10
Contact phone: +371 28818088, +371 29149923
E-mail: info@centrometal.lv
Homepage: www.centrometal.lv
*The internal diameter and height of the chimney must be strictly in
line with the boiler's nominal capacity. It must comply with all
national regulatory documents and manufacturer's
recommendations.
