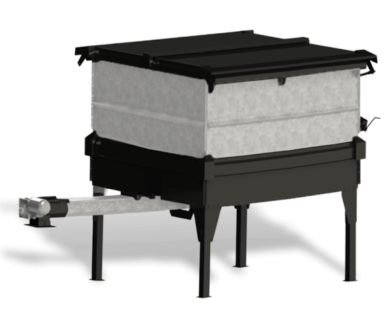

WOOD CHIP TANKS WITH A MIXER

AND FEEDER

These systems are designed for storage and transportation of wood chips to the firing equipment of BIO-CK P Unit, EKO-CKS Multi, EKO- CKS Multi Plus. They are manufactured so that they can be placed both indoors and outdoors. They are equipped with a screw transporter, an electric motor with gearbox and a wood chips mixer. Tanks are filled from the upper side after opening the lid and wood chips may contain up to 35% moisture. The system is operated by the digital control of the boiler in its standard configuration. Storage tanks are produced in following dimensions: 2,8m³, 5,5m³, 9m³, 18m³.
PRODUCT CHARACTERISTICS
VERSATILE Designed so that it can be placed in a covered area or open outdoors.
EQUIPPED Equipped with a sling conveyor, an electric motor with a gearbox and a mixer of wood chopper.
REGULATION Digital control manages operation of the tank in the standard configuration.
DIMENSIONS The containers are made in the following dimensions: 2.8m³, 5.5m³, 9m³, 18m³.

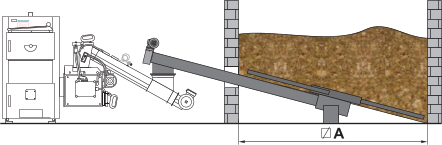

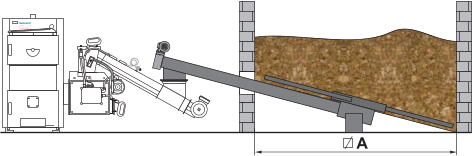

WOOD CHIP FEEDING SYSTEMS FROM A STORAGE- ROOM (ENCLOSED SPACE):
A
Wood chip feeding systems from storge - room

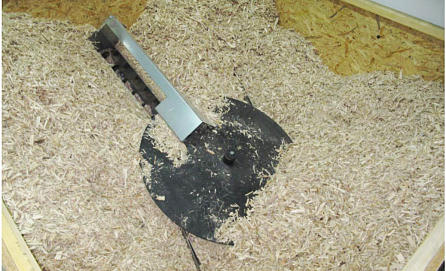

Wood chip storage with the mixer connected to the transorter
These systems are designed for wood chip transfer (max. moisture content up to 35 %) from a storage room to the firing equipment BIO-CK P Unit, EKO-CKS Multi, EKO-CKS Multi Plus. They are equipped with a rotating plate with springs for wood chip mixing 1,2 5m) connected to a screw transporter (2,5-8m) which is driven by an electric motor with gearbox. The system is operated by the digital control of the boiler in its standard configuration. Centrometal d.o.o. shall not be responsible for possible incorrect data caused by error made in transcription and all figures and diagrams are for explanatory pur - poses only and relevant adjustment have to be made at the spot. In any case, it reserves the right to modify its products as deemed to be required and useful with - out any prior notification.
