HEATING TECHNIQUE
PRODUCT CHARACTERISTICS
QUIET Quiet work and modern design makes them acceptable for installation in any part of the home or apartment.
MODULATION Modulating digital control optimally manages the op- eration of an electric heater so as to optimize the power consumption of the electric boiler.
RELIABLE Proven technical solutions that include all the benefits of modulating regulating the operation of the electrograph, make these boilers safe and reliable in operation.
COMPACT El-Cm Compact boilers are a small “boiler” because all the essential parts are integrated into a compact housing.

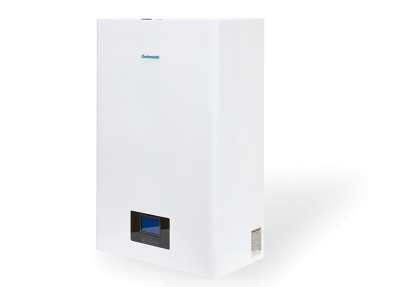

Electric boilers

El-Cm ePlus 6-27 kW

  
Electric boilers engineered for electrical heating with nominal heat outputs of 6, 9, 12, 18 and 24 kW. Standard equipment built in electric boilers includes: body of the boiler with electric heaters, circulation pump, expansion vessel, safety elements (safety valve, safety thermostat and a pressure switch), filling/draining cock and modular digital control. The modular digital control assures optimal operation of the electric heater in a way that optimizes electric energy consump- tion with the rated thermal output of the electric boiler. Absolutely noiseless operation, modern design and small di- mensions make them acceptable for installation anywhere in a house or apartment, since they do not need to be connected to a chimney and need no additional fresh air supply. Low weight and easy assembly. Connection of the El-Cm ePlus 6 and 9 kW to a single phase power supply is possible. El-Cm ePlus operates like a mini boiler room because all its es- sential parts are integrated into the single boiler body.

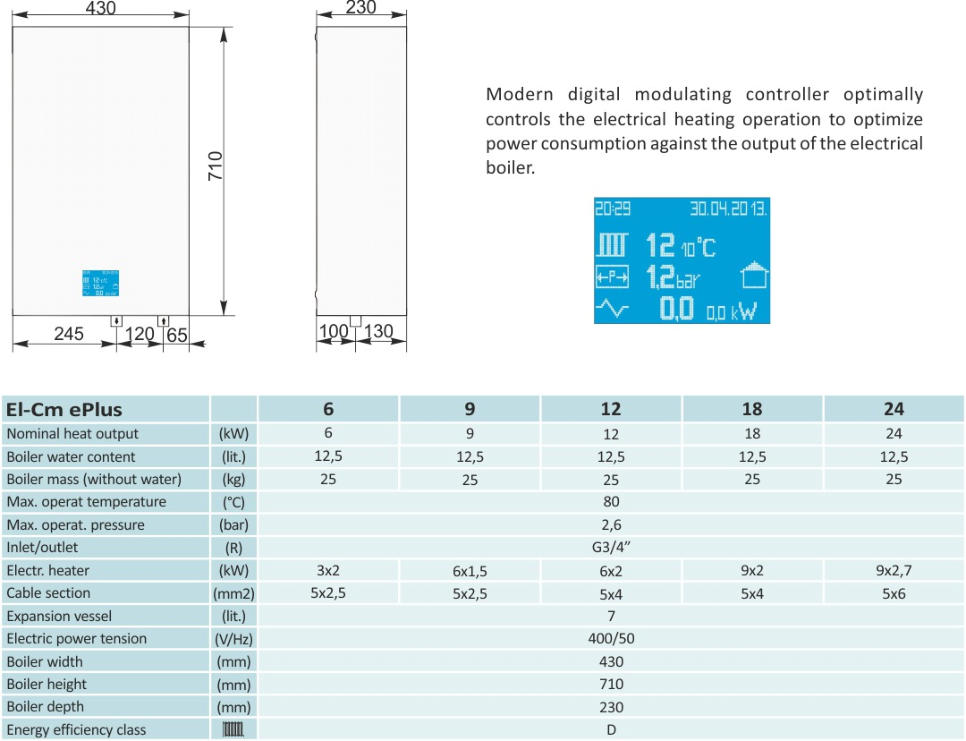

BASIC DIMENSIONS

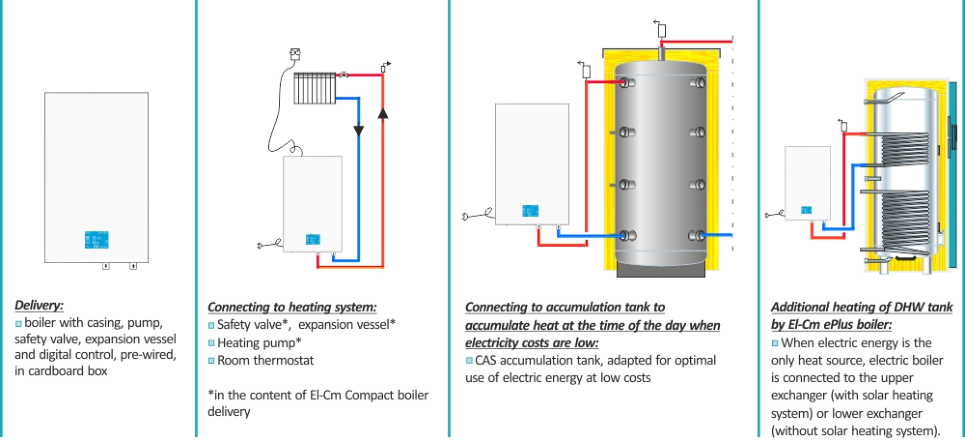

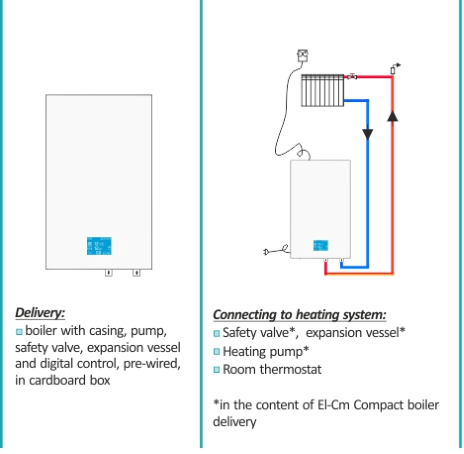

DELIVERY AND OBLIGATORY ADDITIONAL EQUIPMENT
TECHNICAL INSTRUCTIONS / BROCHURES
TECHNICAL INSTRUC- TIONS El-Cm ePlus 6-27 kW (PDF)
Contact phone: +371 28818088, +371 29149923 E-mail: info@centrometal.lv Homepage: www.centrometal.lv

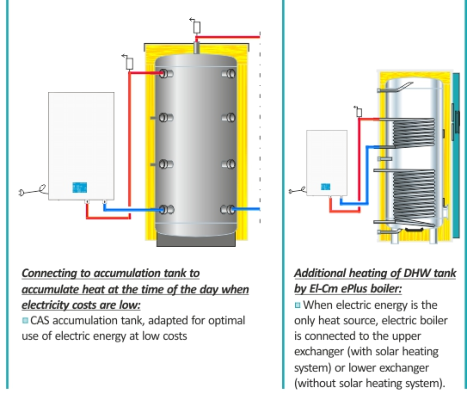

The El-Cm ePlus, range of electric boilers (with nominal heat output of 6, 9, 12, 18 and 24 kW) is designed for installation in smaller premises as a primary as well as secondary heat source. Today they are frequently used for heating up domestic hot water in accumulator tanks connected to the heat exchanger of the boiler. The El-Cm ePlus is equipped with a circulation pump, expansion vessel, the most modern modulating digital controller and appropriate safety elements. Of modern design, they can be installed anywhere in a house because of their ab- solutely noiseless operation and because they do not need to be connected to a chimney. The wide application of modern technologies and the quality of the ma- terial used as well as thoroughly tested operation, which include a modulating ac- tivating of the electric heaters, to prevent electric surges on the power supply, make these boilers safe and reliable.
CENTROMETAL Electric boilers El-Cm ePlus 6-27 kW
