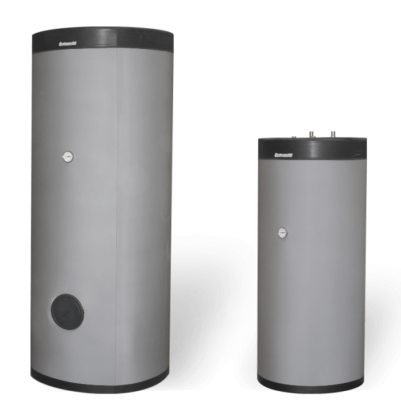

TB water heaters, with volumes of 120, to 800 litres, are engi- neered for both heating and the accumulation of domestic hot water with the connection to a boiler circuit or to another heat source, being part of a designed system configuration. Often they are connected to solar systems to give additional accumulation with STEB solar water heaters. These water heaters are made out of stainless steel, which guaran- tees a high level of hygiene. Extensive application of modern tech- nologies and the use of high quality materials as well as their fully tested design and build, provides efficient heat exchange and neg- ligible loss of temperature. Manufactured in accordance with ISO 9001 and ISO 14001.

PRODUCT CHARACTERISTICS:

EFFECTIVE

By using modern technologies and proven technical solutions, high heat transfer coefficients and negligi- ble environmental losses are provided.

SOLAR SYSTEMS

They are often incorporated with solar sys- tems as an additional accumulation with STEB solar boilers.
Tehniskie parametri
Accumulation tanks TB 120-800 lit

STEEL

The boilers are made of stainless steel, guar- anteeing high hygiene conditions.

ISOLATION

The insulation layer of 80 mm thick effectively pro- tects the boiler from heat losses.

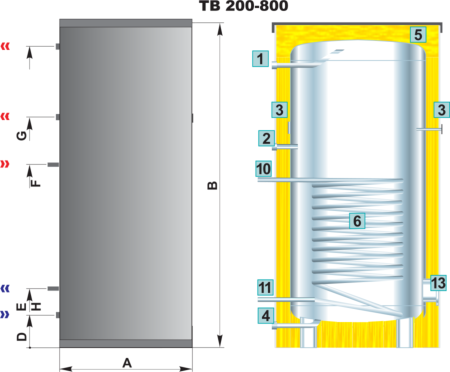

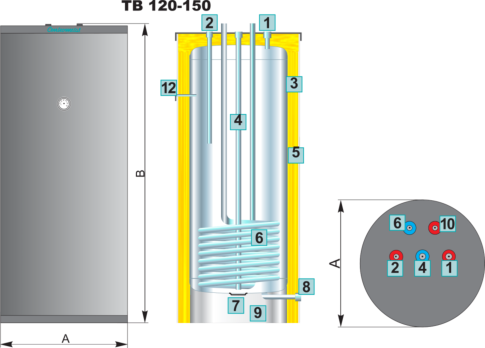

BASIC DIMENSIONS:

3
2
1 4
- Hot water connection - Recirkulation - Tube for temp sensor. - Cold water connection
6
5 8
7
- Thermal insulation - Tube heat exchanger - Opening for cleaning (TB 120-150) - Water draining connection
9 11
10 12
- Base of the heater - Boiler water connection-inlet - Boiler water connection-outlet - Thermometer
13 - Opening for cleaning (TB-200-800)

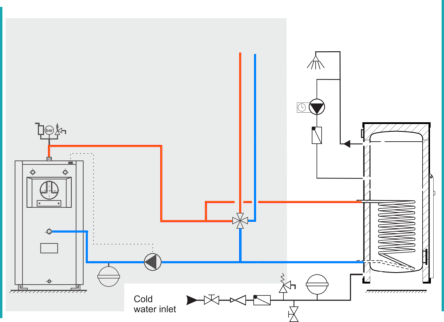

CONNECTING TO WATER SUPPLY:

Accumulation tanks TB 120-800 lit
TB water heaters, with volumes of 120, 150, 200, 300, 600 and 800 litres, are engineered for both heating and the accumulation of domestic hot water, with the connection to the boiler circuit or to another heat source being part of a designed system configuration. Suitable for integration into solar heating systems for additional heat accumulation, with STEB solar water heaters. Made of high quality stainless steel, which guarantees high standards of hygiene. The big surface area of the tube heat exchanger allows rapid heating of these large vol- umes of water. On TB 120, 150 and 200 boilers , connections are located on the top of the boiler, whereas on TB 300, 600 and 800 boilers they are located at the rear which enables sim- ple and fast connection into installations. It is possible to install a sensor into a sensor sleeve on the rear side of the boiler. The insulating layer, 80 mm thick, effectively protects the boiler from heat loss.
Contact phone: +371 28818088, +371 29149923 E-mail: info@centrometal.lv Homepage: www.centrometal.lv
HEATING TECHNIQUE
Accumulation tanks TB 120-800 lit CONNECTING TO WATER SUPPLY Accumulation tanks TB 120-800 lit CONNECTING TO WATER SUPPLY Accumulation tanks TB 120-800 lit BASIC DIMENSIONS Accumulation tanks TB 120-800 lit BASIC DIMENSIONS

Accumulation tanks TB (120-800 lit.)

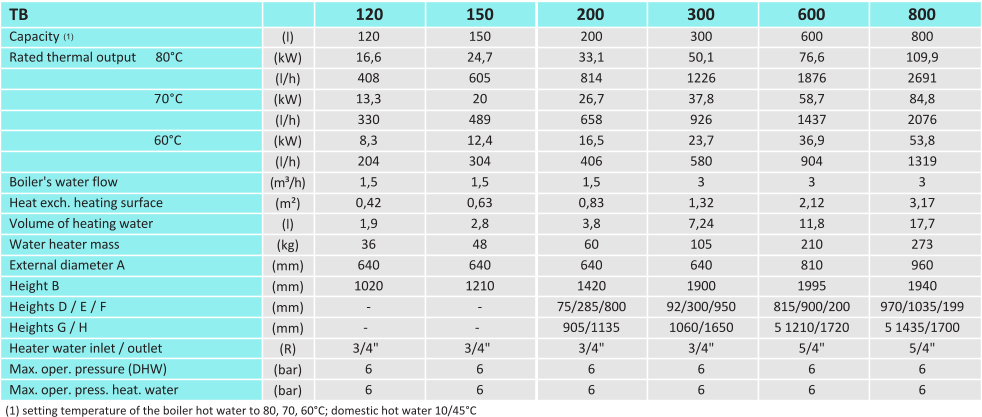

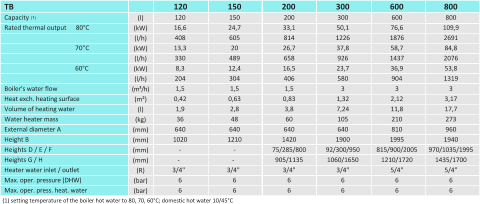

TB 120 Capacity Rated thermal output      80°C 70°C 60°C Boiler's water flow  Heat exch. heating surface  Volume of heating water  Water heater mass  External diameter A  Height B Heights D / E / F Heights G / H Heater water inlet / outlet Max. oper. pressure (DHW) Max. oper. press. heat. water (l) (kW) (l/h) (kW) (l/h) (kW) (l/h) (m³/h) (m²) (l) (kg) (mm) (mm) (mm) (mm) (R) (bar) (bar) 120 16,6 408 13,3 330 8,3 204 1,5 0,42 1,9 36 640 1020 - 3/4" 6  6 (1)	setting temperature of the boiler hot water to 80, 70, 60°C; domestic hot water 10/45°C (1) 150	200 300 600 800 150 24,7 605 20 489 12,4 304 1,5 0,63 2,8 48 640 1210 - 3/4" 6  6 200 33,1 814 26,7 658 16,5 406 1,5 0,83 3,8 60 640 1420 75/285/800 905/1135 3/4" 6  6 300 50,1 1226 37,8 926 23,7 580 3 1,32 7,24 105 640 1900 92/300/950 1060/1650 3/4" 6  6 600 76,6 1876 58,7 1437 36,9 904 3 2,12 11,8 210 810 1995 815/900/2005 1210/1720 5/4" 6  6 800 109,9 2691 84,8 2076 53,8 1319 3 3,17 17,7 273 960 1940 970/1035/1995 1435/1700 5/4" 6  6
