• CAS accumulation tanks are engineered for integration into central heating systems with solid fuel firing boilers (Bio-Tec, BioSolid, EKO-CK P (EKO-CK), EKO-CKB P (EKO-CKB), EKO-CKS, CentroPlus, CentroPlus-B…) in order to store the heat en- ergy and enable economical and efficient functioning of the boiler. CAS are produced in seven different sizes (volumes 325, 475, 740, 940, 1450, 2160, 2960, 3820 and 5055 litres) and in four types: as an accumulation tank (CAS), as an accumulation tank for sanitary hot water processing with a built in stainless steel water heater (CAS-B), with an built in tube exchanger for connecting the solar collector (CAS-S), as well as with the built in stainless steel water heater and an tube exchanger (CAS- BS). These options enable contemporaneous use of different kinds of renewable en- ergies, making them ecologically acceptable and economical in use. • With a CAS accumulation tank connected to the system, the boiler firing can be per- formed in a suitable period of the day. If outdoor temperatures are milder, the room heating and the sanitary water temperature levels can be maintained across several days. Accumulation tanks are produced in accordance with ISO 9001/2008.

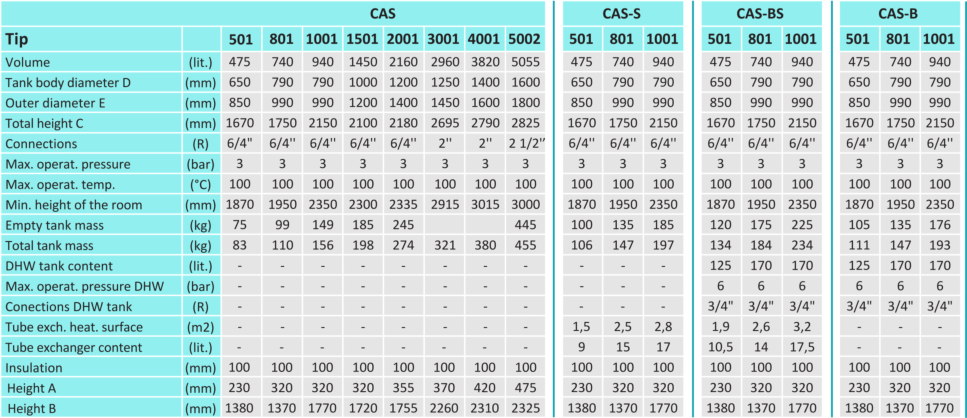

PRODUCT CHARACTERISTICS:

ISOLATION

They are well insulated with thermal insulation from the outside, bottom and top.

ISO

They are made of certified steel sheet ac- cording to ISO 9001 and ISO 14001 standards.

INTERCONNECTION

Containers can be interconnected to maximize total accumulation in the system.

EFFICIENT

Increase the efficiency and economy of solid fuel boilers.

• Designed to be connected to central heating systems in order to store heat energy. • Increases solid fuel firing boiler efficiency. • Made out of tested steel sheet in accordance with ISO 9001/2008. • Have good thermal insulation within a leatherette jacket. • Accumulation tanks can also be connected to each other as modules, in order to increase the total accumulationа.

SUGGESTED SIZING CRITERIA FOR CAS:

TANK CROSS-SECTION / DIMENSIONS:

DIAGRAM SHOWING CONNECTION OF 2 CAS ACCUMULATION TANKS TO

HEATING SYSTEM WITH A PHYROLYSIS BOILER:

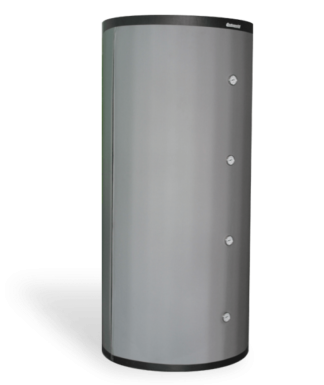

Accumulation tanks CAS, CAS-S, CAS-B, CAS-BS 325 – 5055 lit.

Produced in different sizes and types:

CAS 301 (325 lit.), CAS 501 (475 lit.), CAS 801 (740 lit.), CAS 1001 (940 lit.), CAS 1501 (1450 lit.), CAS 2001 (2160 lit.), CAS 3001 (2960 lit.) CAS 4001 (3820 lit.), CAS 5002 (5055 litres)- accumulation tank CAS-S 801 (740 lit.), CAS-S 1001 (940 lit.) – accumulation tank with an built in tube ex- changer for connecting the solar collector; CAS-B 501 (475 lit.), CAS-B 801 (740 lit.), CAS-B 1001 (940 lit.) – accumulation tank with a built in stainless steel water heater; CAS-BS 501 (475 lit.), CAS-BS 801 (740 lit.), CAS-BS 1001 (940 lit.) – accumulation tank with the built in stainless steel water heater and an tube exchanger for solar collectors. On order we can make bigger accumulation tanks, volume up to 200 000 liters

Accumulation tanks CAS, CAS-S, CAS-B,

CAS-BS (325 – 5055 lit.)

Phyrolysis boilers: min 50 liters of tank volume per each 1 kW of boiler output. Solid fuel boilers: min 30 litres of tank volume per each 1 kW of boiler output. Wood chips boilers: min 12 litres of tank volume per each 1 kW of boiler output. Wood pellets boilers: min 10 litres of tank volume per each 1 kW of boiler output

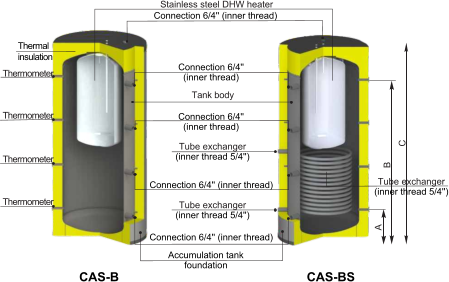

CAS-BS

CAS-B

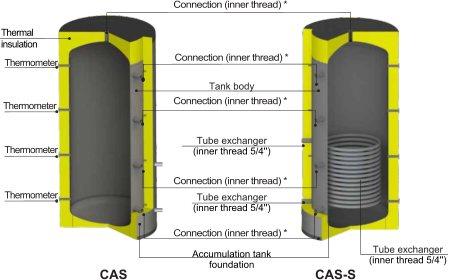

CAS CAS-S

Thermal insulation

Connection (inner thread) * Tank body

Thermometer

Connection (inner thread) * Tube exchanger (inner thread 5/4'') Connection (inner thread) * Tube exchanger (inner thread 5/4'') Connection (inner thread) * Accumulation tank foundation

Tube exchanger (inner thread 5/4'')

Connection (inner thread) *

Tank body

Connection 6/4'' (inner thread)

Thermal insulation Thermometer

Thermometer

Connection 6/4'' (inner thread) Connection 6/4'' (inner thread) Tube exchanger (inner thread 5/4'') Connection 6/4'' (inner thread) Tube exchanger (inner thread 5/4'') Connection 6/4'' (inner thread) Accumulation tank foundation

Tube exchanger (inner thread 5/4'')

Stainless steel DHW heater

Contact phone: +371 28818088, +371 29149923 E-mail: info@centrometal.lv Homepage: www.centrometal.lv

HEATING TECHNIQUE

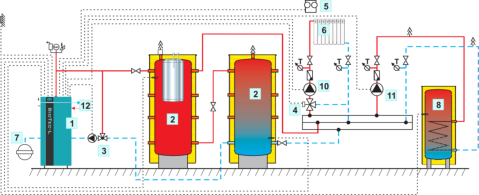

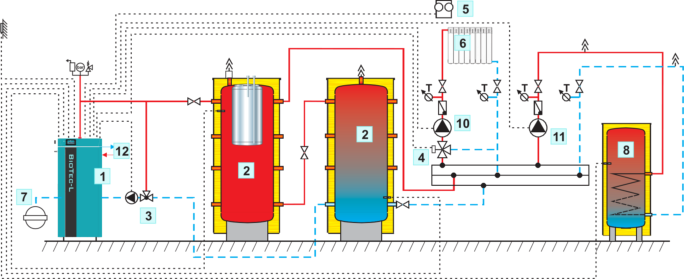

DIAGRAM SHOWING CONNECTION OF 2 CAS ACCUMULATION TANKS TO HEATING SYSTEM WITH A PHYROLYSIS BOILER

Boiler "BioTec-L" Accumulation tank "CAS-B" i CAS 3-way thermostat valve (60°C) Motor operated 3-way mixing valve Room corrector Heating circuit Expansion vessel for closed central heating systems Sanitary hot water accumulation tank (SKB/LKB/TB/STEB) Pump P1 - boiler Pump P2 - heating Pump P3 - domestic hot water DHW Boiler thermal protection

1 2 3 4 5 6 7 8 9 10 11 12

• CAS accumulation tanks are engineered for integration into central heating systems with solid fuel firing boilers (Bio-Tec, BioSolid, EKO-CK P (EKO-CK), EKO-CKB P (EKO-CKB), EKO-CKS, CentroPlus, CentroPlus-B…) in order to store the heat energy and enable economical and efficient functioning of the boiler. CAS are produced in seven different sizes (volumes 325, 475, 740, 940, 1450, 2160, 2960, 3820 and 5055 litres) and in four types: as an accumulation tank (CAS), as an accumulation tank for sanitary hot water processing with a built in stainless steel water heater (CAS-B), with an built in tube exchanger for connecting the solar collector (CAS-S), as well as with the built in stainless steel water heater and an tube exchanger (CAS-BS). These options enable contemporaneous use of different kinds of renewable energies, making them eco- logically acceptable and economical in use. • With a CAS accumulation tank connected to the system, the boiler firing can be performed in a suitable period of the day. If outdoor temperatures are milder, the room heat- ing and the sanitary water temperature levels can be maintained across several days. Accumulation tanks are produced in accordance with ISO 9001/2008.

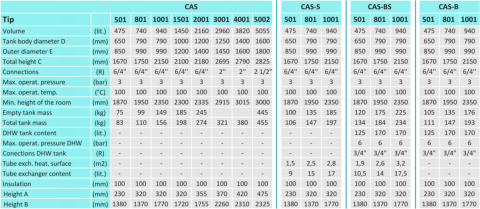

PRODUCT CHARACTERISTICS:

ISOLATION They are well insulated with thermal insulation from the outside, bottom and top.

ISO They are made of certified steel sheet ac- cording to ISO 9001 and ISO 14001 standards.

INTERCONNECTION Containers can be interconnected to maximize total accumulation in the system.

EFFICIENT Increase the efficiency and economy of solid fuel boilers.

SUGGESTED SIZING CRITERIA FOR CAS:

TANK CROSS-SECTION / DIMENSIONS:

DIAGRAM SHOWING CONNECTION OF 2 CAS ACCUMULATION TANKS TO HEATING SYSTEM WITH A PHYROLYSIS BOILER:

Produced in different sizes and types: CAS 301 (325 lit.), CAS 501 (475 lit.), CAS 801 (740 lit.), CAS 1001 (940 lit.), CAS 1501 (1450 lit.), CAS 2001 (2160 lit.), CAS 3001 (2960 lit.) CAS 4001 (3820 lit.), CAS 5002 (5055 litres)- ac- cumulation tank CAS-S 801 (740 lit.), CAS-S 1001 (940 lit.) – accumulation tank with an built in tube exchanger for connecting the solar collector; CAS-B 501 (475 lit.), CAS-B 801 (740 lit.), CAS-B 1001 (940 lit.) – accumulation tank with a built in stainless steel water heater; CAS-BS 501 (475 lit.), CAS-BS 801 (740 lit.), CAS-BS 1001 (940 lit.) – accumulation tank with the built in stainless steel water heater and an tube exchanger for solar collectors. On order we can make bigger accumulation tanks, volume up to 200 000 liters
