CENTROMETAL BIO-CK P Unit

25-100kW

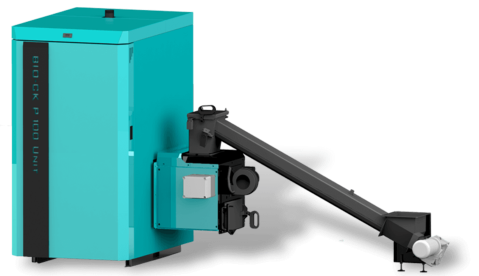

Equipment for central heating systems BIO-CK P Unit (nominal heat output from 25 to 100 kW) is designed for burning wood chips. It consists of a hot water boiler BIO-CK P, a burner with the fuel transporter and digital boiler control. A fuel tank with a transporter and mixer should be added to the BIO-CK P Unit . This equipment is designed for small and medium sized premises, as a main or, nowadays more often, as an alternative heat source.
It is distinguished by a successful combination of modern technologies and quality construction materials s well as simplicity of installation and use. Proven technical solutions make it safe and reliable in operation. It is manufactured in accordance with the standards EN 303-5 and ISO 9001; ISO 14001.

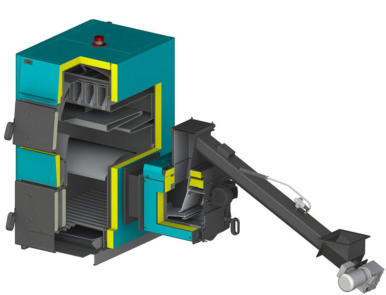

Central heating equipment designed for wood chips and wood shavings burning sized P16A-P45A (G30-G50) and with nominal heat output from 25 to 100 kW. Maximum permitted fuel moisture content is 35% (M35). A fuel tank with a transporter and mixer should be added to the BIO-CK P Unit. Available as additional equipment is woodchips storage to be installed indoors or outdoors as well as a wood chips mixer with a transporter to be installed inside into existing storage/room. Optionally the boiler can be ordered with burner mounted on left or right side. The fan and electrical heater positioned in the burner, operated by the controller, ignite automatically and maintain the flame. A carefully sized combustion chamber with triple pass flue gas flow assure boiler operation at high efficiency. This makes the boiler very economical in use. The combustion chamber is made out of a high quality sheet metal (5 mm thickness). Thermal safety system can be connected in through pre-prepared apertures. The body of the boiler is delivered separately from the casing with thermal insulation, the burner with fuel feeder and the boiler digital controller which enables easier transportation and assembly with minimum risk. Basic boiler delivery includes a thermometer and cleaning set. Required power supplies: 380/400 V. BIO-CK P Unit can be installed directly to heating system or through accumulation tank (CAS) with a minimum volume of 12 l/kW and 3-way thermal valve on 60°C. Option of additional installation of flue gas extraction fan to boiler’s flue gas exhaust.
PRODUCT CHARACTERISTICS
HIGH QUALITY A successful blend of modern technology and high quality construction materials with easy installation and use.
EFFICIENT Keeping the combustion gases in the three passages ensures a high degree of boiler utilization, making it “economical”.nd high quality construction materials with easy installation and use.
AUTOMATION The fan and electric heater located in the burner, driven by regulation, automatically burn off fuel and maintain flame.
INSTALLATION Delivered in parts that allows easy transportation and installation and reduces the risk of damage
BIO-CK P Unit
25
40
60
100

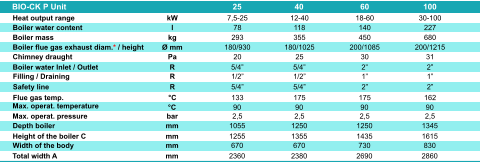

Heat output range
Boiler water content
Boiler mass
Boiler flue gas exhaust diam.* / height
Chimney draught
Boiler water Inlet / Outlet
Filling / Draining
Safety line
Flue gas temp.
Max. operat. temperature
Max. operat. pressure
Depth boiler
Height of the boiler C
Width of the body
Total width A
kW
l
kg
Ø mm
Pa
R
R
R
°C
°C
bar
mm
mm
mm
mm
7,5-25
78
293
180/930
20
5/4”
1/2”
5/4”
133
90
2,5
1055
1255
670
2360
12-40
118
355
180/1025
25
5/4”
1/2”
5/4”
175
90
2,5
1250
1355
670
2380
18-60
140
450
200/1085
30
2”
1”
2”
175
90
2,5
1250
1435
730
2690
30-100
227
680
200/1215
31
2”
1”
2”
162
90
2,5
1345
1615
830
2860
*The chimney inner diameter has to be determined according to the boiler rated thermal output and the height of the chimney and almost always it has to be bigger than the diameter of the flue gas exhaust.

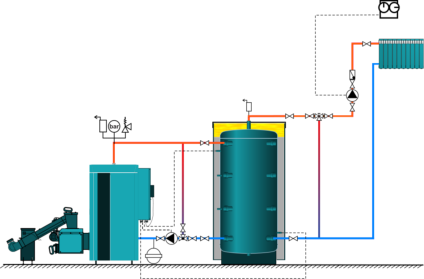

DELIVERY AND OBLIGATORY ADDITIONAL EQUIPMENT:
bar bar T
Delivery: Boiler body BIO-CK P with casing Wood chips burner Digital boiler control with power distribution cabinet and control unit Burner extension (only on BIOCK P Gotfire Unit 25, 40 and 60) Cleaning set

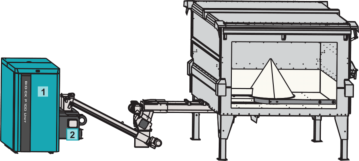

ADDITIONAL EQUIPMENT A Wood chips storage with mixer attached to transporter for indoor/outdoor installation
1 2 1 2

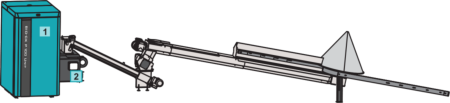

ADDITIONAL EQUIPMENT B Transporter with mixer for supply of wood chips from storage/room

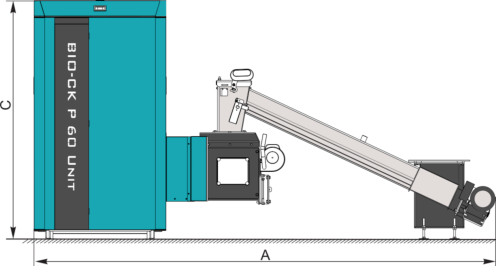

C A
Contact phone: +371 28818088, +371 29149923 E-mail: info@centrometal.lv Homepage: www.centrometal.lv
