EKO-CUP V3 steel hot water boilers (heat output range 0,8-1,5 MW) and EKO-CUP SV3 (heat output range 1,5-2,5MW) are engineered to meet heat- ing requirements in middle sized or large premises, or to provide the heat source for manufacturing or processing. This boiler can be installed as a separate unit or as part of a modular set of two or more units. This product is notable for its modern design, for its syn- thesis of modern technologies and high quality materials, as well as for its simple and easy assembly and operation. Well tested development allied to intensive quality control assures that these boilers are safe and reliable. A triple-pass flue gas flow system is the foundation for their low energy con- sumption. A wide range of automatic control devices, delivered as additional equipment, enables the customer to benefit from a fully automatic direct or remote controlled heating center.

PRODUCT CHARACTERISTICS

EFFECTIVE

Built-in turbulators allow better heat trans- fer from flue gas to boiler water.

REGULATION

The basic boiler control operates by the operation of a two-burner burner according to the boiler’s default boiler temperature.

ISOLATION

A special feature is the exceptional ther- mal insulation of the boiler.

INSTALLATION

Delivered in parts that allows easy transportation and installation of the boiler.
Hot water boiler for central heating systems with a triple-pass flue gas flow sys- tem (heat output range 0,8-2,5 MW). Economical and ecologically attractive, with high efficiency and low NOx content . A maximum operating temperature of 110°C enables use as a source of heat for manufacturing and processing. Maximum operating pressure of the boiler is 6 bar, which enables installation into heating systems for tall buildings. Built in turbulators enable better heat transfer from flue gas to the boiler water, better regulation of gas flows in the combustion chamber, better regulation of the output temperature of flue gas, i.e. high quality balancing between the func- tions of the boiler, burner and chimney. A large volume of water in the boiler reduces the number of start ups, prolongs the life of the burner and saves energy. Good design and material choice assure extremely low start-up condensation. All connections are installed on the upper side of the unit, enabling simple assembly.
The boiler is delivered with thermal control installed together with connections for an external temperature thermostat, which enables fully automatic regulation of the heating system. A special feature is the high performance heat insulation. The blank door of the boiler has prepared mounting holes, enabling attachment of any kind of burner. The body of the boiler is delivered separately from the casing with thermal insulation which allows easier transportation and assembly. 90° right side and left side opening of the boiler door enables easy cleaning. The boiler is tested and certified at the Faculty of Engineering in Zagreb and manufactured in accordance with ISO 9001.

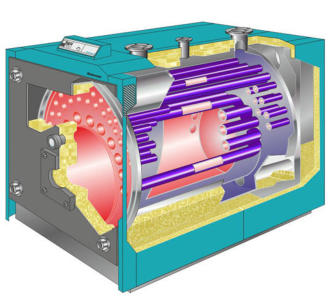

Oil and Gas boilers EKO-CUP V3 (600-1500 kW) and EKO-CUP SV3 (2500 kW) Oil and Gas boilers EKO-CUP V3 (600-1500 kW) and EKO-CUP SV3 (2500 kW)

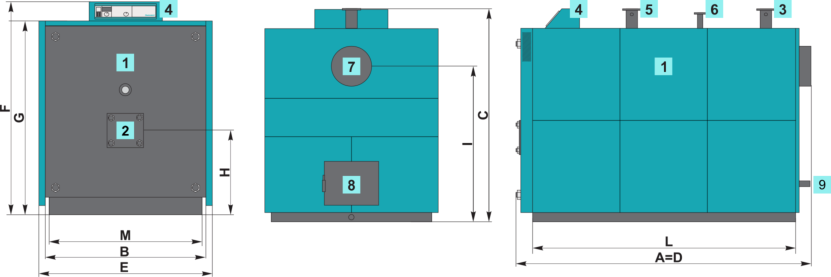

Boiler EKO-CUPV3/SV3
Blind panel
Boiler water inlet
Boiler regulation
Boiler water outlet
Safety line
Boiler flue gas exhaust
Opening for cleaning
Filling / Draining
9

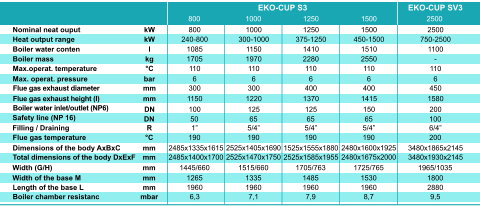

EKO-CUP S3
800
1000
1250
1500
2500
Nominal neat ouput
Heat output range
Boiler water conten
Boiler mass
Max.operat. temperature
Max. operat. pressure
Flue gas exhaust diameter
Flue gas exhaust height (I)
Boiler water inlet/outlet (NP6)
Safety line (NP 16)
Filling / Draining
Flue gas temperature
Dimensions of the body AxBxC
Total dimensions of the body DxExF
Width (G/H)
Width of the base M
Length of the base L
Boiler chamber resistanc
kW
kW
l
kg
°C
bar
mm
mm
DN
R
°C
mm
mm
mm
mm
mm
mbar
800
240-800
1085
1705
110
6
300
1150
100
50
1”
190
2485x1335x1615
2485x1400x1700
1445/660
1265
1960
6,3
1000
300-1000
1150
1970
110
6
300
1220
125
65
5/4”
190
1515/660
1335
1960
7,1
1250
375-1250
1410
2280
110
6
400
1370
125
65
5/4”
190
1705/763
1485
1960
7,9
1500
450-1500
1510
2550
110
6
400
1415
150
65
5/4”
190
1725/765
1530
1960
8,7
2500
750-2500
1100
-
110
6
450
1580
200
100
6/4”
200
1965/1035
1800
2880
9,5
EKO-CUP SV3

Delivery of EKO-CUP M3

Body of the with casing and basic boiler controller, cleaning set.

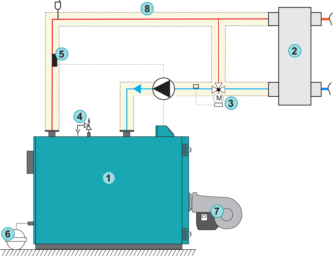

Basically diagram of connection to hy-

deaulic separator with basic boiler

control:

1. Boiler EKO-CUP S3 2. Hydraulic separator 3. Motor operated 3-way mixing valve with SBE CRA controller (60°C) 4. Tested safety valve 5. Heat pump thermostat 6. Expansion vessel 7. Oil/gas burner 8. Thermal pipe insulation
DN
2525x1405x1690
2525x1470x1750
1525x1555x1880
2525x1585x1955
2480x1600x1925
2480x1675x2000
3480x1865x2145
3480x1930x2145
Contact phone: +371 28818088, +371 29149923 E-mail: info@centrometal.lv Homepage: www.centrometal.lv
PRODUCT CHARACTERISTICS Delivery of EKO-CUP M3 Basically diagram of connection to hydeaulic separator with basic boiler control:

Oil and Gas boilers EKO-CUP V3 and EKO-CUP SV3

EKO-CUP V3 steel hot water boilers (heat output range 0,8-1,5 MW) and EKO-CUP SV3 (heat output range 1,5- 2,5MW) are engineered to meet heating requirements in middle sized or large premises, or to provide the heat source for manufacturing or processing. This boiler can be installed as a separate unit or as part of a modular set of two or more units. This product is notable for its modern design, for its synthesis of modern technolo- gies and high quality materials, as well as for its simple and easy assembly and operation. Well tested develop- ment allied to intensive quality control assures that these boilers are safe and reliable. A triple-pass flue gas flow system is the foundation for their low energy consumption. A wide range of automatic control devices, delivered as additional equipment, en- ables the customer to benefit from a fully automatic direct or remote controlled heating center.
PRODUCT CHARACTERISTICS
EFFECTIVE Built-in turbulators allow better heat trans- fer from flue gas to boiler water.
REGULATION The basic boiler control operates by the operation of a two-burner burner according to the boiler’s default boiler temperature.
ISOLATION A special feature is the exceptional ther- mal insulation of the boiler.
INSTALLATION Delivered in parts that allows easy transportation and installation of the boiler.
Hot water boiler for central heating systems with a triple- pass flue gas flow system (heat output range 0,8-2,5 MW). Economical and ecologically attractive, with high effi- ciency and low NOx content . A maximum operating temperature of 110°C enables use as a source of heat for manufacturing and processing. Maximum operating pressure of the boiler is 6 bar, which enables installation into heating systems for tall buildings. Built in turbulators enable better heat transfer from flue gas to the boiler water, better regulation of gas flows in the combustion chamber, better regulation of the output temperature of flue gas, i.e. high quality balancing be- tween the functions of the boiler, burner and chimney. A large volume of water in the boiler reduces the number of start ups, prolongs the life of the burner and saves energy. Good design and material choice assure extremely low start-up condensation. All connections are installed on the upper side of the unit, enabling simple assembly. The boiler is delivered with thermal control installed to- gether with connections for an external temperature ther- mostat, which enables fully automatic regulation of the heating system. A special feature is the high performance heat insulation. The blank door of the boiler has prepared mounting holes, enabling attachment of any kind of burner. The body of the boiler is delivered separately from the casing with thermal insulation which allows easier trans- portation and assembly. 90° right side and left side opening of the boiler door en- ables easy cleaning. The boiler is tested and certified at the Faculty of Engineering in Zagreb and manufactured in accordance with ISO 9001.
Oil and Gas boilers EKO-CUP V3 (600-1500 kW) and EKO-CUP SV3 (2500 kW) Oil and Gas boilers EKO-CUP V3 (600-1500 kW) and EKO-CUP SV3 (2500 kW)
Boiler EKO-CUPV3/SV3
Blind panel
Boiler water inlet
Boiler regulation
Boiler water outlet
Safety line
Boiler flue gas exhaust
Opening for cleaning
Filling / Draining
9
Delivery of EKO-CUP M3 Body of the with casing and basic boiler controller, cleaning set.
Basically diagram of connection to hydeaulic separator with basic boiler control:
1. Boiler EKO-CUP S3 2. Hydraulic separator 3. Motor operated 3-way mixing valve with SBE CRA controller (60°C) 4. Tested safety valve 5. Heat pump thermostat 6. Expansion vessel 7. Oil/gas burner 8. Thermal pipe insulation
EKO-CUP S3 800 1000 1250 1500 2500 Nominal neat ouput Heat output range  Boiler water conten Boiler mass  Max.operat. temperature Max. operat. pressure  Flue gas exhaust diameter  Flue gas exhaust height (I) Boiler water inlet/outlet (NP6) Safety line (NP 16) Filling / Draining Flue gas temperature  Dimensions of the body AxBxC Total dimensions of the body DxExF   Width (G/H) Width of the base M Length of the base L Boiler chamber resistanc kW kW l kg °C bar mm mm DN R °C mm mm mm mm mm mbar 800 240-800 1085 1705 110 6 300 1150 100 50 1” 190 2485x1335x1615 2485x1400x1700 1445/660 1265 1960 6,3 1000 300-1000 1150 1970 110 6 300 1220 125 65 5/4” 190 1515/660 1335 1960 7,1 1250 375-1250 1410 2280 110 6 400 1370 125 65 5/4” 190 1705/763 1485 1960 7,9 1500 450-1500 1510 2550 110 6 400 1415 150 65 5/4” 190 1725/765 1530 1960 8,7 2500 750-2500 1100 - 110 6 450 1580 200 100 6/4” 200 1965/1035 1800 2880 9,5 EKO-CUP SV3 DN 2525x1405x1690 2525x1470x1750 1525x1555x1880 2525x1585x1955 2480x1600x1925 2480x1675x2000 3480x1865x2145 3480x1930x2145 Delivery of EKO-CUP M3 Basically diagram of connection to hydeaulic separator with basic boiler control:
Contact phone: +371 28818088, +371 29149923 E-mail: info@centrometal.lv
HEATING TECHNIQUE
Oil and Gas boilers EKO- CUP V3 and EKO-CUP SV3
Contact phone: +371 28818088, +371 29149923 E-mail: info@centrometal.lv Homepage: www.centrometal.lv
*The internal diameter and height of the chimney must be strictly in line with the boiler's nominal capacity. It must comply with all national regulatory documents and manufacturer's recommendations.
