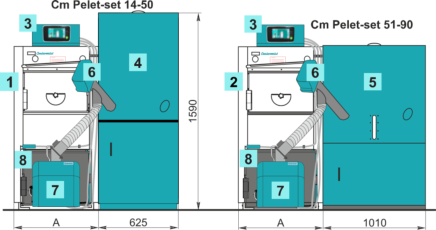

Boiler (ECO-CK P, ECO-CKB P);
Boiler (EKO-CK P 70, 90, 110);
Digital control unit;
Pellet tank CPSP;
Pellet tank CPSP800;
Pellet transporter CPPT;
Pellet burner CPPL;
Pellet burner set / for bottom boiler door;
HEATING TECHNIQUE
.png)
Central heating equipment is designed for attaching to new appropriately specified
boilers and already inbuild boilers such as EKO-CK P and EKO-CKB P(nominal heat
output from 14 to 90 kW) or EKO-CK and EKO-CKB (nominal heat output power 14
to 50 kW). The specialIty of model “touch” is digital control color touch screen. The
Cm Pelet-set and the boiler together make a functional unit, i.e. a mini heating sys-
tem for pellet firing.
The automatic functioning of such a mini heating system offers a high level of conve-
nience and makes them suitable for a wide range of users. Izrađena je u skladu s
normom EN 303-5 i ISO 9001. Pellet is a renewable fuel and ecologically very
acceptable
TOUCH SCREEN
The boiler is controlled by digital touchscreen controller.IGNITION
The fan and the electric heater installed inside the burner, digitally regulated automatically fires the pellets and keeps the fire in.SUITABLE FOR THE ENVIRONMENT
Low emission of harmful compounds in the flue gases.PRODUCT CHARACTERISTICS:
CLASS 5
Cm Pelet set – touch belong to 5th class of boiler standard.

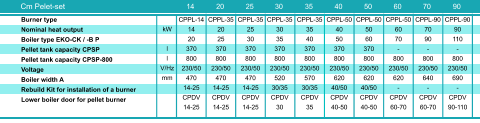

BASIC DIMENSIONS:
Cm Pelet-set
14
Burner type
Nominal heat output
Boiler type EKO-CK / -B P
Pellet tank capacity CPSP
Pellet tank capacity CPSP-800
Voltage
Boiler width A
Rebuild Kit for installation of a burner
Lower boiler door for pellet burner
kW
l
l
V/Hz
mm
CPPL-14
14
20
370
800
230/50
470
14-25
CPDV
14-25
20
CPPL-35
20
25
370
800
230/50
470
14-25
CPDV
14-25
25
CPPL-35
25
30
370
800
230/50
470
14-25
CPDV
14-25
30
CPPL-35
30
35
370
800
230/50
520
30/35
CPDV
30
35
CPPL-35
35
40
370
800
230/50
570
30/35
CPDV
35
40
CPPL-50
40
50
370
800
230/50
620
40/50
CPDV
40-50
50
CPPL-50
50
60
370
800
230/50
620
40/50
CPDV
40-50
60
CPPL-50
60
70
-
800
230/50
620
-
CPDV
60-70
70
CPPL-90
70
90
-
800
230/50
640
-
CPDV
60-70
90
CPPL-90
90
110
-
800
230/50
690
-
CPDV
90-110
•
CLASS 5.
•
The Cm Pelet-set is delivered ready prepared for integration with the boilers EKO-CK P and EKO-CKB P with an nominal heat output from 14
to 90 kW or EKO-CK and EKO-CKB with an nominal heat output from 14 to 50 kW.
•
Together with the boiler it creates a functional unit, a mini heating system for pellet firing.
•
Multifunctional digital control with color touch screen display regulates the boiler function and can direct 5 pumps.
•
It is possible to connect the mini heating system directly to heating system or through accumulation tank (CAS) with a minimum volume of 10
l/kW and 3-way thermal valve on 60°C or motor powered 3-way mixing valve..
•
The fan and the electric heater installed inside the burner, digitally regulated,automatically fires the pellets and keeps the fire in.
•
Cleaning, depending on the power of the boiler and the quality of pellets, after one consumed container (200/400 kg) lasts 5 minutes.
•
Pellets container (volume 370/800 l) is a constituent part of the system and it is being filled from the upper side, according to need.
•
It is possible to install equipment for automatic supply of pellets from a bigger tank through flexible pipes up to 10 metres in distance and up
to 4 meters in height, exclusively for ENPlus A1 and DINplus pellets.
•
It is possible to install a flap on the burner fan to prevent air from circulating through the boiler when the burner is not working.
•
It is possible to install air-cleaning of the burner.
•
Option to link several units in a cascade.
•
It is delivered dismantled which makes it easier to transport and house.
_automatic.png)
FUEL CHARACTERISTICS – WOOD PELLET:
•
Wood pellet is a renewable fuel, and therefore ecologically acceptable.
•
It is made out of wood bio-mass scraps extruded into pellets by special machinery.
•
Pellets are delivered in various ways: in bags (15 kg or 1000 kg), or as bulk into large, possibly underground, storage tanks (4 – 15 m3) or
into basement spaces or sheds.
•
Recommended specification for pellets for Cm Pelet-set feeding:
•
– heating value >= 4,9 kWh/kg (17,5 MJ/kg)
•
– diameter = 6 mm
•
– max. length = 50 mm
•
– max. humidity = 12%
•
– max. ash = 1,5%

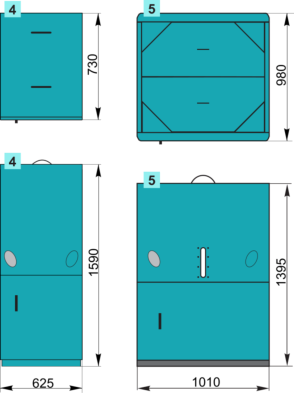

BASIC PARTS AND ADDITIONAL EQUIPMENT:
Contact phone: +371 28818088, +371 29149923
E-mail: info@centrometal.lv
Homepage: www.centrometal.lv

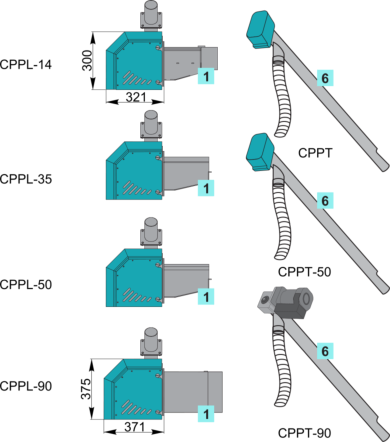

Pellet burner
Digital controller
Set for pellet burner installation* **
or lower boiler door with turbulators

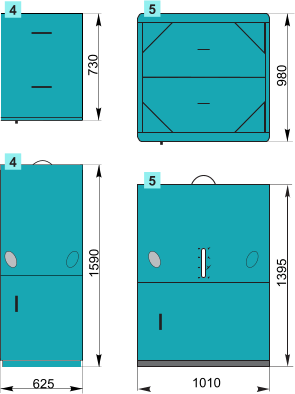

Pellet tank CPSP
Pellet tank CPSP 800
Feeder screw
Basic parts:
*
**
* New models of boilers (must be
added pellet burner bracket on
existing lower boiler doors)
** The old models of boilers
(changing the lower boiler door)
Additional equipment:
Burner with fan flap
Air-cleaning of burner (using compressed air) CVT vacuum pellet supply:

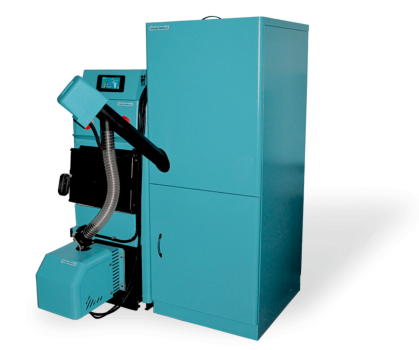

Cm Pelet set - touch (14–90 kW)
Boiler (ECO-CK P, ECO-CKB P);
Boiler (EKO-CK P 70, 90, 110);
Digital control unit;
Pellet tank CPSP;
Pellet tank CPSP800;
Pellet transporter CPPT;
Pellet burner CPPL;
Pellet burner set / for bottom boiler door;
Central heating equipment is designed for attaching to new appro-
priately specified boilers and already inbuild boilers such as EKO-
CK P and EKO-CKB P(nominal heat output from 14 to 90 kW) or
EKO-CK and EKO-CKB (nominal heat output power 14 to 50 kW).
The specialIty of model “touch” is digital control color touch
screen. The Cm Pelet-set and the boiler together make a func-
tional unit, i.e. a mini heating system for pellet firing.
The automatic functioning of such a mini heating system offers a
high level of convenience and makes them suitable for a wide
range of users. Izrađena je u skladu s normom EN 303-5 i ISO
9001. Pellet is a renewable fuel and ecologically very acceptable
TOUCH SCREEN
The boiler is controlled by digital touchscreen
controller.
IGNITION
The fan and the electric heater installed inside the
burner, digitally regulated automatically fires the
pellets and keeps the fire in.
SUITABLE FOR THE ENVIRONMENT
Low emission of harmful compounds in the flue
gases.
PRODUCT CHARACTERISTICS
CLASS 5
Cm Pelet set – touch belong to 5th class of boiler
standard.
BASIC DIMENSIONS:
•
CLASS 5.
•
The Cm Pelet-set is delivered ready prepared for integration
with the boilers EKO-CK P and EKO-CKB P with an nominal
heat output from 14 to 90 kW or EKO-CK and EKO-CKB with an
nominal heat output from 14 to 50 kW.
•
Together with the boiler it creates a functional unit, a mini heat-
ing system for pellet firing.
•
Multifunctional digital control with color touch screen display
regulates the boiler function and can direct 5 pumps.
•
It is possible to connect the mini heating system directly to heat-
ing system or through accumulation tank (CAS) with a minimum
volume of 10 l/kW and 3-way thermal valve on 60°C or motor
powered 3-way mixing valve..
•
The fan and the electric heater installed inside the burner, digi-
tally regulated,automatically fires the pellets and keeps the fire
in.
•
Cleaning, depending on the power of the boiler and the quality
of pellets, after one consumed container (200/400 kg) lasts 5
minutes.
•
Pellets container (volume 370/800 l) is a constituent part of the
system and it is being filled from the upper side, according to
need.
•
It is possible to install equipment for automatic supply of pellets
from a bigger tank through flexible pipes up to 10 metres in dis-
tance and up to 4 meters in height, exclusively for ENPlus A1
and DINplus pellets.
•
It is possible to install a flap on the burner fan to prevent air
from circulating through the boiler when the burner is not
working.
•
It is possible to install air-cleaning of the burner.
•
Option to link several units in a cascade.
•
It is delivered dismantled which makes it easier to transport and
house.
FUEL CHARACTERISTICS – WOOD PELLET:
•
Wood pellet is a renewable fuel, and therefore ecologically
acceptable.
•
It is made out of wood bio-mass scraps extruded into pellets by
special machinery.
•
Pellets are delivered in various ways: in bags (15 kg or 1000
kg), or as bulk into large, possibly underground, storage tanks
(4 – 15 m3) or into basement spaces or sheds.
•
Recommended specification for pellets for Cm Pelet-set
feeding:
•
– heating value >= 4,9 kWh/kg (17,5 MJ/kg)
•
– diameter = 6 mm
•
– max. length = 50 mm
•
– max. humidity = 12%
•
– max. ash = 1,5%
BASIC PARTS AND ADDITIONAL EQUIPMENT
Pellet burner
Digital controller
Set for pellet burner installation* ** or lower boiler door with turbulators
Pellet tank CPSP
Pellet tank CPSP 800
Feeder screw
Basic parts:
*
**
* New models of boilers (must be added pellet burner bracket on existing
lower boiler doors)
** The old models of boilers (changing the lower boiler door)
Additional equipment:
Burner with fan flap
Air-cleaning of burner (using compressed air) CVT vacuum pellet supply:
Contact phone: +371 28818088, +371 29149923
E-mail: info@centrometal.lv
HEATING TECHNIQUE
Cm Pelet set - touch (14–90
kW)
Contact phone: +371 28818088, +371 29149923
E-mail: info@centrometal.lv
Homepage: www.centrometal.lv
*The internal diameter and height of the chimney must be strictly in
line with the boiler's nominal capacity. It must comply with all
national regulatory documents and manufacturer's
recommendations.
