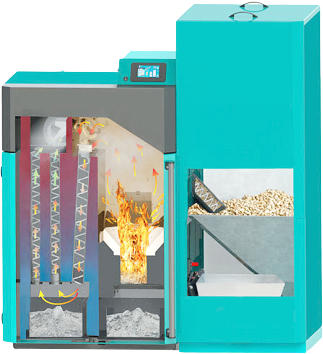

Pel-Tec - high quality steel pellet boilers. Boiler built-in pellet burner with automatic ignition and automatic self-cleaning function for excellent boiler operation. The auto- matic flue gas heat exchanger cleaning function ensures even heat exchange and higher boiler efficiency. Built-in automatic ash cleaning. The multifunctional boiler control unit in the standard package ensures uninterrupted operation of the boiler as well as controls the amount of pellets in the bunker. The built-in backflow protection ensures the proper operation. Characteristics of Pel-Tec boilers: • Pel-Tec central heating pellet boiler with built-in burner and nominal heat capac- ity of 12, 24, 36, 48, 69 and 96 kW • High boiler efficiency and low maintenance requirements • Low emissions and harmful emissions • Modulating boiler operation • Automatic self-cleaning for burner grille and flue gas channels • Flue gas temperature sensor and level sensor for pellet bunker • Built-in backflow protection with 4-way valve • Multifunctional digital controller with touch-screen panel • Accessories: room thermostat, GSM alarm module for the boiler and pellet ` bunker, automatic pellet filling from another pellet storage (additional equipment) • Lambda probe • WiFi module.

PelTec

*The internal diameter and height of the chimney must be strictly in line with the boiler's nominal capacity. It must comply with all national regulatory documents and manufacturer's recommendations.

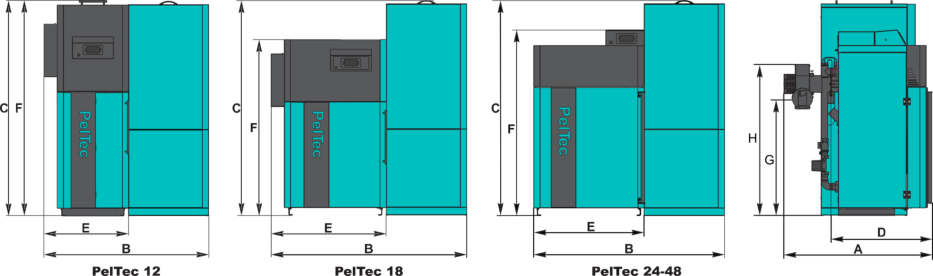

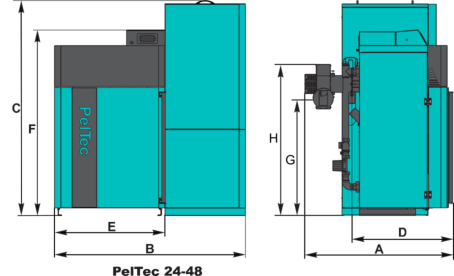

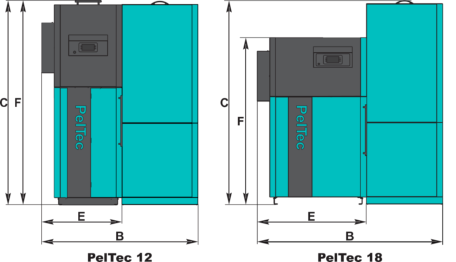

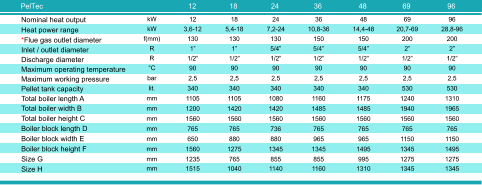

Technical specifications

Nominal heat output Heat power range *Flue gas outlet diameter Inlet / outlet diameter Discharge diameter Maximum operating temperature Maximum working pressure Pellet tank capacity Total boiler length A Total boiler width B Total boiler height C Boiler block length D Boiler block width E Boiler block height F Size G Size H

kW kW f(mm) R R °C bar lit. mm mm mm mm mm mm mm mm

Contact phone: +371 28818088, +371 29149923 E-mail: info@centrometal.lv Homepage: www.centrometal.lv

SUITABLE FOR THE ENVIRONMENT

Low emission of harmful compounds in the flue gases.

EFFICIENT

High boiler efficiency and low maintenance requirements.

AUTOMATIC MAINTENANCE

Automatic cleaning of the burner grid and flue passages.

EXTENSIONS

Additional equipment for specific tasks (wi-fi, GSM, room regulation etc..)

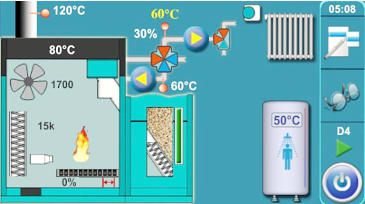

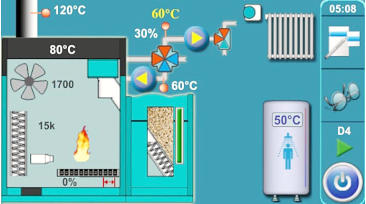

TOUCH SENSITIVE SCREEN:

• Enables direct interaction with the content shown on the screen. • Easy operation of the boiler. • It can handle a direct heating circuit and the circuit of sanitary water.

DELIVERY, OBLIGATORY AND OPTIONAL ADDITIONAL EQUIPMENT:

Boiler with casing and control, pre-wired, with 3 additional sensors, pump group with pump and motor powered mixing valve, flue fan, grate and fluegas heatexchanger cleaning mechanism, cleaning set (scraper, brush, poker, set holder). Pellet container in cardboard packaging + transporter

Delivery:

Connection to one circuit heating system and domestic water heating (DHW)

DHW tank (TB, STEB…) Room thermostat Pumps for heating circuit and DWH Closed heating system Safety air-vent group (2,5bar) and expansion vessel; Open heating system Open expansion vessel * One of 15 different connection options is shown in the diagram

GSM module // CAL // CMNET // WiFi module

SMS or phone call alert about boiler status (errors, warnings) Inquiry about boiler status – operation phase, temperature, by SMS Turning on/off boiler by SMS or through internet Live vizualisation on boiler proceses through internet CAL alarm set (speaker/lamp) Module for error alert by sound or light signal or warnings concerning boiler operation CMNET Cascade manager to control up to 8 boilers in a cascade

CM2K module for controling 2 heating circuits + CSK

Enables steering 2 heating circuits usisng outdoor temperature (control of up to 2 mixing valves and up to 2 pumps) It is possible to connect up to 4 CM2K modules (up to 8 heating circuits) It is possible to connect up to 2 CSK room correctors per one module CSK Room corrector

CVT vacuum pellets supply

Vacuum pellets supply with mole from a room (pellets storage) Vacuum pellets supply from a large tank (CentroPelet box up to 3,4m3) Vacuum pellets supply by screw feeder from a storage room

HEATING TECHNIQUE

18 5,4-18 130 1” 1/2” 90 2,5 340 1105 1420 1560 765 880 1275 765 1040

24 7,2-24 130 5/4” 1/2” 90 2,5 340 1080 1420 1560 736 880 1345 855 1140

36 10,8-36 150 5/4” 1/2” 90 2,5 340 1160 1485 1560 765 965 1345 855 1160

48 14,4-48 150 5/4” 1/2” 90 2,5 340 1175 1485 1560 765 965 1495 995 1310

69 20,7-69 200 2” 1/2” 90 2,5 530 1240 1940 1560 765 1150 1345 1275 1345

96 28,8-96 200 2” 1/2” 90 2,5 530 1310 1965 1560 765 1150 1495 1275 1345

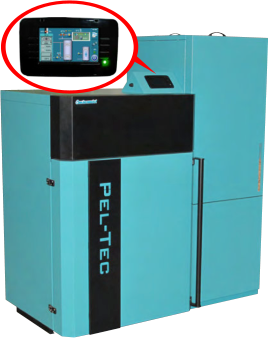

PelTec Heating pellet boiler 12-96kW

Cleaning of pellet heating boiler PEL-TEC 12-96kW

Pel-Tec - high quality steel pellet boilers. Boiler built-in pellet burner with automatic ignition and automatic self-cleaning function for excellent boiler operation. The automatic flue gas heat exchanger cleaning func- tion ensures even heat exchange and higher boiler efficiency. Built-in automatic ash cleaning. The multifunctional boiler control unit in the standard package ensures uninterrupted operation of the boiler as well as controls the amount of pellets in the bunker. The built-in backflow protection ensures the proper operation. Characteristics of Pel-Tec boilers: • Pel-Tec central heating pellet boiler with built-in burner and nominal heat capacity of 12, 24, 36, 48, 69 and 96 kW • High boiler efficiency and low maintenance requirements • Low emissions and harmful emissions • Modulating boiler operation • Automatic self-cleaning for burner grille and flue gas channels • Flue gas temperature sensor and level sensor for pellet bunker • Built-in backflow protection with 4-way valve • Multifunctional digital controller with touch-screen panel • Accessories: room thermostat, GSM alarm module for the boiler and pellet ` bunker, automatic pellet filling from another pellet storage (additional equipment) • Lambda probe • WiFi module.
