Oil and Gas boilers EKO-CUP S3 (125-600kW)
• EKO-CUP S3 steel hot water boilers (heat output range 125 – 600 kW) are engi- neered to meet heating requirements in the middle to large premises, as well as to be the heat source for manufacturing and processing. • The boiler can be configured as a stand alone unit or as a series of modular units. • This product is a synthesis of modern technologies and is presented in high qual- ity materials ready for simple and easy assembly and operation. The fully devel- oped and tested technical solutions applied assure these boilers are safe and reliable. • The triple-pass flue gas flow system is a key element of their low energy consumption. • The wide range of available control devices, as additional equipment, enables the customer to benefit from a fully automatic direct or remote controlled heating center.

PRODUCT CHARACTERISTICS:

EFFECTIVE

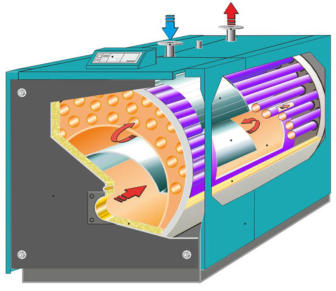

Built-in turbulators allow better heat trans- fer from flue gas to boiler water.

REGULATION

The basic boiler control operates by the operation of a two-burner burner according to the boiler’s default boiler temperature.

ISOLATION

A special feature is the exceptional ther- mal insulation of the boiler.

INSTALLATION

Delivered in parts that allows easy transportation and installation of the boiler.

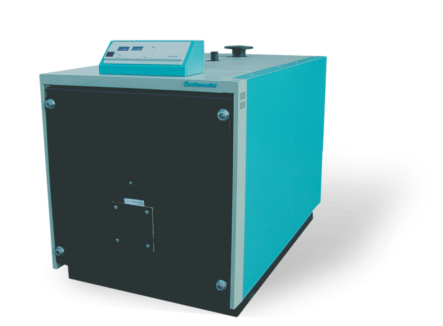

EKO-CUP S3
• Hot water boilers for central heating systems a with triple-pass flue gas flow system (heat output range 125-600 kW). • It is economical and ecologically acceptable, with high efficiency and low NOx levels. • Max. operating boiler pressure is 3 bar (standard) or 6 bar (custom made) and max. operating temperature is 90°C (standard), 100°C or 105°C (cus- tom made).. • Built in turbulators enable better heat flow from flue gas to water, better regulation of gas flow in the combustion chamber, better regulation of the output temperature of flue gas, i.e. high quality balancing of the functions of the boiler, burner and chimney. • A large volume of water in the boiler reduces the number of start ups, pro- longs the life of the burner and saves energy. • Design and construction provide extremely low start-up condensation. • All connections are mounted on the upper side of the unit enabling simple assembly. • The boiler is delivered with plugged in thermic regulation together with con- necting points for an outdoor temperature controller, which enabling fully automatic operation of the heating system.
• Basic boiler controller controls the operation of a two-stage burner according to set values for boiler temperature. • A special feature is the high performance thermal insulation. • Boiler door with blind panel is adequate for installation of all fan burners available on the market and can be opened both to the left and right for 90° which enables simple and fast boiler cleaning. • The body of the boiler is delivered separately from the casing and thermal insulation which enables transportation and assembly.
EKO-CUP S3
Boiler EKO-CUP S3
Blind panel for installation of fan burner
Boiler water inlet
Boiler water outlet
Safety line
Boiler flue gas exhaust
Opening for cleaning
Filling / Draining
Boiler regulation
9
EKO-CUP S3
125
160
240
320
400
Heat output range
Boiler water content
Boiler mass
Max.operat. temperature
Max. operat. pressure
Flue gas exhaust diameter / height (I)
Burner opening
Boiler chamber resistance
Boiler water inlet/outlet connection (NP6)
Filling / Draining
Safety line
Flue gas temperature
Length of the body A
Width of the body B
Height of the body C
Total length D
Total width E
Total height F
Height G
Heights (H / K)
kW
l
kg
°C
bar
mm
Ø mm
mbar
R
R
°C
mm
mm
mm
mm
mm
mm
mm
mm
37,5-125
225
445
90/100/105
3-6
180/700
130
1,7
R2”
3/4”
1”
140
1630
780
970
1660
780
1080
910
360/175
48-160
290
563
90/100/105
3-6
200/790
130
2,5
DN 50
3/4”
1”
140
1475
945
1110
1510
945
1195
1040
440/175
72-240
390
673
90/100/105
3-6
200/790
170
2,6
DN 65
3/4”
5,4”
140
1890
945
1110
1930
945
1210
1040
440/175
96-320
465
867
90/100/105
3-6
250/890
170
2,8”
DN 80
3/4”
6,4”
140
1890
1050
1225
1930
1050
1320
1150
440/175
120-400
615
1066
90/100/105
3-6
250/970
170
3,5
DN 80
1”
6,4”
140
1945
1150
1355
1985
1150
1420
1250
450/185
460
530
600
138-460
735
1184
90/100/105
3-6
250/970
220
4,0
DN 80
1”
6,4”
140
2245
1150
1355
2285
1150
1420
1250
450/185
168-530
865
1418
90/100/105
3-6
300/1062
220
4,3
DN 80
1”
6,4”
140
2245
1250
1460
2285
1250
1520
1350
475/185
180-600
970
1515
90/100/105
3-6
300/1062
220
4,9
DN 100
1”
6,4”
140
2495
1250
1455
2530
1250
1520
1350
480/185
Basically diagram of connection to hydeaulic separator with basic boiler control:
Delivery of EKO-CUP M3

Delivery of EKO-CUP M3

Body of the with casing and basic boiler controller, cleaning set.

Basically diagram of connection to

hydeaulic separator with basic

boiler control:

1. Boiler EKO-CUP S3 2. Hydraulic separator 3. Motor operated 3-way mixing valve with SBE CRA controller (60°C) 4. Tested safety valve 5. Heat pump thermostat 6. Expansion vessel 7. Oil/gas burner 8. Thermal pipe insulation
Contact phone: +371 28818088, +371 29149923 E-mail: info@centrometal.lv Homepage: www.centrometal.lv
Oil and Gas boilers EKO-CUP S3 (125-600kW) PRODUCT CHARACTERISTICS

Oil and Gas boilers EKO-CUP S3 (125-600kW)

Oil and Gas boilers EKO-CUP S3 (125-600kW)
• EKO-CUP S3 steel hot water boilers (heat output range 125 – 600 kW) are engineered to meet heating requirements in the middle to large premises, as well as to be the heat source for manufacturing and processing. • The boiler can be configured as a stand alone unit or as a se- ries of modular units. • This product is a synthesis of modern technologies and is pre- sented in high quality materials ready for simple and easy as- sembly and operation. The fully developed and tested technical solutions applied assure these boilers are safe and reliable. • The triple-pass flue gas flow system is a key element of their low energy consumption. • The wide range of available control devices, as additional equip- ment, enables the customer to benefit from a fully automatic di- rect or remote controlled heating center.
PRODUCT CHARACTERISTICS:
EFFECTIVE Built-in turbulators allow better heat transfer from flue gas to boiler water.
REGULATION The basic boiler control operates by the opera- tion of a two-burner burner according to the boiler’s default boiler temperature.
ISOLATION A special feature is the exceptional thermal in- sulation of the boiler.
INSTALLATION Delivered in parts that allows easy transporta- tion and installation of the boiler.
EKO-CUP S3
• Hot water boilers for central heating systems a with triple-pass flue gas flow system (heat output range 125-600 kW). • It is economical and ecologically acceptable, with high efficiency and low NOx levels. • Max. operating boiler pressure is 3 bar (standard) or 6 bar (custom made) and max. operating temperature is 90°C (standard), 100°C or 105°C (custom made).. • Built in turbulators enable better heat flow from flue gas to water, better regulation of gas flow in the combustion chamber, better regulation of the output temperature of flue gas, i.e. high quality balancing of the functions of the boiler, burner and chimney. • A large volume of water in the boiler reduces the num- ber of start ups, prolongs the life of the burner and saves energy. • Design and construction provide extremely low start-up condensation. • All connections are mounted on the upper side of the unit enabling simple assembly. • The boiler is delivered with plugged in thermic regula- tion together with connecting points for an outdoor tem- perature controller, which enabling fully automatic operation of the heating system. • Basic boiler controller controls the operation of a two- stage burner according to set values for boiler temperature. • A special feature is the high performance thermal insulation. • Boiler door with blind panel is adequate for installation of all fan burners available on the market and can be opened both to the left and right for 90° which enables simple and fast boiler cleaning. • The body of the boiler is delivered separately from the casing and thermal insulation which enables trans- portation and assembly

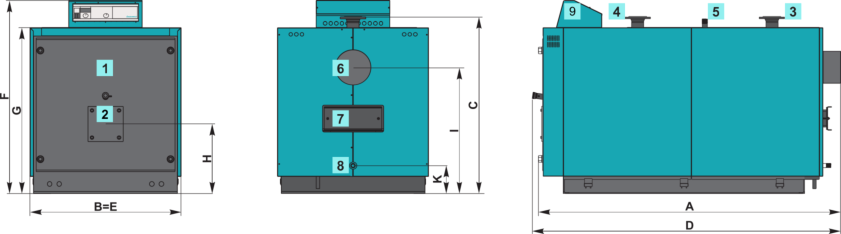

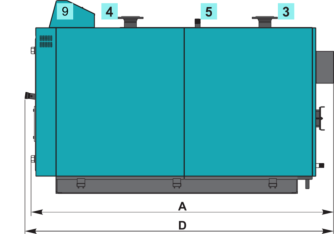

Boiler EKO-CUP S3
Blind panel for installation of fan burner
Boiler water inlet
Boiler water outlet
Safety line
Boiler flue gas exhaust
Opening for cleaning
Filling / Draining
Boiler regulation
9
Basically diagram of connection to hydeaulic separator with basic boiler control:
Delivery of EKO-CUP M3
Delivery of EKO-CUP M3 Body of the with casing and basic boiler controller, cleaning set.
Basically diagram of connection to hydeaulic separator with basic boiler control:
1. Boiler EKO-CUP S3 2. Hydraulic separator 3. Motor operated 3-way mixing valve with SBE CRA controller (60°C) 4. Tested safety valve 5. Heat pump thermostat 6. Expansion vessel 7. Oil/gas burner 8. Thermal pipe insulation
Contact phone: +371 28818088, +371 29149923 E-mail: info@centrometal.lv
HEATING TECHNIQUE
Oil and Gas boilers EKO- CUP S3 (125-600kW)

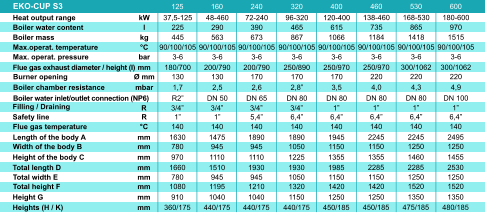

EKO-CUP S3 125 160 240 320 400 Heat output range Boiler water content Boiler mass Max.operat. temperature Max. operat. pressure Flue gas exhaust diameter / height (I) Burner opening Boiler chamber resistance Boiler water inlet/outlet connection (NP6) Filling / Draining Safety line Flue gas temperature Length of the body A Width of the body B Height of the body C Total length D Total width E Total height F Height G Heights (H / K) kW l kg °C bar mm Ø mm mbar R R °C mm mm mm mm mm mm mm mm 37,5-125 225 445 90/100/105 3-6 180/700 130 1,7 R2” 3/4” 1” 140 1630 780 970 1660 780 1080 910 360/175 48-460 290 563 90/100/105 3-6 200/790 130 2,5 DN 50 3/4” 1” 140 1475 945 1110 1510 945 1195 1040 440/175 72-240 390 673 90/100/105 3-6 200/790 170 2,6 DN 65 3/4” 5,4” 140 1890 945 1110 1930 945 1210 1040 440/175 96-320 465 867 90/100/105 3-6 250/890 170 2,8” DN 80 3/4” 6,4” 140 1890 1050 1225 1930 1050 1320 1150 440/175 120-400 615 1066 90/100/105 3-6 250/970 170 3,5 DN 80 1” 6,4” 140 1945 1150 1355 1985 1150 1420 1250 450/185 460 530 600 138-460 735 1184 90/100/105 3-6 250/970 220 4,0 DN 80 1” 6,4” 140 2245 1150 1355 2285 1150 1420 1250 450/185 168-530 865 1418 90/100/105 3-6 300/1062 220 4,3 DN 80 1” 6,4” 140 2245 1250 1460 2285 1250 1520 1350 475/185 180-600 970 1515 90/100/105 3-6 300/1062 220 4,9 DN 100 1” 6,4” 140 2495 1250 1455 2530 1250 1520 1350 480/185
